SEAT FRONT SEAT ASSEMBLY(for GTMC Made Manual Seat) REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during front seat assembly removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced (for HV Model)
Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
Disconnect cable from negative auxiliary battery terminal	Reset back door close position	Power Back Door System	(202111,999999,_59,_111831,_0505274,RM100000001ZMEG,)

Necessary Procedures After Parts Removed/Installed/Replaced (for Gasoline Model)
Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
Disconnect cable from negative auxiliary battery terminal	Reset back door close position	Power Back Door System	(202111,999999,_59,_111831,_0505274,RM100000001ZMEG,)

CAUTION:: ·

Be sure to read Precaution thoroughly before servicing.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM>PRECAUTION202303,999999,_58,_111838,_0499714,RM100000002AQNJ,

·

Wear protective gloves. Sharp areas on the parts may injure your hands.

NOTICE:: If the front seat airbag assembly has been deployed, replace the front seat airbag assembly, separate type front seatback spring assembly, separate type front seatback pad and separate type front seatback cover with the necessary parts in accordance with the extent of the collision damage.

HINT:

When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

for HV Model:

Learning completes when vehicle is driven
Effect/Inoperative Function when Necessary Procedure not Performed	Necessary Procedure	Link
Lane Tracing Assist System	Drive the vehicle straight ahead at 35 km/h (22 mph) or more for 5 seconds or more.	(202111,999999,_95,_111850,_0502173,RM100000001Z92I,)
Pre-collision System		(202111,999999,_95,_111850,_0502173,RM100000001Z92I,)

Learning completes when vehicle is operated normally
Effect/Inoperative Function when Necessary Procedure not Performed	Necessary Procedure	Link
Power Door Lock Control System · Back door opener	Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.	(202111,999999,_58,_111830,_0505351,RM100000001ZMT3,)
Air Conditioning System	After the ignition switch is turned to ON, the servo motor standard position is recognized.	-

for Gasoline Model:

Learning completes when vehicle is driven
Effect/Inoperative Function when Necessary Procedure not Performed	Necessary Procedure	Link
Lane Tracing Assist System	Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 seconds or more.	(202111,999999,_95,_111850,_0502173,RM100000001Z92I,)
Pre-collision System		(202111,999999,_95,_111850,_0502173,RM100000001Z92I,)
Stop and Start System	Idle the engine for approximately 5 to 60 minutes or drive the vehicle until stop and start control is permitted	(202406,999999,_51,_111803,_0509671,RM100000002KOGF,)

Learning completes when vehicle is operated normally
Effect/Inoperative Function when Necessary Procedure not Performed	Necessary Procedure	Link
Power Door Lock Control System · Back door opener	Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.	(202111,999999,_58,_111830,_0505351,RM100000001ZMT3,)
Air Conditioning System	After the ignition switch is turned to ON, the servo motor standard position is recognized.	-

PROCEDURE

Hide Display 1. PRECAUTION

NOTICE:: After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.; Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY202406,999999,_V1,_111780,_0504976,RM100000002MNUD,

Hide Display 58416K 2.REMOVE REAR NO. 2 FLOOR BOARD (for HV Model)

Click hereGeneral>MAINTENANCE>A25D-FXS, A25F-FXS AUXILIARY BATTERY>REMOVAL202406,999999,_V1,_112220,_0503322,RM100000002MSAY_01_0029,

Hide Display 65351A 3.REMOVE BATTERY HOLE COVER (for HV Model)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202406,999999,_58,_111843,_0501311,RM100000002MT6G_02_0243,

Hide Display 4.DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

for M20C-FKS, M20D-FKS: Click hereGeneral>MAINTENANCE>M20C-FKS, M20D-FKS BATTERY>REMOVAL202406,999999,_V1,_112220,_0503321,RM100000002MSAX_01_0013,

for A25D-FXS, A25F-FXS: Click hereGeneral>MAINTENANCE>A25D-FXS, A25F-FXS AUXILIARY BATTERY>REMOVAL202406,999999,_V1,_112220,_0503322,RM100000002MSAY_01_0013,

CAUTION:: Wait at least 60 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

Hide Display 71910A 5.REMOVE FRONT SEAT HEADREST ASSEMBLY

Remove the front seat headrest assembly from the front seat assembly RH.

Hide Display 72123A 6.REMOVE FRONT OUTER SEAT TRACK BRACKET COVER

Operate the seat track adjusting handle and move the front seat assembly RH to the rearmost position.

Disengage the 2 claws to remove the front outer seat track bracket cover.

Hide Display 72127A 7.REMOVE FRONT INNER SEAT TRACK BRACKET COVER

Disengage the 2 claws to remove the front inner seat track bracket cover.

Hide Display 72137T 8.REMOVE REAR OUTER SEAT TRACK BRACKET COVER

Operate the seat track adjusting handle and move the front seat assembly RH to the foremost position.

Disengage the 2 claws and guide to remove the rear outer seat track bracket cover.

Hide Display 72157F 9.REMOVE REAR INNER SEAT TRACK BRACKET COVER

Disengage the 2 claws and guide to remove the rear inner seat track bracket cover.

Hide Display 10.REMOVE FRONT SEAT ASSEMBLY RH

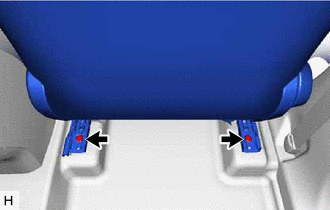

Using a T50 "TORX" socket wrench, remove the 2 bolts on the rear side of the front seat assembly RH.

Operate the seat track adjusting handle and move the front seat assembly RH to the rearmost position.

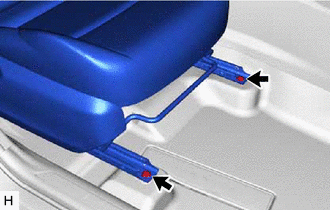

Using a T50 "TORX" socket wrench, remove the 2 bolts on the front side of the front seat assembly RH.

Operate the seat track adjusting handle and move the front seat assembly RH to the center position.

Operate the reclining adjuster release handle and move the seatback to the upright position.

Disconnect the front seat airbag assembly connector under the front seat assembly RH.

NOTICE:: When disconnecting any airbag connector, take care not to damage the airbag wire harness.

HINT:: Refer to How to Connect or Disconnect Airbag Connector.; Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM>HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR202111,999999,_58,_111838,_0499714,RM100000001YZEU,

Disconnect each connector and disengage each clamp under the front seat assembly RH.

Remove the front seat assembly RH.

NOTICE:: Be careful not to damage the vehicle body.
