RM38N0EC _52 Drivetrain _111808 AXLE AND DIFFERENTIAL _0525513 REAR DIFFERENTIAL SIDE GEAR SHAFT OIL SEAL A

AXLE AND DIFFERENTIAL  REAR DIFFERENTIAL SIDE GEAR SHAFT OIL SEAL  REPLACEMENT


CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during rear drive shaft oil seal LH removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure Necessary Procedure Effect/Inoperative Function when Necessary Procedure not Performed Link

*1: Also necessary after performing a tire rotation.

*2: It is not necessary to perform this procedure if the tire pressure warning valve and transmitters are installed to the same location.

*3: The vehicle height changes because of suspension or tire replacement.

Tires
·

Initialization*1*2

·

Tire Position Identification*1*2


Tire Pressure Warning System Refer to Procedures Necessary When Replacing Parts (for Tire Pressure Warning System)
(Click here)
Rear wheel alignment adjustment
·

Perform reset memory

·

Perform "Calibration"


·

DTCs are stored

·

ABS warning light illuminates

·

Slip indicator light illuminates

·

Electronically controlled brake system does not operate correctly


(Click here)
Suspension parts*3 Parking assist ECU initialization Panoramic View Monitor System (Click here)
Rear television camera assembly optical axis (Back camera position setting) Parking Assist Monitor System (Click here)

CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH and LH side.

·

The following procedure is for the LH side.



PROCEDURE

Hide 42340D 2.REMOVE REAR DRIVE SHAFT OIL SEAL LH

a.

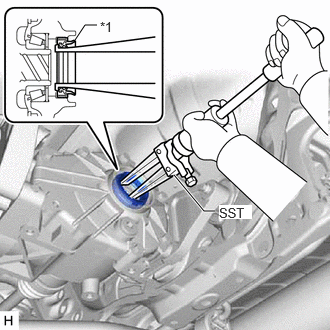

C435845C01
0.781,0.417 0.885,0.26 0.885,0.26 1.01,0.26 true 2.24,2.198 2.125,2.198 2.125,2.198 1.813,1.823 true 2.281,2.135 2.625,2.281 0.344,0.146 10 true SST 1.042,0.198 1.354,0.396 0.313,0.198 10 false *1
*1 Rear Drive Shaft Oil Seal LH


Using SST, tap out the rear drive shaft oil seal LH.

SST
09308-00010

NOTICE:

Be careful not to damage the rear differential carrier sub-assembly.



Hide 42340D 3.INSTALL REAR DRIVE SHAFT OIL SEAL LH

a.

Coat the lip of a new rear drive shaft oil seal LH with MP grease.


b.
C435846C01
1.729,1.406 2.01,0.938 2.01,0.938 2.198,0.938 true 1.156,1.208 0.823,1.208 0.823,1.208 0.823,1.042 true 1.208,0.167 1.521,0.323 0.313,0.156 10 false *a 2.229,0.875 2.583,1.063 0.354,0.188 10 true SST 1.198,1.156 1.458,1.375 0.26,0.219 10 false *1
*1 Rear Drive Shaft Oil Seal LH
*a Depth


Using SST and a hammer, install the rear drive shaft oil seal LH to the rear differential carrier sub-assembly.

SST
09223-00010

Standard Depth:

6.7 to 7.7 mm (0.264 to 0.303 in.)


NOTICE:
·

Tap the oil seal uniformly so that the oil seal is straight.

·

Do not tap the oil seal in too far.
