EXTERIOR PANELS / TRIM BLACK OUT TAPE(for Rear Door) REMOVAL
CAUTION / NOTICE / HINT
The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during black out tape removal/installation are shown below.
| Replaced Part or Performed Procedure | Necessary Procedures | Effect/Inoperative Function When Necessary Procedures are not Performed | Link |
|---|---|---|---|
|
*: Even when not replacing the part, it is necessary to perform the specified necessary procedures after installation. |
|||
| Auxiliary battery terminal is disconnected/reconnected | Reset back door close position | Power Back Door System | ( 202111,999999,_59,_111831,_0505274,RM100000001ZMEG,)
|
·
Rear door glass sub-assembly LH* ·
Rear door glass sub-assembly RH* ·
Rear door glass run LH* ·
Rear door glass run RH* |
Initialize power window control system | ·
Auto up and down function ·
Jam protection function ·
Catch protection function ·
Remote control function ·
Wireless transmitter-linked function ·
Key-linked function ·
Key-off operation function ·
Window open warning function |
(202111,999999,_59,_111844,_0505692,RM100000001ZOBP,)
|
- NOTICE:
-
After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.
- HINT:
-
When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.
- ·
for HV Model:
Items for which learning is completed by driving the vehicle Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link Lane Tracing Assist System Drive the vehicle straight ahead at 35 km/h (22 mph) or more for 5 seconds or more. ( 202111,999999,_95,_111850,_0502173,RM100000001Z92I,)
Pre-collision System
Items for which learning is completed by operating the vehicle normally Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link Power Door Lock Control System
·Back door opener
Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch. ( 202111,999999,_58,_111830,_0505351,RM100000001ZMT3,)
Air Conditioning System After the ignition switch is turned to ON, the servo motor standard position is recognized. -
- ·
for Gasoline Model:
Items for which learning is completed by driving the vehicle Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link Lane Tracing Assist System Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 seconds or more. ( 202111,999999,_95,_111850,_0502173,RM100000001Z92I,)
Pre-collision System Stop and Start System Idle the engine for approximately 5 to 60 minutes or drive the vehicle until stop and start control is permitted ( 202406,999999,_51,_111803,_0509671,RM100000002KOGF,)
Items for which learning is completed by operating the vehicle normally Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link Power Door Lock Control System
·Back door opener
Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch. ( 202111,999999,_58,_111830,_0505351,RM100000001ZMT3,)
Air Conditioning System After the ignition switch is turned to ON, the servo motor standard position is recognized. -
- ·
Use the same procedure for the RH side and LH side.
·The following procedure is for the LH side.
PROCEDURE
58416K
1.REMOVE REAR NO. 2 FLOOR BOARD (for HV Model)
65351A
2.REMOVE BATTERY HOLE COVER (for HV Model)
3.DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
for A25F-FXS, A25D-FXS:
for M20D-FKS, M20C-FKS:
69278C
4.REMOVE REAR DOOR INSIDE HANDLE BEZEL
74222C
5.REMOVE REAR DOOR ARMREST COVER
67604
6.REMOVE REAR DOOR TRIM BOARD SUB-ASSEMBLY
68174A
7.REMOVE REAR DOOR INNER GLASS WEATHERSTRIP
68199
8.REMOVE REAR DOOR REAR BELT SEAL
67842E
9.REMOVE REAR DOOR SERVICE HOLE COVER
67674A
10.REMOVE REAR DOOR FRAME GARNISH
68152C
11.REMOVE REAR DOOR GLASS RUN
67408E
12.REMOVE REAR DOOR WINDOW DIVISION BAR SUB-ASSEMBLY
68124B
13.REMOVE REAR DOOR QUARTER WINDOW GLASS
14.REMOVE HOLE PLUG
68104
15.REMOVE REAR DOOR GLASS SUB-ASSEMBLY
67872
16.DISCONNECT REAR DOOR WEATHERSTRIP
75978H

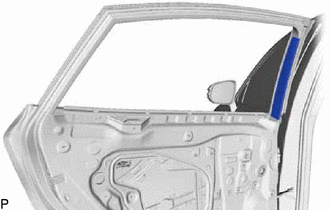

17.REMOVE REAR DOOR LOWER OUTSIDE STRIPE
- HINT:
-
When removing the rear door lower outside stripe, heat the vehicle body and rear door lower outside stripe using a heat light.
| Item | Temperature |
|---|---|
| Rear Door Lower Outside Stripe and Vehicle Body | 40 to 60°C (104 to 140°F) |
- CAUTION:
-
2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b*a Heated Part *b Heat Light
- ·
Do not touch the heat light and heated parts, touching the heat light may result in burns.
·Touching heated parts for a long time may result in burns.
- NOTICE:
-
Do not heat the vehicle body excessively.
Using a heat light, heat the rear door lower outside stripe and vehicle body.
Pull back on one of the ends of the rear door lower outside stripe to remove it.
- HINT:
-
When pulling on the rear door lower outside stripe, pull it parallel to the body.
75988E

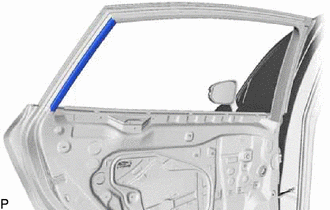

18.REMOVE REAR DOOR OUTSIDE STRIPE
- HINT:
-
When removing the rear door outside stripe, heat the vehicle body and rear door outside stripe using a heat light.
| Item | Temperature |
|---|---|
| Rear Door Outside Stripe and Vehicle Body | 40 to 60°C (104 to 140°F) |
- CAUTION:
-
2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b
*a Heated Part *b Heat Light
- ·
Do not touch the heat light and heated parts, touching the heat light may result in burns.
·Touching heated parts for a long time may result in burns.
- NOTICE:
-
Do not heat the vehicle body excessively.
Using a heat light, heat the rear door outside stripe and vehicle body.
Pull back on one of the ends of the rear door outside stripe to remove it.
- HINT:
-
When pulling on the rear door outside stripe, pull it parallel to the body.
75954A

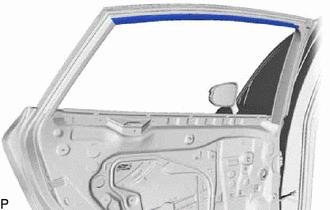

19.REMOVE REAR INNER BLACK OUT TAPE
- HINT:
-
When removing the rear inner black out tape, heat the vehicle body and rear inner black out tape using a heat light.
| Item | Temperature |
|---|---|
| Rear Inner Black Out Tape and Vehicle Body | 40 to 60°C (104 to 140°F) |
- CAUTION:
-
2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b
*a Heated Part *b Heat Light
- ·
Do not touch the heat light and heated parts, touching the heat light may result in burns.
·Touching heated parts for a long time may result in burns.
- NOTICE:
-
Do not heat the vehicle body excessively.
Using a heat light, heat the rear inner black out tape and vehicle body.
Pull back on one of the ends of the rear inner black out tape to remove it.
- HINT:
-
When pulling on the rear inner black out tape, pull it parallel to the body.
