EXTERIOR PANELS / TRIM BLACK OUT TAPE(for Front Door) REMOVAL
CAUTION / NOTICE / HINT
The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during black out tape removal/installation are shown below.
| Replaced Part or Performed Procedure | Necessary Procedures | Effect/Inoperative Function When Necessary Procedures are not Performed | Link |
|---|---|---|---|
|
*: Even when not replacing the part, it is necessary to perform the specified necessary procedures after installation. |
|||
| Auxiliary battery terminal is disconnected/reconnected | Reset back door close position | Power Back Door System | ( 202111,999999,_59,_111831,_0505274,RM100000001ZMEG,)
|
·
Front door glass sub-assembly LH* ·
Front door glass sub-assembly RH* ·
Front door glass run LH* ·
Front door glass run RH* |
Initialize power window control system | ·
Auto up and down function ·
Jam protection function ·
Catch protection function ·
Remote control function ·
Wireless transmitter-linked function ·
Key-linked function ·
Key-off operation function ·
Window open warning function |
(202111,999999,_59,_111844,_0505692,RM100000001ZOBP,)
|
- NOTICE:
-
After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.
- HINT:
-
When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.
- ·
for HV Model:
Items for which learning is completed by driving the vehicle Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link Lane Tracing Assist System Drive the vehicle straight ahead at 35 km/h (22 mph) or more for 5 seconds or more. ( 202111,999999,_95,_111850,_0502173,RM100000001Z92I,)
Pre-collision System
Items for which learning is completed by operating the vehicle normally Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link Power Door Lock Control System
·Back door opener
Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch. ( 202111,999999,_58,_111830,_0505351,RM100000001ZMT3,)
Air Conditioning System After the ignition switch is turned to ON, the servo motor standard position is recognized. -
- ·
for Gasoline Model:
Items for which learning is completed by driving the vehicle Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link Lane Tracing Assist System Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 seconds or more. ( 202111,999999,_95,_111850,_0502173,RM100000001Z92I,)
Pre-collision System Stop and Start System Idle the engine for approximately 5 to 60 minutes or drive the vehicle until stop and start control is permitted ( 202406,999999,_51,_111803,_0509671,RM100000002KOGF,)
Items for which learning is completed by operating the vehicle normally Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link Power Door Lock Control System
·Back door opener
Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch. ( 202111,999999,_58,_111830,_0505351,RM100000001ZMT3,)
Air Conditioning System After the ignition switch is turned to ON, the servo motor standard position is recognized. -
- ·
Use the same procedure for the RH side and LH side.
·The following procedure is for the LH side.
PROCEDURE
58416K
1.REMOVE REAR NO. 2 FLOOR BOARD (for HV Model)
65351A
2.REMOVE BATTERY HOLE COVER (for HV Model)
3.DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
for A25F-FXS, A25D-FXS:
for M20D-FKS, M20C-FKS:
69278B
4.REMOVE FRONT DOOR INSIDE HANDLE BEZEL
74221A
5.REMOVE FRONT DOOR ARMREST COVER
81230
6.REMOVE COURTESY LIGHT ASSEMBLY
67602
7.REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY
67602
8.REMOVE FRONT DOOR INNER GLASS WEATHERSTRIP
68193C
9.REMOVE FRONT DOOR FRONT BELT SEAL
67831D
10.REMOVE FRONT DOOR SERVICE HOLE COVER CLIP
67832
11.REMOVE FRONT DOOR SERVICE HOLE COVER
12.REMOVE HOLE PLUG
68102
13.REMOVE FRONT DOOR GLASS SUB-ASSEMBLY
67664C
14.REMOVE DOOR FRAME GARNISH
68151D
15.REMOVE FRONT DOOR GLASS RUN
67402F
16.REMOVE FRONT DOOR FRONT LOWER FRAME SUB-ASSEMBLY
68126
17.REMOVE FRONT DOOR FIX WINDOW GLASS
67862
18.DISCONNECT FRONT DOOR WEATHERSTRIP
75926

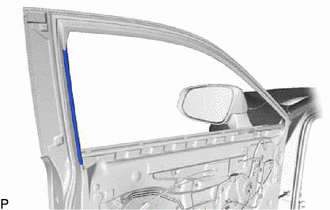

19.REMOVE NO. 3 BLACK OUT TAPE
- HINT:
-
When removing the No. 3 black out tape, heat the vehicle body and No. 3 black out tape using a heat light.
| Item | Temperature |
|---|---|
| No. 3 Black Out Tape and Vehicle Body | 40 to 60°C (104 to 140°F) |
- CAUTION:
-
2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b*a Heated Part *b Heat Light
- ·
Do not touch the heat light and heated parts, touching the heat light may result in burns.
·Touching heated parts for a long time may result in burns.
- NOTICE:
-
Do not heat the vehicle body excessively.
Using a heat light, heat the No. 3 black out tape and vehicle body.
Pull back on one of the ends of the No. 3 black out tape to remove it.
- HINT:
-
When pulling on the No. 3 black out tape, pull it parallel to the body.
75986B

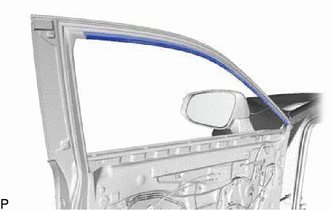

20.REMOVE NO. 3 FRONT DOOR STRIPE
- HINT:
-
When removing the No. 3 front door stripe, heat the vehicle body and No. 3 front door stripe using a heat light.
| Item | Temperature |
|---|---|
| No. 3 Front Door Stripe and Vehicle Body | 40 to 60°C (104 to 140°F) |
- CAUTION:
-
2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b
*a Heated Part *b Heat Light
- ·
Do not touch the heat light and heated parts, touching the heat light may result in burns.
·Touching heated parts for a long time may result in burns.
- NOTICE:
-
Do not heat the vehicle body excessively.
Using a heat light, heat the No. 3 front door stripe and vehicle body.
Pull back on one of the ends of the No. 3 front door stripe to remove it.
- HINT:
-
When pulling on the No. 3 front door stripe, pull it parallel to the body.
75922M

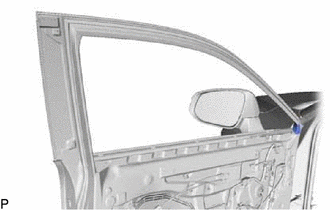

21.REMOVE NO. 1 BLACK OUT TAPE
- HINT:
-
When removing the No. 1 black out tape, heat the vehicle body and No. 1 black out tape using a heat light.
| Item | Temperature |
|---|---|
| No. 1 Black Out Tape and Vehicle Body | 40 to 60°C (104 to 140°F) |
- CAUTION:
-
2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b
*a Heated Part *b Heat Light
- ·
Do not touch the heat light and heated parts, touching the heat light may result in burns.
·Touching heated parts for a long time may result in burns.
- NOTICE:
-
Do not heat the vehicle body excessively.
Using a heat light, heat the No. 1 black out tape and vehicle body.
Pull back on one of the ends of the No. 1 black out tape to remove it.
- HINT:
-
When pulling on the No. 1 black out tape, pull it parallel to the body.
