EXTERIOR PANELS / TRIM  FRONT DOOR WINDOW FRAME MOULDING  REMOVAL


CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during front door window frame moulding removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure Necessary Procedures Effect/Inoperative Function When Necessary Procedures are not Performed Link

*: Even when not replacing the part, it is necessary to perform the specified necessary procedures after installation.

Auxiliary battery terminal is disconnected/reconnected Reset back door close position Power Back Door System (Click here)
·

Front door glass sub-assembly LH*

·

Front door glass sub-assembly RH*

·

Front door glass run LH*

·

Front door glass run RH*


Initialize power window control system
·

Auto up and down function

·

Jam protection function

·

Catch protection function

·

Remote control function

·

Wireless transmitter-linked function

·

Key-linked function

·

Key-off operation function

·

Window open warning function


(Click here)

NOTICE:

After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY


HINT:

When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

·

for HV Model:

Items for which learning is completed by driving the vehicle
Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link
Lane Tracing Assist System Drive the vehicle straight ahead at 35 km/h (22 mph) or more for 5 seconds or more. (Click here)
Pre-collision System

Items for which learning is completed by operating the vehicle normally
Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link
Power Door Lock Control System
·

Back door opener


Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch. (Click here)
Air Conditioning System After the ignition switch is turned to ON, the servo motor standard position is recognized. -


·

for Gasoline Model:

Items for which learning is completed by driving the vehicle
Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link
Lane Tracing Assist System Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 seconds or more. (Click here)
Pre-collision System
Stop and Start System Idle the engine for approximately 5 to 60 minutes or drive the vehicle until stop and start control is permitted (Click here)

Items for which learning is completed by operating the vehicle normally
Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link
Power Door Lock Control System
·

Back door opener


Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch. (Click here)
Air Conditioning System After the ignition switch is turned to ON, the servo motor standard position is recognized. -


·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.



PROCEDURE

Hide 67862 2.DISCONNECT FRONT DOOR WEATHERSTRIP

a.

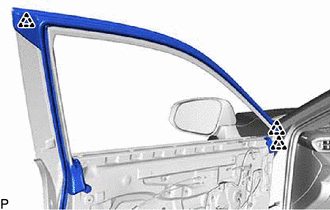

B589280

Disengage the 3 clips and disconnect the front door weatherstrip.


Hide 75756D 3.REMOVE FRONT DOOR WINDOW FRAME MOULDING (CENTER PILLAR SIDE)

HINT:

When removing the front door window frame moulding (center pillar side), heat the vehicle body and front door window frame moulding (center pillar side) using a heat light.


Heating Temperature:
Item Temperature
Front Door Window Frame Moulding (Center Pillar Side) and Vehicle Body 40 to 60°C (104 to 140°F)


CAUTION:
E306500C23
2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b
*a Heated Part
*b Heat Light


·

Do not touch the heat light and heated parts, touching the heat light may result in burns.

·

Touching heated parts for a long time may result in burns.



NOTICE:

Do not heat the vehicle body and front door window frame moulding (center pillar side) excessively.


a.

Using a heat light, heat the vehicle body and front door window frame moulding (center pillar side) surface.


b.

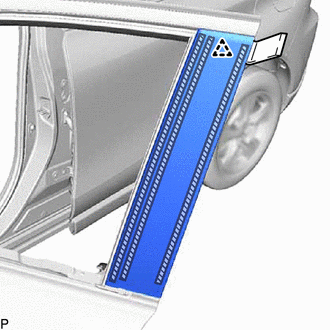

B589281
1.719,1.365 2.938,1.5 2.938,1.5 2.125,1.656 true 1.521,2.25 2.49,2.25 true 3,1.396 3.188,1.594 0.188,0.198 10 true *a 2.521,2.146 2.719,2.354 0.198,0.208 10 true *b
*a Double-sided Tape
*b Caulking Sponge


Using a moulding remover, disengage the clip and separate the double-sided tape and caulking sponge to remove the front door window frame moulding (center pillar side).


Hide 75072A 4.REMOVE FRONT DOOR OUTSIDE MOULDING SUB-ASSEMBLY

a.

Insert a 4.0 mm (0.157 in.) drill bit into a drill.


b.
B360296
0.542,0.906 0.833,1.219 false 0.875,1.156 1.188,1.313 0.313,0.156 10 false *a 0.333,1.5 0.49,1.698 0.156,0.198 10 false A
*a Tape


Tape the 4.0 mm (0.157 in.) drill bit 5.0 mm (0.197 in.) from the tip as shown in the illustration.

Standard Measurement:
Area Measurement
A 5.0 mm (0.197 in.)


NOTICE:

Tape the 4.0 mm (0.157 in.) drill bit to prevent the drill bit from going too deep.



c.

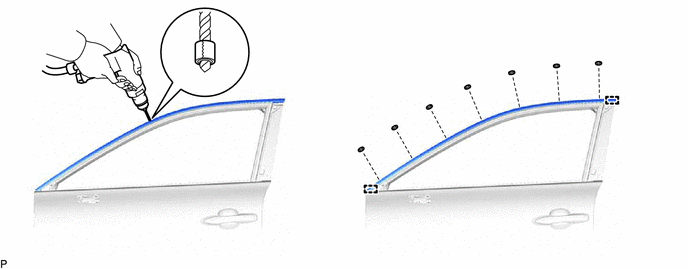

Lightly press the drill bit against the rivets to drill off the rivet flanges, and remove the 7 rivets.

B589283

CAUTION:

Be careful of the drilled rivets, as they may be hot.


NOTICE:
·

Pressing the drill too firmly will cause the rivet to turn and result in the rivet not being drilled through.

·

Prying the rivets with the drill may damage the rivet installation holes or drill bit.




d.

Using a vacuum cleaner, remove the rivet fragments and shavings from the drilled areas.


e.

Disengage the 2 guides to remove the front door outside moulding sub-assembly from the door frame.
