RM38N0EC _54 Brake _111815 BRAKE SYSTEM (OTHER) _0500817 BRAKE PEDAL(for Gasoline Model) A

BRAKE SYSTEM (OTHER) BRAKE PEDAL(for Gasoline Model) REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during brake pedal support assembly removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
Battery terminal is disconnected/reconnected	Reset back door close position	Power Back Door System	(202111,999999,_59,_111831,_0505274,RM100000001ZMEG,)

HINT:

When the cable is disconnected / reconnected to the battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the systems is used.

Items for which learning is completed by driving the vehicle
Effect/Inoperative Function when Necessary Procedure not Performed	Necessary Procedure	Link
Lane Tracing Assist System	Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 seconds or more.	(202111,999999,_95,_111850,_0502173,RM100000001Z92I,)
Pre-collision System		(202111,999999,_95,_111850,_0502173,RM100000001Z92I,)
Stop and Start System	Idle the engine for approximately 5 to 60 minutes or drive the vehicle until stop and start control is permitted	(202406,999999,_51,_111803,_0509671,RM100000002KOGF,)

Items for which learning is completed by operating the vehicle normally
Effect/Inoperative Function when Necessary Procedure not Performed	Necessary Procedure	Link
Power Door Lock Control System · Back door opener	Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.	(202111,999999,_58,_111830,_0505351,RM100000001ZMT3,)
Air Conditioning System	After the ignition switch is turned to ON, the servo motor standard position is recognized.	-

NOTICE:: After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) battery terminal.; Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY202406,999999,_V1,_111780,_0504976,RM100000002MNUD,

PROCEDURE

Hide Display 73900 1.REMOVE LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>KNEE AIRBAG ASSEMBLY>REMOVAL202406,999999,_58,_111838,_0502522,RM100000002MS7V,

Hide Display 87211A 2.REMOVE NO. 2 AIR DUCT

Click hereSteering>STEERING COLUMN>STEERING COLUMN ASSEMBLY>REMOVAL202406,202409,_55,_111820,_0503155,RM100000002MQ07_01_0157,202409,999999,_55,_111820,_0503155,RM100000002OMWK_01_0157,

Hide Display 84340 3.REMOVE STOP LIGHT SWITCH ASSEMBLY

Click hereVehicle Exterior>LIGHTING (EXT)>STOP LIGHT SWITCH>REMOVAL202111,999999,_59,_111834,_0499900,RM100000001Z0MK_01_0001,

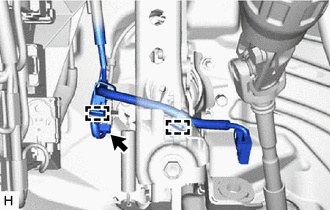

Hide Display 82111 4.SEPARATE ENGINE ROOM MAIN WIRE

Disconnect the connector and disengage the 2 clamps to separate the engine room main wire from the brake pedal support assembly.

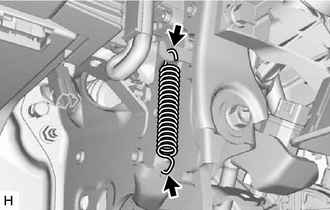

Hide Display 47101A 5.REMOVE BRAKE PEDAL RETURN SPRING

Remove the brake pedal return spring from the brake pedal support assembly.

Hide Display 47264A 6.REMOVE PUSH ROD PIN

Remove the clip and push rod pin to separate the master cylinder push rod clevis from the brake pedal support assembly.

Hide Display 47110 7.REMOVE BRAKE PEDAL SUPPORT ASSEMBLY

Remove the 2 clips.

Remove the bolt and 4 nuts and push the brake booster with master cylinder assembly toward the engine compartment.

NOTICE:: ·

Do not apply excessive force to the brake lines.

·

Do not apply excessive force to the wire harness.

Remove the brake pedal support assembly while avoiding the stud bolts of the brake booster with master cylinder assembly and brake booster support base.

NOTICE:: Be careful not to deform the bracket of the instrument panel reinforcement assembly.

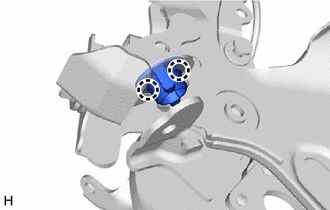

Hide Display 84345 8.REMOVE STOP LIGHT SWITCH MOUNTING ADJUSTER

Disengage the 2 claws and remove the stop light switch mounting adjuster.

Hide Display 47121 9.REMOVE BRAKE PEDAL PAD

Remove the brake pedal pad from the brake pedal support assembly.
