If the entry lock and unlock functions do not operate for the back door only, the request code may not be being transmitted from the back door. If the entry functions for other doors operate properly, communication between the electrical key transmitter sub-assembly and electrical key and tire pressure warning ECU and receiver is normal. In this case, there may be a problem with request code transmission (communication between the certification ECU (smart key ECU assembly) and electrical key antenna (outside luggage compartment)) or there may be wave interference.
When using the GTS with the ignition switch off, perform lock and unlock operations using the door control switch of the multiplex network master switch assembly at intervals of 1.5 seconds or less until communication between the GTS and the vehicle begins, and then select the vehicle model manually.
Then select Model Code "KEY REGIST" under manual mode and enter the following menus: Body Electrical / Entry&Start (CAN). While using the GTS, periodically perform lock and unlock operations using the door control switch of the multiplex network master switch assembly at intervals of 1.5 seconds or less to maintain communication between the GTS and the vehicle.
The smart entry and start system (for Entry Function) uses the CAN communication system. Inspect the communication function by following How to Proceed with Troubleshooting. Troubleshoot the smart entry and start system (for Entry Function) after confirming that the communication systems are functioning properly.
Before replacing the certification ECU (smart key ECU assembly), refer to Service Bulletin.
Check that there are no electrical key transmitter sub-assemblies in the vehicle.
After repair, confirm that no DTCs are output.
If the back door entry lock and unlock function does not operate, the cause of the malfunction may be stored in the certification ECU (smart key ECU assembly).
If the cause of the malfunction is stored in the certification ECU (smart key ECU assembly), the following table is helpful in checking whether the malfunction was caused by wave interference.
| Tester Display |
|---|
| Vehicle Control History (RoB) |
When the door control switch on the multiplex network master switch assembly is operated, check that the back door lock and unlock according to the switch operation.
Back door lock/unlock operate normally.
| Proceed to |
|---|
| OK |
| NG |
OK
NG
| *1 | Electrical Key Transmitter Sub-assembly |
| *a | Approximately 0.3 m (0.984 ft.) |
The illustrations shown are examples only.
Bring the electrical key transmitter sub-assembly approximately 0.3 m (0.984 ft.) from the electrical key antenna (outside luggage compartment) and perform an entry back door open/lock function check.
Communication may not be possible if the electrical key transmitter sub-assembly is within 0.2 m (0.656 ft.) of the electrical key antenna (outside luggage compartment)
When the electrical key transmitter sub-assembly is brought near the electrical key antenna (outside luggage compartment), the possibility of wave interference decreases, and it can be determined if wave interference is causing the problem symptom.
If the inspection result is that the problem only occurs in certain locations or at certain times of day, the possibility of wave interference is high. Also, added vehicle components may cause wave interference. If installed, remove them and perform the operation check.
There may be wave interference if the vehicle is near broadcasting antennas, large video displays, wireless garage door opener systems, wireless security cameras, home security systems, etc. In this case, move the vehicle to a different location and check if there is any improvement.
If a tool for checking radio waves, such as a signal strength meter, is available, move around the area while observing both the LF band (used by the vehicle antenna to form the detection area) and RF band (used by the electrical key transmitter sub-assembly for transmission) to check for locations where there is wave interference.
| Result | Proceed to |
|---|---|
| Entry function does not operate normally | A |
| Entry function operates normally | B |
A
B
Read the Data List according to the display on the GTS.
| Tester Display | Measurement Item | Range | Normal Condition | Diagnostic Note |
|---|---|---|---|---|
| Trunk Lid/Back Door Lock Switch | License plate light assembly with back door opener switch (lock switch) | OFF or ON | OFF: License plate light assembly with back door opener switch (lock switch) not pressed
ON: License plate light assembly with back door opener switch (lock switch) pressed |
·
Displays whether the license plate light assembly with back door opener switch (lock switch) is on or off. ·
Use this Data List item to help determine if there is a switch malfunction when the back door lock function does not operate. |
| Trunk Lid/Back Door Unlock Switch | License plate light assembly with back door opener switch (open switch) | OFF or ON | OFF: License plate light assembly with back door opener switch (open switch) not pressed
ON: License plate light assembly with back door opener switch (open switch) pressed |
·
Displays whether the license plate light assembly with back door opener switch (unlock switch) is on or off. ·
Use this Data List item to help determine if there is a switch malfunction when the entry back door open function does not operate. |
| Tester Display |
|---|
| Trunk Lid/Back Door Lock Switch |
| Trunk Lid/Back Door Unlock Switch |
The GTS display changes correctly in response to the operation of the license plate light assembly with back door opener switch.
| Proceed to |
|---|
| OK |
| NG |
OK
NG
Check the following antenna in key diagnostic mode.
| Tester Display |
|---|
| Communication Check(Key Diag Mode) |
| *1 | Electrical Key Transmitter Sub-assembly |
| *a | 0.7 to 1 m (2.30 to 3.28 ft.) |
The illustrations shown are examples only.
Select either channel 1 or channel 2 and perform the key diagnostic mode inspection for each channel.
Check the electrical key antenna (outside luggage compartment):
When the electrical key transmitter sub-assembly is brought within 0.7 to 1 m (2.30 to 3.28 ft.) of the electrical key antenna (outside luggage compartment), check that the combination meter assembly buzzer sounds.
Select either channel 1 or channel 2 and perform the key diagnostic mode inspection for each channel.
If the combination meter assembly buzzer sounds with [CH1] displayed but not with [CH2], the electrical key transmitter sub-assembly cannot be detected by channel 2 due to a malfunction, such as wave interference.
| Result | Proceed to |
|---|---|
| Combination meter assembly buzzer does not sound | A |
| Combination meter assembly buzzer sounds | B |
A
B

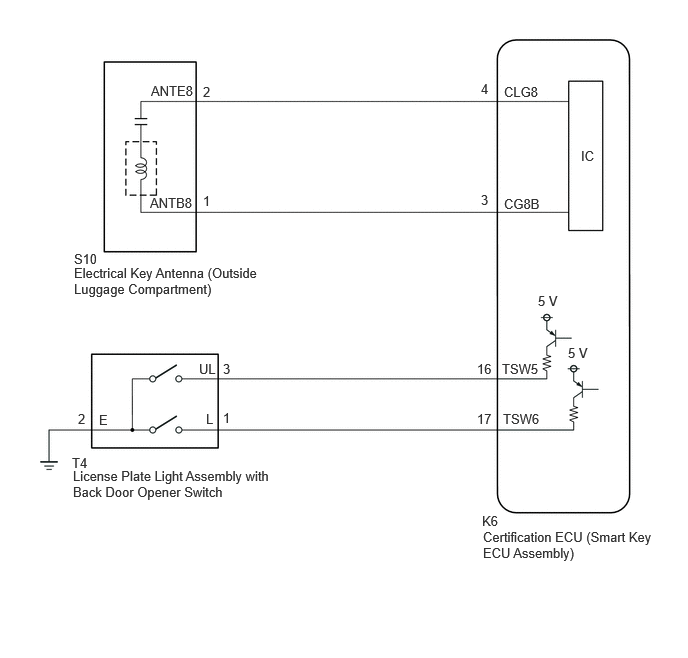

Disconnect the K6 certification ECU (smart key ECU assembly) connector.
Disconnect the S10 electrical key antenna (outside luggage compartment) connector.
Measure the resistance according to the value(s) in the table below.
| Tester Connection | Condition | Specified Condition |
|---|---|---|
|
Click Location & Routing(K6,S10)Location & Routingewd_type=routing;type=c,c;code=K6,S10 Click Connector(K6)Instrument Panel>Floor Wire>Smart Key ECU Assemblyewd_type=component;type=c;code=K6;pinno=4,3 Click Connector(S10)Body>No. 2 Luggage Room Wire / No. 3 Luggage Room Wire>Electrical Key Antenna (Outside Luggage Compartment)ewd_type=component;type=c;code=S10;pinno=2,1 |
||
| K6-4 (CLG8) - S10-2 (ANTE8) | Always | Below 1 Ω |
| K6-3 (CG8B) - S10-1 (ANTB8) | Always | Below 1 Ω |
| K6-4 (CLG8) or S10-2 (ANTE8) - Other terminals and body ground | Always | 10 kΩ or higher |
| K6-3 (CG8B) or S10-1 (ANTB8) - Other terminals and body ground | Always | 10 kΩ or higher |
Reconnect the K6 certification ECU (smart key ECU assembly) connector.
| Proceed to |
|---|
| OK |
| NG |
OK
NG

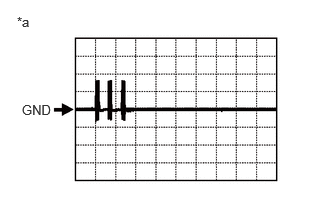

| *a | Waveform 1 |
Using an oscilloscope, check the waveform.
| Tester Connection | Condition | Tool Setting | Specified Condition |
|---|---|---|---|
|
Click Location & Routing(S10)Location & Routingewd_type=routing;type=c;code=S10 Click Connector(S10)Body>No. 2 Luggage Room Wire / No. 3 Luggage Room Wire>Electrical Key Antenna (Outside Luggage Compartment)ewd_type=component;type=c;code=S10;pinno=1,2 |
|||
| S10-1 (ANTB8) - S10-2 (ANTE8) | Procedure:
1.
Ignition switch off 2.
Electrical key transmitter sub-assembly brought outside vehicle 3.
All doors closed 4.
License plate light assembly with back door opener switch off → on |
5 V/DIV., 50 ms./DIV. | Pulse generation
(See waveform 1) |
| Proceed to |
|---|
| OK |
| NG |
OK
NG
Connect all connectors and check that the function operates normally.
| Result | Proceed to |
|---|---|
| Entry function operates normally | A |
| Entry function does not operate normally | B |
A
B
Disconnect the K6 certification ECU (smart key ECU assembly) connector.
Disconnect the T4 license plate light assembly with back door opener switch connector.
Measure the resistance according to the value(s) in the table below.
| Tester Connection | Condition | Specified Condition |
|---|---|---|
|
Click Location & Routing(K6,T4)Location & Routingewd_type=routing;type=c,c;code=K6,T4 Click Connector(K6)Instrument Panel>Floor Wire>Smart Key ECU Assemblyewd_type=component;type=c;code=K6;pinno=16,17 Click Connector(T4)Body>No. 1 Back Door Wire>License Plate Light Assembly with Back Door Opener Switchewd_type=component;type=c;code=T4;pinno=3,1,2 |
||
| K6-16 (TSW5) - T4-3 (UL) | Always | Below 1 Ω |
| K6-17 (TSW6) - T4-1 (L) | Always | Below 1 Ω |
| T4-2 (E) - Other terminals and body ground | Always | Below 1 Ω |
| K6-16 (TSW5) or T4-3 (UL) - Other terminals and body ground | Always | 10 kΩ or higher |
| K6-17 (TSW6) or T4-1 (L) - Other terminals and body ground | Always | 10 kΩ or higher |
| Proceed to |
|---|
| OK |
| NG |
OK
NG
| Proceed to |
|---|
| OK |
| NG |
OK
NG
Connect all connectors and check that the function operates normally.
| Result | Proceed to |
|---|---|
| Entry function operates normally | A |
| Entry function does not operate normally | B |
A
B
