DOOR / HATCH  BACK DOOR OPENER SWITCH  INSPECTION


PROCEDURE

Hide 812D0 1.INSPECT LICENSE PLATE LIGHT ASSEMBLY WITH BACK DOOR OPENER SWITCH

a.
B577970C02
2.542,1.219 2.781,0.583 true 3.094,1.219 2.896,0.583 true 0.208,1.76 0.49,1.99 0.281,0.229 10 false *a 0.708,1.615 0.906,1.802 0.198,0.188 10 true *b 0.063,0.063 0.375,0.219 0.313,0.156 10 false *c 2.479,1.24 2.802,1.479 0.323,0.24 10 false UL 3.083,1.24 3.26,1.469 0.177,0.229 10 false E
*a Not Pushed (OFF)
*b Pushed (ON)
*c Component without harness connected
(License Plate Light Assembly With Back Door Opener Switch)


Check the operation of the back door opener switch.

i.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Switch Condition Specified Condition
3 (UL) - 2 (E) Back door opener switch pushed (ON) Below 1 Ω
3 (UL) - 2 (E) Back door opener switch not pushed (OFF) 10 kΩ or higher


If the result is not as specified, replace the license plate light assembly with back door opener switch.



b.

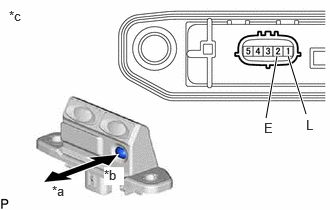

B577971C02
3.188,1.188 3,0.583 true 2.771,1.229 2.885,0.583 true 0.542,1.906 0.854,2.135 0.313,0.229 10 false *a 1.083,1.74 1.292,1.927 0.208,0.188 10 true *b 0.094,0.083 0.438,0.344 0.344,0.26 10 false *c 2.75,1.25 2.958,1.469 0.208,0.219 10 false E 3.188,1.219 3.375,1.427 0.188,0.208 10 false L
*a Not Pushed (OFF)
*b Pushed (ON)
*c Component without harness connected
(License Plate Light Assembly With Back Door Opener Switch)


Check the operation of the back door lock switch.

i.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Switch Condition Specified Condition
1 (L) - 2 (E) Back door lock switch pushed (ON) Below 1 Ω
1 (L) - 2 (E) Back door lock switch not pushed (OFF) 10 kΩ or higher


If the result is not as specified, replace the license plate light assembly with back door opener switch.
