RM38N0EC _58 Vehicle Interior _111832 THEFT DETERRENT / KEYLESS ENTRY _0509383 SMART ENTRY AND START SYSTEM(for Entry Function, Gasoline Model) J

THEFT DETERRENT / KEYLESS ENTRY  SMART ENTRY AND START SYSTEM(for Entry Function, Gasoline Model)  Driver Side Door Entry Unlock Function does not Operate


DESCRIPTION

If the entry unlock function does not operate for the driver door only, but the entry lock function operates, the request code is being transmitted properly from the driver door. In this case, there may be a problem related to the unlock sensor (connection between the certification ECU (smart key ECU assembly) and front door outside handle assembly (for driver door)).

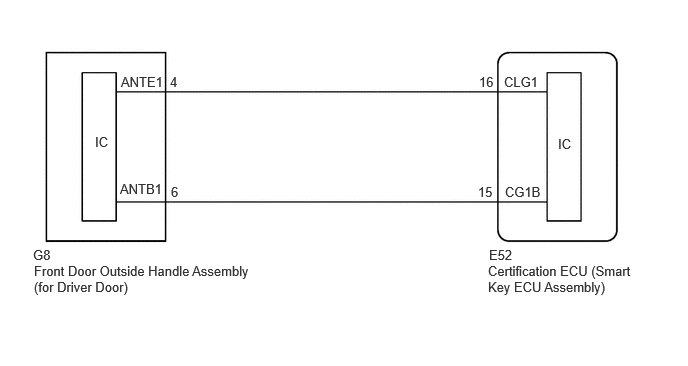

WIRING DIAGRAM

B592305E14
0.354,2.74 2.646,3.24 2.292,0.5 10 false Front Door Outside Handle Assembly (for Driver Door) 0.344,2.573 0.677,2.802 0.333,0.229 10 false G8 1.771,0.771 2.01,1.01 0.24,0.24 10 false 4 1.781,1.917 2.021,2.156 0.24,0.24 10 false 6 1.26,0.771 1.896,1.063 0.635,0.292 10 false ANTE1 1.25,1.885 1.729,2.125 0.479,0.24 10 false ANTB1 5.25,0.771 5.719,1.021 0.469,0.25 10 false CLG1 5.26,1.917 5.729,2.167 0.469,0.25 10 false CG1B 4.99,0.771 5.229,1.01 0.24,0.24 10 false 16 4.979,1.917 5.219,2.156 0.24,0.24 10 false 15 5.083,2.74 6.625,3.313 1.542,0.573 10 false Certification ECU (Smart Key ECU Assembly) 5.094,2.573 5.521,2.813 0.427,0.24 10 false E52 5.813,1.417 6.281,1.677 0.469,0.26 10 false IC 0.99,1.396 1.458,1.656 0.469,0.26 10 false IC

CAUTION / NOTICE / HINT

NOTICE:
·

When using the GTS with the ignition switch off, perform lock and unlock operations using the door control switch of the multiplex network master switch assembly at intervals of 1.5 seconds or less until communication between the GTS and the vehicle begins, and then select the vehicle model manually.

Then select Model Code "KEY REGIST" under manual mode and enter the following menus: Body Electrical / Entry&Start (CAN). While using the GTS, periodically perform lock and unlock operations using the door control switch of the multiplex network master switch assembly at intervals of 1.5 seconds or less to maintain communication between the GTS and the vehicle.

·

The smart entry and start system (for Entry Function) uses the CAN communication system. Inspect the communication function by following How to Proceed with Troubleshooting. Troubleshoot the smart entry and start system (for Entry Function) after confirming that the communication systems are functioning properly.

Click hereVehicle Interior>THEFT DETERRENT / KEYLESS ENTRY>SMART ENTRY AND START SYSTEM (for Entry Function, Gasoline Model)>HOW TO PROCEED WITH TROUBLESHOOTING

·

Before replacing the certification ECU (smart key ECU assembly), refer to Service Bulletin.

·

Check that there are no electrical key transmitter sub-assemblies in the vehicle.

·

After repair, confirm that no DTCs are output.



PROCEDURE

1.CHECK POWER DOOR LOCK CONTROL SYSTEM
a.

When the door control switch on the multiplex network master switch assembly is operated, check that the doors unlock and lock according to the switch operation.

Click hereVehicle Interior>DOOR LOCK>POWER DOOR LOCK CONTROL SYSTEM>OPERATION CHECK

OK:

Door locks operate normally.



Result:
Proceed to
OK
NG



OK

2.CHECK ENTRY OPERATION

NG

2.CHECK ENTRY OPERATION
a.

Check the entry unlock function.

i.
B581631C01
1.083,0.5 1.5,0.5 1.5,0.5 2,1.5 false 0.896,0.438 1.208,0.635 0.313,0.198 10 false *a
*a Unlock Sensor (Backside)

The illustrations shown are examples only.


Turn the ignition switch off.


ii.

Open and close the driver door.


iii.

With the electrical key transmitter sub-assembly outside of the vehicle, press the lock switch of the electrical key transmitter sub-assembly to lock all of the doors.


iv.

Hold the electrical key transmitter sub-assembly at the same height as the door outside handle assembly and approximately 0.3 m (0.984 ft.) from the driver door.


v.

Check that the LED of the electrical key transmitter sub-assembly blinks.


vi.

Touch the unlock sensor on the backside of the front door outside handle assembly (for driver door) for 2 seconds or more.*

*: Perform this step 3 seconds or more after performing step (3).


HINT:

When checking the operation of the unlock sensor again, make sure to perform the procedure from step (1).




Result:
Result Proceed to
Entry function does not operate normally A
Entry function operates normally B



A

3.READ VALUE USING GTS (FL DOOR LOCK POSITION SWITCH STATUS)

B

3.READ VALUE USING GTS (FL DOOR LOCK POSITION SWITCH STATUS)
a.

Read the Data List according to the display on the GTS.

Body Electrical > Main Body > Data List
Tester Display Measurement Item Range Normal Condition Diagnostic Note
FL Door Lock Position Switch Status Front door LH unlock detection switch signal Lock or Unlock Lock: Front door LH locked
Unlock: Front door LH unlocked
-
Body Electrical > Main Body > Data List
Tester Display
FL Door Lock Position Switch Status
50003 449 21
OK:

The GTS display changes correctly in response to the lock/unlock operation of the driver door.



Result:
Proceed to
OK
NG



OK

4.READ VALUE USING GTS (DRIVER SIDE UNLOCK SENSOR)

NG

4.READ VALUE USING GTS (DRIVER SIDE UNLOCK SENSOR)
a.
B581631C01
1.083,0.5 1.5,0.5 1.5,0.5 2,1.5 false 0.896,0.438 1.208,0.635 0.313,0.198 10 false *a
*a Unlock Sensor (Backside)

The illustrations shown are examples only.


Open and close the driver door.


b.

With the electrical key transmitter sub-assembly outside of the vehicle, press the lock switch of the electrical key transmitter sub-assembly to lock all of the doors.


c.

Hold the electrical key transmitter sub-assembly at the same height as the door outside handle assembly and approximately 0.3 m (0.984 ft.) from the driver door.


d.

Check that the LED of the electrical key transmitter sub-assembly blinks.


e.

Read the Data List according to the display on the GTS.


f.

Touch the unlock sensor on the backside of the front door outside handle assembly (for driver door) for 2 seconds or more.*

*: Perform this step 3 seconds or more after performing step (b).


HINT:

When checking the operation of the unlock sensor again, make sure to perform the procedure from step (a).


Body Electrical > Entry&Start > Data List
Tester Display Measurement Item Range Normal Condition Diagnostic Note
Driver Side Unlock Sensor Driver door touch sensor (unlock sensor) OFF or ON OFF: Driver door touch sensor (unlock sensor) not touched
ON: Driver door touch sensor (unlock sensor) touched
·

Displays whether the unlock sensor is on or off (even if the sensor is touched and contact is maintained, "ON" is displayed only momentarily).

·

Use this Data List item to help determine if there is an unlock sensor malfunction when the entry unlock function does not operate.


Body Electrical > Entry&Start > Data List
Tester Display
Driver Side Unlock Sensor
50003 440 3
OK:

The GTS display changes correctly in response to the operation of the front door outside handle assembly (for driver door).



Result:
Proceed to
OK
NG



OK

REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

NG

5.CHECK HARNESS AND CONNECTOR (CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) - FRONT DOOR OUTSIDE HANDLE ASSEMBLY (FOR DRIVER DOOR))
5.CHECK HARNESS AND CONNECTOR (CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) - FRONT DOOR OUTSIDE HANDLE ASSEMBLY (FOR DRIVER DOOR))
a.

Disconnect the E52 certification ECU (smart key ECU assembly) connector.


b.

Disconnect the G8 front door outside handle assembly (for driver door) connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition

Click Location & Routing(E52,G8)Location & Routing

Click Connector(E52)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>Smart Key ECU Assembly

Click Connector(G8)Body>Front Door Wire RH / Front Door Wire LH>Electrical Key Antenna (Front Door Outside Handle Assembly LH)

E52-16 (CLG1) - G8-4 (ANTE1) Always Below 1 Ω
E52-15 (CG1B) - G8-6 (ANTB1) Always Below 1 Ω
E52-16 (CLG1) or G8-4 (ANTE1) - Other terminals and body ground Always 10 kΩ or higher
E52-15 (CG1B) or G8-6 (ANTB1) - Other terminals and body ground Always 10 kΩ or higher



d.

Reconnect the G8 front door outside handle assembly (for driver door) connector.


e.

Reconnect the E52 certification ECU (smart key ECU assembly) connector.


Result:
Proceed to
OK
NG



OK

6.READ VALUE USING GTS (DRIVER SIDE UNLOCK SENSOR)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

6.READ VALUE USING GTS (DRIVER SIDE UNLOCK SENSOR)
a.
B581630C01
1.688,1.469 2.25,0.667 2.25,0.667 2.667,0.667 false 2.719,0.615 3.031,0.813 0.313,0.198 10 false *a
*a Unlock Sensor (Backside)

The illustrations shown are examples only.


Open and close the driver door.


b.

With the electrical key transmitter sub-assembly outside of the vehicle, press the lock switch of the electrical key transmitter sub-assembly to lock all of the doors.


c.

Hold the electrical key transmitter sub-assembly at the same height as the door outside handle assembly and approximately 0.3 m (0.984 ft.) from the driver door.


d.

Check that the LED of the electrical key transmitter sub-assembly blinks.


e.

Read the Data List according to the display on the GTS.


f.

Touch the unlock sensor on the backside of the front door outside handle assembly (for driver door) for 2 seconds or more.*

*: Perform this step 3 seconds or more after performing step (b).


HINT:

When checking the operation of the unlock sensor again, make sure to perform the procedure from step (a).


Body Electrical > Entry&Start > Data List
Tester Display Measurement Item Range Normal Condition Diagnostic Note
Driver Side Unlock Sensor Driver door touch sensor (unlock sensor) OFF or ON OFF: Driver door touch sensor (unlock sensor) not touched
ON: Driver door touch sensor (unlock sensor) touched
·

Displays whether the unlock sensor is on or off (even if the sensor is touched and contact is maintained, "ON" is displayed only momentarily).

·

Use this Data List item to help determine if there is an unlock sensor malfunction when the entry unlock function does not operate.


Body Electrical > Entry&Start > Data List
Tester Display
Driver Side Unlock Sensor
50003 440 3
OK:

The GTS display changes correctly in response to the operation of the front door outside handle assembly (for driver door).



Result:
Proceed to
OK
NG



OK

END (CONNECTOR WAS NOT CONNECTED SECURELY)

NG
