GF1A TRANSFER / 4WD / AWD 4WD CONTROL ECU REMOVAL

PROCEDURE

Hide Display 1. PRECAUTION

NOTICE:: After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal.; Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY202303,202406,_V1,_111780,_0504976,RM100000002AJR4,202406,999999,_V1,_111780,_0504976,RM100000002MNUD,

Hide Display 2.DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

Click hereGeneral>MAINTENANCE>M20C-FKS, M20D-FKS BATTERY>REMOVAL202303,202406,_V1,_112220,_0503321,RM100000002AJT5_01_0013,202406,999999,_V1,_112220,_0503321,RM100000002MSAX_01_0013,

Hide Display 73706 3.REMOVE CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY LH

Click hereVehicle Interior>SEAT BELT>CHILD RESTRAINT SEAT ANCHOR BRACKET>REMOVAL202203,999999,_58,_111840,_0501519,RM1000000022LL4,

Hide Display 58417 4.REMOVE REAR NO. 3 FLOOR BOARD

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202303,202406,_58,_111843,_0501311,RM100000002AMS0_02_0250,202406,999999,_58,_111843,_0501311,RM100000002MT6G_02_0250,

Hide Display 64779 5.REMOVE SPARE WHEEL COVER TRAY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202303,202406,_58,_111843,_0501311,RM100000002AMS0_02_0253,202406,999999,_58,_111843,_0501311,RM100000002MT6G_02_0253,

Hide Display 58387B 6.REMOVE REAR FLOOR FINISH PLATE

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202303,202406,_58,_111843,_0501311,RM100000002AMS0_02_0203,202406,999999,_58,_111843,_0501311,RM100000002MT6G_02_0203,

Hide Display 58577E 7.REMOVE REAR NO. 1 FLOOR MAT SUPPORT SIDE PLATE

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202303,202406,_58,_111843,_0501311,RM100000002AMS0_02_0200,202406,999999,_58,_111843,_0501311,RM100000002MT6G_02_0200,

Hide Display 67918A 8.REMOVE REAR DOOR SCUFF PLATE LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202303,202406,_58,_111843,_0501311,RM100000002AMS0_02_0012,202406,999999,_58,_111843,_0501311,RM100000002MT6G_02_0012,

Hide Display 62332C 9.DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP LH

Click hereVehicle Interior>SEAT BELT>REAR SEAT OUTER BELT ASSEMBLY>REMOVAL202303,202406,_58,_111840,_0501516,RM100000002BICP_01_0263,202406,999999,_58,_111840,_0501516,RM100000002MX0W_01_0263,

Hide Display 71304C 10.REMOVE REAR SEATBACK HINGE SUB-ASSEMBLY LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202303,202406,_58,_111843,_0501311,RM100000002AMS0_02_0217,202406,999999,_58,_111843,_0501311,RM100000002MT6G_02_0217,

Hide Display 62552F 11.REMOVE REAR SEAT SIDE GARNISH LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202303,202406,_58,_111843,_0501311,RM100000002AMS0_02_0220,202406,999999,_58,_111843,_0501311,RM100000002MT6G_02_0220,

Hide Display 64740C 12.REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202303,202406,_58,_111843,_0501311,RM100000002AMS0_02_0223,202406,999999,_58,_111843,_0501311,RM100000002MT6G_02_0223,

Hide Display 89630A 13.REMOVE 4WD ECU ASSEMBLY

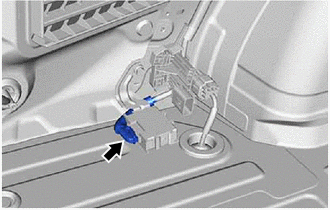

a.

C478610

Disconnect the 4WD ECU assembly connector.

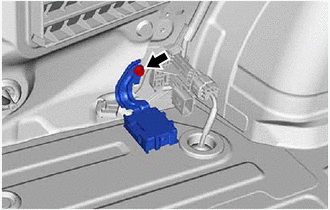

b.

C478611

Remove the bolt and 4WD ECU assembly.
