RM38N0EC _58 Vehicle Interior _111840 SEAT BELT _0501519 CHILD RESTRAINT SEAT ANCHOR BRACKET A

SEAT BELT CHILD RESTRAINT SEAT ANCHOR BRACKET REMOVAL

CAUTION / NOTICE / HINT

CAUTION:: Wear protective gloves. Sharp areas on the parts may injure your hands.

HINT:: ·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.

PROCEDURE

Hide Display 58410B 1.REMOVE DECK BOARD ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202203,202303,_58,_111843,_0501311,RM1000000022FCC_02_0195,202303,202406,_58,_111843,_0501311,RM100000002AMS0_02_0195,202406,999999,_58,_111843,_0501311,RM100000002MT6G_02_0195,

Hide Display 71940A 2.REMOVE REAR SEAT HEADREST ASSEMBLY (for LH Side)

a.

Remove the rear seat headrest assembly.

Hide Display 71940A 3.REMOVE REAR SEAT HEADREST ASSEMBLY (for RH Side)

a.

Remove the rear seat headrest assembly.

Hide Display 71960B 4.REMOVE REAR SEAT CENTER HEADREST ASSEMBLY (for RH Side)

for SFTM Made: Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for SFTM Made)>REMOVAL202111,999999,_58,_111839,_0500762,RM100000001Z3BE_01_0046,

for GTMC Made: Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for GTMC Made)>REMOVAL202203,999999,_58,_111839,_0524495,RM10000000220ZW_01_0046,

Hide Display 5.REMOVE REAR SEAT CUSHION ASSEMBLY

for SFTM Made: Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for SFTM Made)>REMOVAL202111,999999,_58,_111839,_0500762,RM100000001Z3BE_01_0022,

for GTMC Made: Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for GTMC Made)>REMOVAL202203,999999,_58,_111839,_0524495,RM10000000220ZW_01_0042,

Hide Display 72693 6.REMOVE REAR SEAT CUSHION LOCK HOOK

for SFTM Made: Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for SFTM Made)>REMOVAL202111,999999,_58,_111839,_0500762,RM100000001Z3BE_01_0001,

for GTMC Made: Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for GTMC Made)>REMOVAL202203,999999,_58,_111839,_0524495,RM10000000220ZW_01_0001,

Hide Display 73350C 7.DISCONNECT REAR CENTER SEAT OUTER BELT ASSEMBLY (for RH Side)

for SFTM Made: Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for SFTM Made)>REMOVAL202111,999999,_58,_111839,_0500762,RM100000001Z3BE_01_0024,

for GTMC Made: Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for GTMC Made)>REMOVAL202203,999999,_58,_111839,_0524495,RM10000000220ZW_01_0024,

Hide Display 8.REMOVE REAR SEATBACK ASSEMBLY RH (for RH Side)

for SFTM Made: Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for SFTM Made)>REMOVAL202111,999999,_58,_111839,_0500762,RM100000001Z3BE_01_0011,

for GTMC Made: Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for GTMC Made)>REMOVAL202203,999999,_58,_111839,_0524495,RM10000000220ZW_01_0011,

Hide Display 9.REMOVE REAR SEATBACK ASSEMBLY LH (for LH Side)

for SFTM Made: Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for SFTM Made)>REMOVAL202111,999999,_58,_111839,_0500762,RM100000001Z3BE_01_0012,

for GTMC Made: Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for GTMC Made)>REMOVAL202203,999999,_58,_111839,_0524495,RM10000000220ZW_01_0012,

Hide Display 73706 10.REMOVE CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY LH

a.

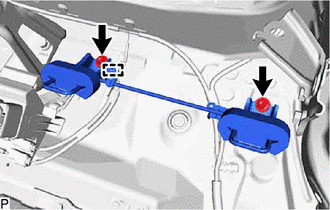

B629348

Disengage the clamp.

b.

Remove the 2 bolts and child restraint seat anchor bracket sub-assembly LH.
