K120 / K120F / K121 / K121F CVT K121 / K121F CONTINUOUSLY VARIABLE TRANSAXLE SYSTEM Transmission Control Switch Circuit
DESCRIPTION
After moving the shift lever to M, it is possible to change the shift range between M1 and M10 using the shift lever. Moving the shift lever to "+" once raises the shift range by one, and moving the shift lever to "-" lowers the shift range by one.

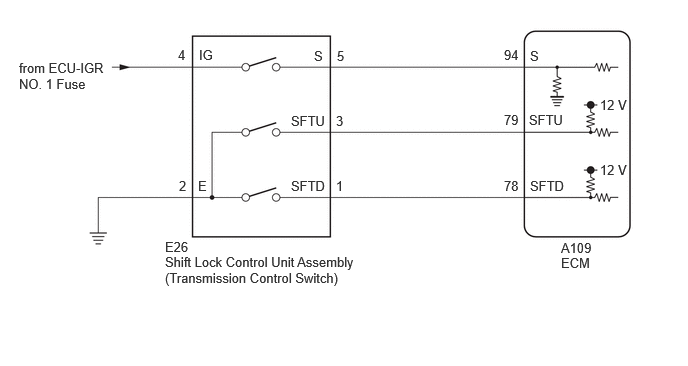

WIRING DIAGRAM
CAUTION / NOTICE / HINT
- NOTICE:
- ·
Perform registration and/or initialization when parts related to the continuously variable transaxle system are replaced.
·Inspect the fuses for circuits related to this system before performing the following procedure.
PROCEDURE
Read the DTCs using the GTS.
- Powertrain > Engine > Trouble Codes
- 50001 372
- Result:
Result Proceed to DTCs are not output A DTCs are output B
A
B
According to the display on the GTS, read the Data List.
- Powertrain > Engine > Data List
-
Tester Display Measurement Item Range Normal Condition Diagnostic Note Shift SW Status (S Range) Transmission control switch status OFF or ON ·ON: Shift lever in M, "+" or "-"
·OFF: Shift lever not in M, "+" or "-"
-
- Powertrain > Engine > Data List
-
Tester Display Shift SW Status (S Range) - 50003 372 27
- Result:
Result Proceed to Data List value is normal A Data List value is not normal B
A
B
According to the display on the GTS, read the Data List.
- Powertrain > Engine > Data List
-
Tester Display Measurement Item Range Normal Condition Diagnostic Note Sport Shift Up SW Sport shift up switch status OFF or ON ·ON: Shift lever held in "+"
·OFF: Shift lever not held in "+"
- Sport Shift Down SW Sport shift down switch status OFF or ON ·ON: Shift lever held in "-"
·OFF: Shift lever not held in "-"
-
- Powertrain > Engine > Data List
-
Tester Display Sport Shift Up SW Sport Shift Down SW - 50003 372 26,25
- Result:
Result Proceed to Data List values are normal A Data List values are not normal B
A
B
| *a | Component without harness connected
(Shift Lock Control Unit Assembly (Transmission Control Switch)) |
Disconnect the E26 shift lock control unit assembly connector.
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition 3 (SFTU) - 2 (E) Shift lever held in "+" (Up shift) Below 1 Ω 3 (SFTU) - 2 (E) Shift lever not held in "+" (Up shift) 10 kΩ or higher 1 (SFTD) - 2 (E) Shift lever held in "-" (Down shift) Below 1 Ω 1 (SFTD) - 2 (E) Shift lever not held in "-" (Down shift) 10 kΩ or higher
Connect the E26 shift lock control unit assembly connector.
- Result:
Proceed to OK NG
OK
NG
Disconnect the E26 shift lock control unit assembly connector.
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition Click Location & Routing(E26)Location & Routingewd_type=routing;type=c;code=E26
E26-2 (E) - Body ground Always Below 1 Ω
Connect the E26 shift lock control unit assembly connector.
- Result:
Proceed to OK NG
OK
NG
Disconnect the A109 ECM connector.
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition Click Location & Routing(A109)Location & Routingewd_type=routing;type=c;code=A109
Click Connector(A109)Engine Compartment>Engine Room Main Wire / Transmission Wire>ECMewd_type=component;type=c;code=A109;pinno=79,78
A109-79 (SFTU) - Body ground Shift lever held in "+" (Up shift) Below 1 Ω A109-79 (SFTU) - Body ground Shift lever not held in "+" (Up shift) 10 kΩ or higher A109-78 (SFTD) - Body ground Shift lever held in "-" (Down shift) Below 1 Ω A109-78 (SFTD) - Body ground Shift lever not held in "-" (Down shift) 10 kΩ or higher
Connect the A109 ECM connector.
- Result:
Proceed to OK NG
OK
NG
- Result:
Proceed to NEXT
NEXT
for Registration: Click hereDrivetrain>K120 / K120F / K121 / K121F (CVT)>K121 / K121F CONTINUOUSLY VARIABLE TRANSAXLE SYSTEM>REGISTRATION202303,999999,_52,_111806,_0584611,RM1000000029R1L,
for Initialization: Click hereDrivetrain>K120 / K120F / K121 / K121F (CVT)>K121 / K121F CONTINUOUSLY VARIABLE TRANSAXLE SYSTEM>INITIALIZATION202303,999999,_52,_111806,_0584611,RM1000000029R1M,
