M20C-FKS, M20D-FKS ENGINE CONTROL SFI SYSTEM P050031 Vehicle Speed Sensor "A" No Signal
DESCRIPTION

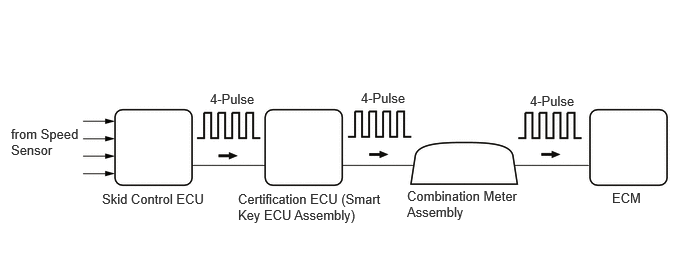

Vehicles, which are equipped with ABS (Anti-lock Brake System), detect the vehicle speed using the skid control ECU (brake actuator assembly) and speed sensor. The speed sensor monitors the wheel rotation speed and sends a signal to the skid control ECU. The skid control ECU detects the wheel speed of all 4 wheels and outputs a 4-pulse signal to the ECM via the certification ECU (smart key ECU assembly) and combination meter assembly. The ECM determines the vehicle speed based on the frequency of the pulse signal.
- HINT:
- ·
Various systems use the vehicle speed signal distributed from the combination meter assembly. Check all the components possibly related to speed signal.
·A voltage of 12 V or 5 V is output from each ECU and then input to the combination meter assembly.
The signal is changed to a pulse signal at the transistor in the combination meter assembly. Each ECU controls the respective system based on the pulse signal.
·If a short occurs in any of the ECUs or in the wire harness connected to an ECU, all systems using the speed signal will not operate normally.
| DTC No. | Detection Item | DTC Detection Condition | Trouble Area | MIL | Note |
|---|---|---|---|---|---|
| P050031 | Vehicle Speed Sensor "A" No Signal | While vehicle being driven, no vehicle speed sensor signal transmitted to ECM (1 trip detection logic). | ·
Open or short in speed signal circuit ·
Combination meter assembly ·
ECM |
Comes on | SAE Code: P0500 |
MONITOR DESCRIPTION
If there is no speed signal from the combination meter assembly even though the ECM determines that the vehicle is being driven, the ECM interprets this as a malfunction in the speed signal circuit. The ECM then illuminates the MIL and stores this DTC.
CONFIRMATION DRIVING PATTERN
- HINT:
- ·
After repair has been completed, clear the DTC and then check that the vehicle has returned to normal by performing the following All Readiness check procedure.
·When clearing the permanent DTCs, refer to the "CLEAR PERMANENT DTC" procedure.
Connect the GTS to the DLC3.
Turn the ignition switch to ON.
Turn the GTS on.
Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).
Turn the ignition switch off and wait for at least 30 seconds.
Turn the ignition switch to ON [A].
Turn the GTS on.
Start the engine [B].
Drive the vehicle at 24 km/h (15 mph) or more for a total of 30 seconds or more [C].
- CAUTION:
-
When performing the confirmation driving pattern, obey all speed limits and traffic laws.
Stop the vehicle.
Enter the following menus: Powertrain / Engine / Trouble Codes [D].
Read the pending DTCs.
- HINT:
- ·
If a pending DTC is output, the system is malfunctioning.
·If a pending DTC is not output, perform the following procedure.
Enter the following menus: Powertrain / Engine / Utility / All Readiness.
Input the DTC: P050031.
Check the DTC judgment result.
| GTS Display | Description |
|---|---|
| NORMAL | ·
DTC judgment completed ·
System normal |
| ABNORMAL | ·
DTC judgment completed ·
System abnormal |
| INCOMPLETE | ·
DTC judgment not completed ·
Perform driving pattern after confirming DTC enabling conditions |
- HINT:
- ·
If the judgment result is NORMAL, the system is normal.
·If the judgment result is ABNORMAL, the system has a malfunction.
·If the judgment result is INCOMPLETE, perform steps [C] through [D] again.
·[A] to [D]: Normal judgment procedure.
The normal judgment procedure is used to complete DTC judgment and also used when clearing permanent DTCs.
·When clearing the permanent DTCs, do not disconnect the cable from the battery terminal or attempt to clear the DTCs during this procedure, as doing so will clear the universal trip and normal judgment histories.

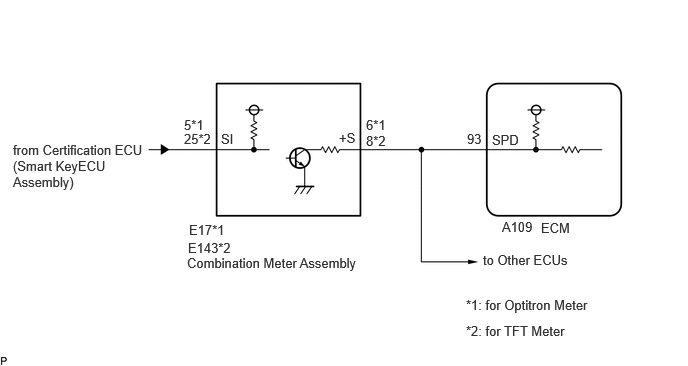

WIRING DIAGRAM
CAUTION / NOTICE / HINT
- HINT:
-
Read Freeze Frame Data using the GTS. The ECM records vehicle and driving condition information as Freeze Frame Data the moment a DTC is stored. When troubleshooting, Freeze Frame Data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air fuel ratio was lean or rich, and other data from the time the malfunction occurred.
PROCEDURE
Drive the vehicle.
Read the value displayed on the GTS.
- Powertrain > Engine > Data List
-
Tester Display Vehicle Speed - 50003 372 212
- Result:
Result Proceed to Values displayed on GTS and speedometer display not equal A Values displayed on GTS and speedometer display equal B
A
B
Disconnect the combination meter assembly connector.
Disconnect the ECM connector.
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition Click Location & Routing(A109,E8)Location & Routingewd_type=routing;type=c,c;code=A109,E8
Click Connector(A109)Engine Compartment>Engine Room Main Wire / Transmission Wire>ECMewd_type=component;type=c;code=A109;pinno=93
E6-36 (+S) - A109-93 (SPD)*1
E8-36 (+S) - A109-93 (SPD)*2Always Below 1 Ω
*1: for Optitron Meter
*2: for TFT Meter
- Result:
Proceed to OK NG
OK
NG
Check the circuits that send vehicle speed signals to this system in the combination meter system.
for Optitron Meter Type: Click hereVehicle Interior>METER / GAUGE / DISPLAY>METER / GAUGE SYSTEM (for Optitron Meter Type)>Speed Signal Circuit202303,999999,_58,_111835,_0504957,RM100000002BCXJ,
for TFT Meter Type: Click hereVehicle Interior>METER / GAUGE / DISPLAY>METER / GAUGE SYSTEM (for TFT Meter Type)>Speed Signal Circuit202303,999999,_58,_111835,_0504958,RM100000002BCXL,
- Result:
Proceed to NEXT
NEXT
Clear the DTCs.
- Powertrain > Engine > Clear DTCs
- 50002 372
Turn the ignition switch off and wait for at least 30 seconds.
- Result:
Proceed to NEXT
NEXT
Drive the vehicle in accordance with the driving pattern described in Confirmation Driving Pattern.
Read the DTCs.
- Powertrain > Engine > Trouble Codes
- 50001 372
- HINT:
-
If no DTCs (no pending DTCs) are output to the GTS, the repair has been successfully completed.
- Result:
Proceed to NEXT
NEXT
