AUDIO / VIDEO AUDIO AND VISUAL SYSTEM U11D087 Lost Local Communication with MET Missing Message

DESCRIPTION

These DTC is stored when the radio and display receiver assembly detects a communication malfunction with the combination meter assembly.

DTC No.	Detection Item	DTC Detection Condition	Trouble Area
U11D087	Lost Local Communication with MET Missing Message	Communication malfunction between radio and display receiver assembly and combination meter assembly for 30 seconds or more (2 trip detection logic)	· Open or short in local bus circuit · Harness or connector · Combination meter assembly · Radio and display receiver assembly

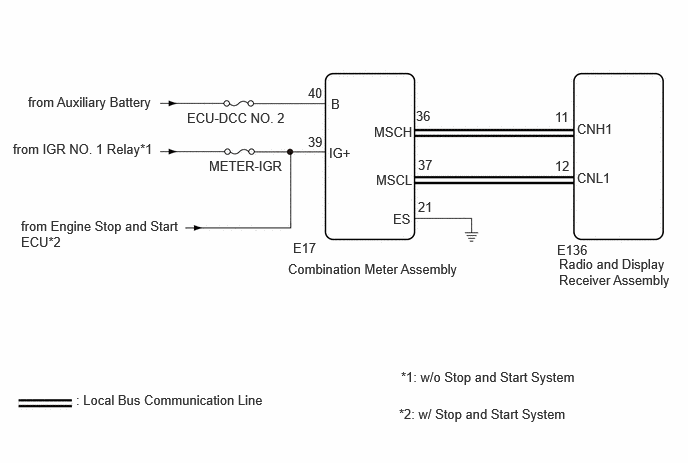

WIRING DIAGRAM

0.292,0.979 1.917,1.26 1.625,0.281 10 false from Auxiliary Battery 0.135,1.469 1.781,1.875 1.646,0.406 10 false from IGR NO. 1 Relay*1 1.948,1.146 3.031,1.385 1.083,0.24 10 false ECU-DCC NO. 2 3.208,0.885 3.448,1.104 0.24,0.219 10 false 40 3.208,1.396 3.448,1.615 0.24,0.219 10 false 39 3.448,1 3.688,1.219 0.24,0.219 10 false B 3.427,1.51 3.781,1.792 0.354,0.281 10 false IG+ 3.896,1.292 4.354,1.51 0.458,0.219 10 false MSCH 3.917,1.792 4.375,2.01 0.458,0.219 10 false MSCL 4.177,3.844 6.615,4.281 2.438,0.438 10 false *1: w/o Stop and Start System 3.052,2.5 3.51,2.719 0.458,0.219 10 false E17 4.094,2.198 4.344,2.385 0.25,0.188 10 false ES 6.01,1.26 6.417,1.427 0.406,0.167 10 false CNH1 6.01,1.771 6.396,1.958 0.385,0.188 10 false CNL1 5.802,2.521 6.26,2.74 0.458,0.219 10 false E136 5.823,2.667 7.042,3.115 1.219,0.448 10 false Radio and Display Receiver Assembly 5.781,1.135 6.021,1.354 0.24,0.219 10 false 11 5.781,1.646 6.021,1.865 0.24,0.219 10 false 12 0.792,4.083 2.802,4.281 2.01,0.198 10 false : Local Bus Communication Line 4.333,1.125 4.792,1.344 0.458,0.219 10 false 36 4.354,1.635 4.813,1.854 0.458,0.219 10 false 37 4.354,2.073 4.813,2.292 0.458,0.219 10 false 21 2.177,1.646 3.823,2.052 1.646,0.406 10 false METER-IGR 3,2.719 4.833,2.958 1.833,0.24 10 false Combination Meter Assembly 4.156,4.229 6.594,4.667 2.438,0.438 10 false *2: w/ Stop and Start System 0.219,2.271 1.917,2.698 1.698,0.427 10 false from Engine Stop and Start ECU*2

CAUTION / NOTICE / HINT

NOTICE:

Depending on the parts that are replaced during vehicle inspection or maintenance, performing initialization, registration or calibration may be needed.

Click hereAudio / Visual / Telematics>AUDIO / VIDEO>AUDIO AND VISUAL SYSTEM>PRECAUTION202303,202409,_56,_111822,_0502892,RM10000000297AN,202409,999999,_56,_111822,_0502892,RM100000002OPTJ,

Inspect the fuses and relays related to this system before inspecting the suspected areas below.

When replacing the combination meter assembly, make sure to replace it with a new one. If a combination meter assembly which was installed to another vehicle is used, the information stored in the combination meter assembly will not match the information from the vehicle and a DTC may be stored.

Before measuring the resistance of the CAN bus, turn the ignition switch off and leave the vehicle for 1 minute or more without operating the key, switches or opening or closing the doors. After that, disconnect the cable from the negative (-) auxiliary battery terminal and leave the vehicle for 1 minute or more before measuring the resistance.

After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.

Click hereAudio / Visual / Telematics>AUDIO / VIDEO>AUDIO AND VISUAL SYSTEM>PRECAUTION202303,202409,_56,_111822,_0502892,RM10000000297AN,202409,999999,_56,_111822,_0502892,RM100000002OPTJ,

When disconnecting the cable from the negative (-) auxiliary battery terminal, refer toAudio / Visual / Telematics>AUDIO / VIDEO>AUDIO AND VISUAL SYSTEM>PRECAUTION202303,202409,_56,_111822,_0502892,RM10000000297AN,202409,999999,_56,_111822,_0502892,RM100000002OPTJ,

HINT:: When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.; Click hereAudio / Visual / Telematics>AUDIO / VIDEO>AUDIO AND VISUAL SYSTEM>PRECAUTION202303,202409,_56,_111822,_0502892,RM10000000297AN,202409,999999,_56,_111822,_0502892,RM100000002OPTJ,

HINT:: ·

Before disconnecting related connectors for inspection, push in on the connector body to check that each connector is not loose or disconnected.

·

When a connector is disconnected, check that the terminals and connector body are not cracked, deformed or corroded.

PROCEDURE

1.CHECK HARNESS AND CONNECTOR (RADIO AND DISPLAY RECEIVER ASSEMBLY - COMBINATION METER ASSEMBLY)

Disconnect the E17 combination meter assembly connector.

Disconnect the E136 radio and display receiver assembly connector.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
Click Location & Routing(E17,E136)Location & Routingewd_type=routing;type=c,c;code=E17,E136 Click Connector(E17)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>Combination Meter Assemblyewd_type=component;type=c;code=E17;pinno=36,37 Click Connector(E136)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>Navigation Receiver Assemblyewd_type=component;type=c;code=E136;pinno=11,12
E17-36 (MSCH) - E136-11 (CNH1)	Always	Below 1 Ω
E17-37 (MSCL) - E136-12 (CNL1)	Always	Below 1 Ω
E17-36 (MSCH) or E136-11 (CNH1) - Body Ground	Always	10 kΩ or higher
E17-37 (MSCL) or E136-12 (CNL1) - Body Ground	Always	10 kΩ or higher

Result:

Proceed to
OK
NG

2.INSPECT RADIO AND DISPLAY RECEIVER ASSEMBLY

REPAIR OR REPLACE HARNESS OR CONNECTOR

2.INSPECT RADIO AND DISPLAY RECEIVER ASSEMBLY

Pre-procedure1

Disconnect the cable from the negative (-) auxiliary battery terminal.

Disconnect the E17 combination meter assembly connector.

Procedure1

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
Click Location & Routing(E17)Location & Routingewd_type=routing;type=c;code=E17 Click Connector(E17)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>Combination Meter Assemblyewd_type=component;type=c;code=E17;pinno=36,37
E17-36 (MSCH) - E17-37 (MSCL)	Cable disconnected from negative (-) auxiliary battery terminal	108 to 132 Ω

Tester Connection

Condition

Specified Condition

Click Location & Routing(E17)Location & Routingewd_type=routing;type=c;code=E17

Click Connector(E17)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>Combination Meter Assemblyewd_type=component;type=c;code=E17;pinno=36,37

E17-36 (MSCH) - E17-37 (MSCL)

Cable disconnected from negative (-) auxiliary battery terminal

108 to 132 Ω

Result:

Proceed to
OK
NG

Post-procedure1

None

REPLACE COMBINATION METER ASSEMBLY

Click hereVehicle Interior>METER / GAUGE / DISPLAY>COMBINATION METER>REMOVAL202303,202406,_58,_111835,_0501288,RM100000002AL91,202406,999999,_58,_111835,_0501288,RM100000002MQF3,

REPLACE RADIO AND DISPLAY RECEIVER ASSEMBLY

Click hereAudio / Visual / Telematics>AUDIO / VIDEO>RADIO RECEIVER>REMOVAL202303,999999,_56,_111822,_0500651,RM1000000029SFX,
