RM38N0EC _59 Vehicle Exterior _111834 LIGHTING (EXT) _0499888 HEADLIGHT ASSEMBLY A

LIGHTING (EXT)  HEADLIGHT ASSEMBLY  INSTALLATION


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.



PROCEDURE

Hide 81150 1.INSTALL HEADLIGHT ASSEMBLY

a.

Connect the 2 connectors.


b.
E475173
0,0 0,0 false
V113147

Install in this Direction

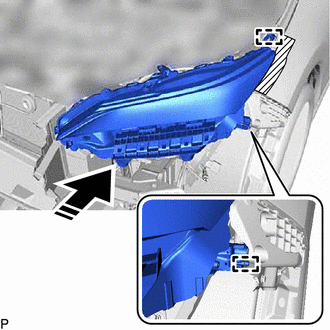

Engage the 2 guides to temporarily install the headlight assembly as shown in the illustration.


c.
E475170C01
3.021,1.417 3.25,1.615 0.229,0.198 10 true *a 2.833,0.135 3.063,0.333 0.229,0.198 10 true *b 1.75,0.385 1.979,0.583 0.229,0.198 10 true *b 0.854,0.719 1.083,0.917 0.229,0.198 10 true *b
*a Bolt
*b Screw


Install the headlight assembly with the bolt and 3 screws.

Torque:
Bolt : 5.4 N*m (55 kgf*cm, 48 in.*lbf)


d.

Remove the protective tape.
