LIGHTING (EXT)  REAR COMBINATION LIGHT ASSEMBLY  INSTALLATION


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.



PROCEDURE

Hide 81560 1.INSTALL REAR COMBINATION LIGHT ASSEMBLY

Hide 3.INSTALL REAR COMBINATION LIGHT ASSEMBLY WITH RETAINER

a.

Engage the grommet.


b.

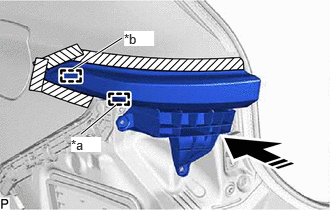

E475187C01
0.844,1.396 1.208,1.094 true 0.76,0.719 1.271,0.396 true 0.74,1.427 1.052,1.583 0.313,0.156 10 true *a 1.292,0.323 1.604,0.479 0.313,0.156 10 true *b
*a Pin
*b Guide
V113147

Install in this Direction


Engage the guide and pin to temporarily install the rear combination light assembly with retainer as shown in the illustration.


c.

Install the rear combination light assembly with retainer with the 4 screws.


d.

Remove the protective tape.


e.

Connect the connector.


f.

Engage the clamp.


Hide 64740C 4.INSTALL DECK TRIM SIDE PANEL ASSEMBLY

a.

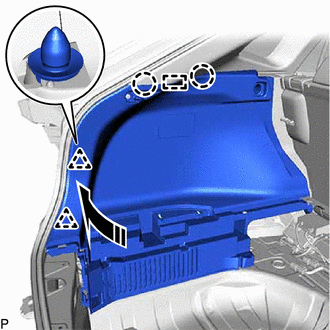

E475183C01
0,0 0,0 false
V113147

Install in this Direction


Engage the guide, 2 claws and 2 clips as shown in the illustration to install the deck trim side panel assembly.


b.

Install the clip.
