EXTERIOR PANELS / TRIM REAR BUMPER INSTALLATION
CAUTION / NOTICE / HINT
- HINT:
-
When the rear bumper is damaged or deformed due to an accident or contact with other objects, etc., or the bumper installation area on the body is repaired, it is necessary to perform ultrasonic sensor detection angle measurement.
PROCEDURE
1.INSTALL REAR BUMPER ASSEMBLY
|
Install in this Direction |

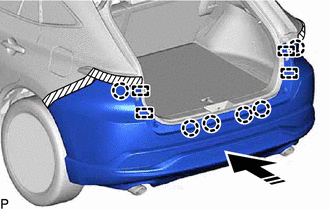

Engage the 4 guides and 6 claws as shown in the illustration.
Connect each connector.
|
|
Install in this Direction |

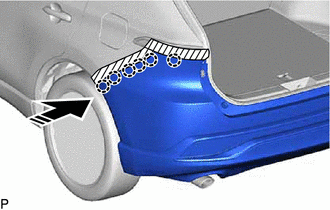

Engage the 6 claws as shown in the illustration.
- HINT:
-
Use the same procedure for the RH side and LH side.
Install the clip.
- HINT:
-
Use the same procedure for the RH side and LH side.
Install the 6 clips.
Install the 2 screws.
Install the rear bumper assembly with the 2 rear bumper upper stoppers.
81498
2.INSTALL REAR COMBINATION LIGHT COVER LH
Engage the 4 claws to install the rear combination light cover LH.
81497
3.INSTALL REAR COMBINATION LIGHT COVER RH
- HINT:
-
Use the same procedure as for the LH side.
4.CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL (w/ Kick Sensor)
for A25F-FXS, A25D-FXS:
for M20D-FKS, M20C-FKS:
5.PERFORM INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL (w/ Kick Sensor)
- HINT:
-
When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.
65351A
6.INSTALL BATTERY HOLE COVER (for HV Model)
58416K
7.INSTALL REAR NO. 2 FLOOR BOARD (for HV Model)
891B0
8.INSPECT KICK DOOR CONTROL SENSOR ASSEMBLY (w/ Kick Sensor)
