SEAT BELT  FRONT SEAT INNER BELT ASSEMBLY(for Power Seat)  INSTALLATION


CAUTION / NOTICE / HINT

CAUTION:

Wear protective gloves. Sharp areas on the parts may injure your hands.


PROCEDURE

Hide 73240 1.INSTALL FRONT SEAT INNER BELT ASSEMBLY (for Driver Side)

a.

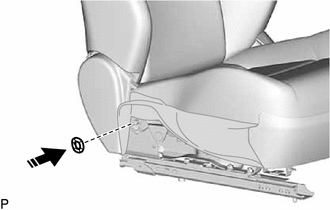

B585699C01
0,0 0,0 false
V113147

Install in this Direction


Install the front seat belt anchor plate as shown in the illustration.


b.

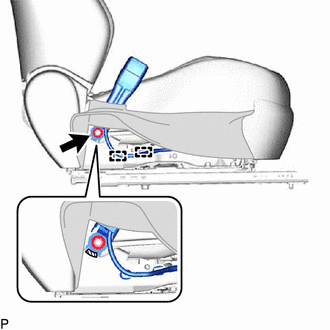

B585700C01
0,0 0,0 false
V100155

Protruding Part


Install the front seat inner belt assembly with the nut.

Torque:
42 N*m (428 kgf*cm, 31 ft.*lbf)

NOTICE:

Do not allow the anchor part of the front seat inner belt assembly to overlap the protruding part of the separate type front seat cushion spring assembly.



c.

Engage each clamp.


Hide 73230 2.INSTALL FRONT SEAT INNER BELT ASSEMBLY (for Front Passenger Side)

a.

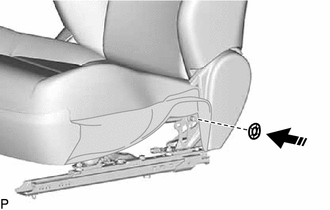

B585701C01
0,0 0,0 false
V113147

Install in this Direction


Install the front seat belt anchor plate as shown in the illustration.


b.

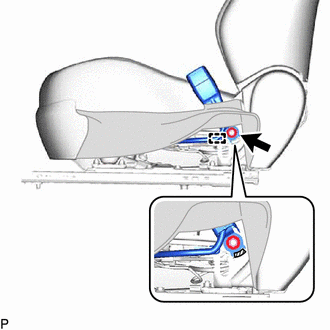

B585702C01
0,0 0,0 false
V100155

Protruding Part


Install the front seat inner belt assembly with the nut.

Torque:
42 N*m (428 kgf*cm, 31 ft.*lbf)

NOTICE:

Do not allow the anchor part of the front seat inner belt assembly to overlap the protruding part of the separate type front seat cushion spring assembly.



c.

Engage each clamp.
