EXTERIOR PANELS / TRIM  FRONT FENDER  REASSEMBLY


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.



PROCEDURE

Hide 53154D 1.INSTALL RADIATOR GRILLE SIDE AIR GUIDE

HINT:

Perform this procedure only when replacement of the radiator grille seal is necessary.


a.

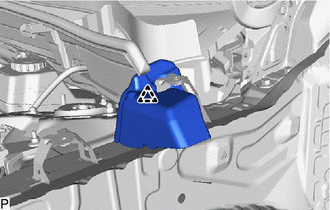

B635796

Engage the clip to install the radiator grille seal.


Hide 53802 2.INSTALL FRONT FENDER SUB-ASSEMBLY

a.

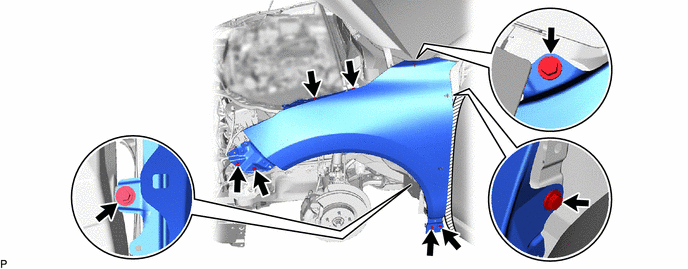

Install the front fender sub-assembly with the 9 bolts.

B635794


b.

Remove the protective tape.


Hide 53156J 3.INSTALL RADIATOR GRILLE SEAL

HINT:

Perform this procedure only when replacement of the radiator grille seal is necessary.


a.

Install the radiator grille seal as shown in the illustration.

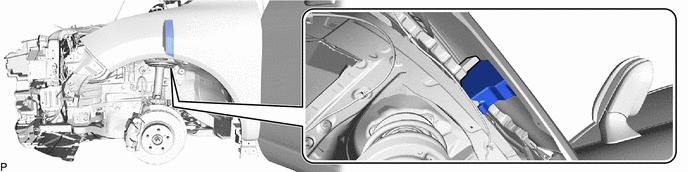

B635797


Hide 53828K 4.INSTALL FRONT FENDER SIDE PANEL PROTECTOR

a.

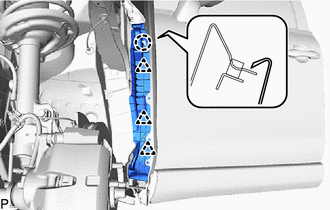

B635793

Engage the claw and 3 clips to install the front fender side panel protector.


Hide 53883B 5.INSTALL FRONT FENDER SEAL

a.

Engage the 2 clips.

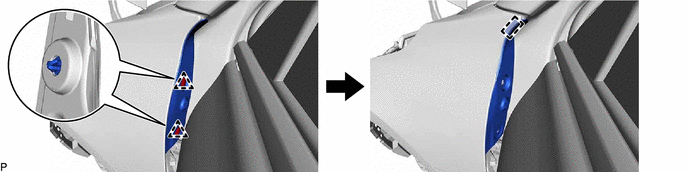

B678162


b.

Engage the guide to install the front fender seal.


Hide 53808E 7.INSTALL FENDER APRON MUDGUARD SEAL SUB-ASSEMBLY

a.

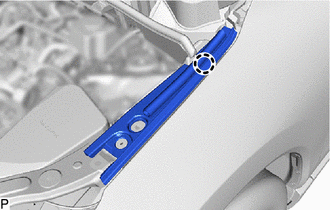

B635792

Engage the claw to install the fender apron mudguard seal sub-assembly.


Hide 53384B 8.INSTALL HOOD CENTER CUSHION

a.

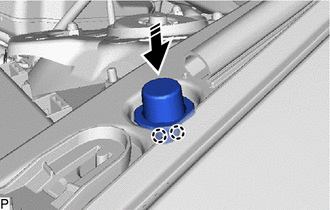

B635791
0,0 0,0 false
V113147

Install in this Direction


Engage the 2 claws to install the hood center cushion as shown in the illustration.

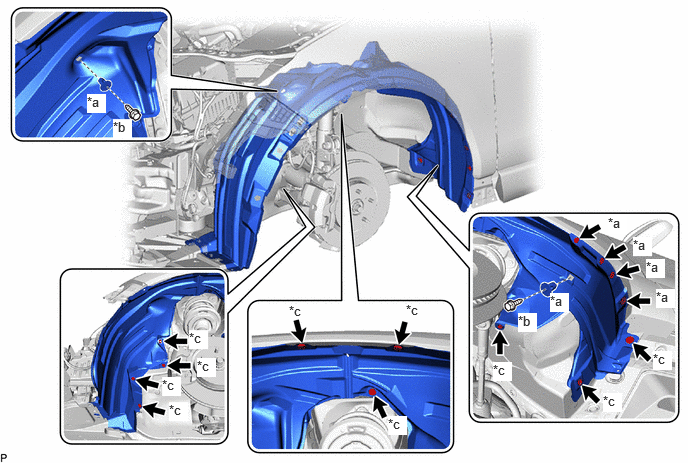

Hide 53876A 9.INSTALL FRONT FENDER LINER

a.

Install 6 new grommets.

B635789C01
6.802,3.656 7,3.854 0.198,0.198 10 true *c 6.333,2.24 6.531,2.438 0.198,0.198 10 true *a 5.135,3.771 5.333,3.969 0.198,0.198 10 true *c 4.229,3.146 4.427,3.344 0.198,0.198 10 false *c 4.042,4.333 4.24,4.531 0.198,0.198 10 true *c 0.906,0.979 1.104,1.177 0.198,0.198 10 true *a 1.177,1.24 1.375,1.438 0.198,0.198 10 true *b 6.594,2.469 6.792,2.667 0.198,0.198 10 true *a 6.729,2.698 6.927,2.896 0.198,0.198 10 true *a 6.833,3.01 7.031,3.208 0.198,0.198 10 true *a 6.281,4.094 6.479,4.292 0.198,0.198 10 true *c 5.729,3.052 5.927,3.25 0.198,0.198 10 true *a 5.396,3.26 5.594,3.458 0.198,0.198 10 true *b 3.01,3.156 3.208,3.354 0.198,0.198 10 false *c 1.969,3.438 2.167,3.635 0.198,0.198 10 true *c 2.052,3.729 2.25,3.927 0.198,0.198 10 true *c 1.688,3.927 1.885,4.125 0.198,0.198 10 true *c 1.76,4.188 1.958,4.385 0.198,0.198 10 true *c
*a Grommet *b Screw
*c Clip - -



b.

Install the front fender liner with the 2 screws and 10 clips.


Hide 53896B 10.INSTALL FRONT FENDER FRONT SPLASH SHIELD

a.

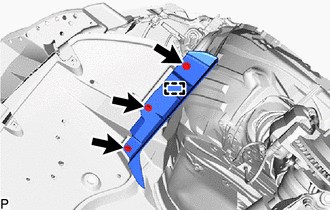

B635788

Engage the hook.


b.

Install the wheel opening extension pad with the 3 screws.
