RM38N0EC _58 Vehicle Interior _111839 SEAT _0525816 SEAT HEATER CONTROL(for GTMC Made) A

SEAT SEAT HEATER CONTROL(for GTMC Made) INSTALLATION

CAUTION / NOTICE / HINT

CAUTION:: Wear protective gloves. Sharp areas on the parts may injure your hands.

HINT:: ·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.

Hide Display 87501B 1.INSTALL SEAT HEATER CONTROL SUB-ASSEMBLY

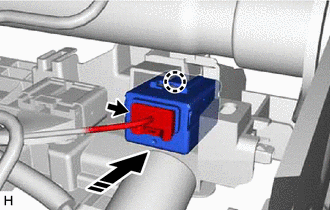

Install in this Direction

Engage the claw to install the seat heater control sub-assembly as shown in the illustration.

Connect the connector.

Hide Display 2.INSTALL FRONT SEAT ASSEMBLY
