RM38N0EC _58 Vehicle Interior _111839 SEAT _0525813 LUMBAR SUPPORT ADJUSTER ASSEMBLY(for GTMC Made) A

SEAT LUMBAR SUPPORT ADJUSTER ASSEMBLY(for GTMC Made) INSTALLATION

CAUTION / NOTICE / HINT

CAUTION:: Wear protective gloves. Sharp areas on the parts may injure your hands.

Hide Display 71587 1.INSTALL FRONT SEATBACK EDGE PROTECTOR

Hide Display 85867A 2.INSTALL SEATBACK CLIMATE CONTROL BLOWER (w/ Climate Control Seat System)

Hide Display 79977A 3.INSTALL SEATBACK FELT

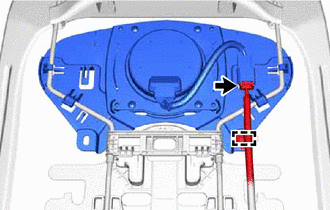

Hide Display 72760D 4.INSTALL LUMBAR SUPPORT ADJUSTER ASSEMBLY LH

Install in this Direction

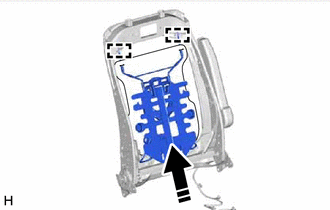

Engage the 2 guides to install the lumbar support adjuster assembly LH to the front seatback frame sub-assembly as shown in the illustration.

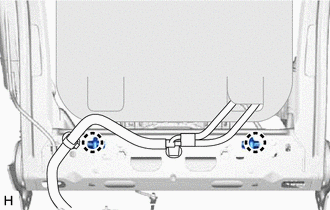

Engage the 2 claws to install the 2 front seatback edge protectors to the front seatback frame sub-assembly.

Connect each connector and engage each clamp.

w/ Climate Control Seat System

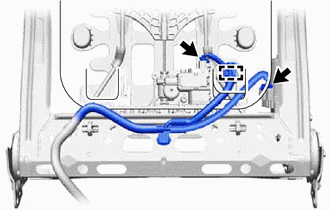

Engage the wire harness clamp and connect the connector.

Hide Display 5.INSTALL SEPARATE TYPE FRONT SEATBACK COVER WITH PAD

Hide Display 71931 6.INSTALL FRONT SEAT HEADREST SUPPORT

Hide Display 7.INSTALL SEPARATE TYPE FRONT SEATBACK ASSEMBLY

Hide Display 71862 8.INSTALL FRONT SEAT INNER CUSHION SHIELD

Hide Display 71812D 9.INSTALL FRONT SEAT CUSHION SHIELD

Hide Display 71868N 10.INSTALL FRONT SEAT FRONT CUSHION SHIELD

Hide Display 71074S 11.CONNECT SEPARATE TYPE FRONT SEATBACK COVER

Hide Display 12.INSTALL FRONT SEAT ASSEMBLY
