SEAT  FRONT POWER SEAT MOTOR ASSEMBLY  INSTALLATION


CAUTION / NOTICE / HINT

CAUTION:
B543257

Wear protective gloves. Sharp areas on the parts may injure your hands.


PROCEDURE

Hide 1.INSTALL POWER SEAT TILT MOTOR ASSEMBLY LH

a.

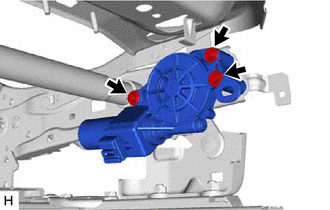

B564762

Install the power seat tilt motor assembly LH with the 3 bolts.

Torque:
5.0 N*m (51 kgf*cm, 44 in.*lbf)

NOTICE:

Bolt (A) is shorter than bolt (B). Make sure to install them to the correct positions.



Hide 2.INSTALL POWER SEAT LIFTER MOTOR ASSEMBLY LH

a.

Install the power seat lifter motor assembly LH.

i.
B564970

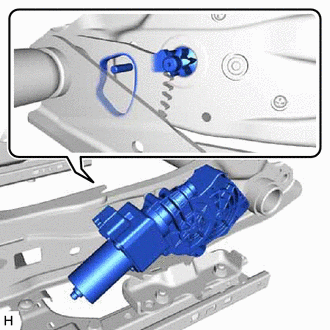

*a Stud Bolt of the Front Seat Vertical Housing Sub-assembly
*b Hole of the Front Seat Adjuster Assembly
*c Front Seat Vertical Housing Sub-assembly
*d Front Seat Adjuster Assembly


Install the front seat vertical housing sub-assembly.

NOTICE:
·

Make sure to insert the stud bolt of the front seat vertical housing sub-assembly into the hole of the front seat adjuster assembly as shown in the illustration.

·

Make sure to position the front seat adjuster assembly so that when the front seat vertical housing sub-assembly is installed, their gears will be positioned as shown in the illustration.




ii.

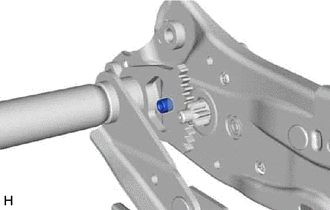

B564760

Install the vertical adjuster spacer.


iii.

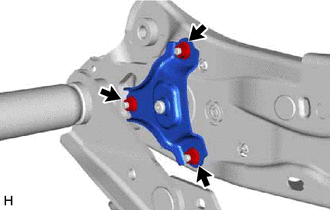

B564759

Install the front seat adjuster plate with the 3 nuts.

Torque:
5.0 N*m (51 kgf*cm, 44 in.*lbf)

NOTICE:

Tighten the nuts in the order shown in the illustration.




Hide 82191 3.CONNECT FRONT SEAT WIRE

a.

Connect each connector and engage each clamp.

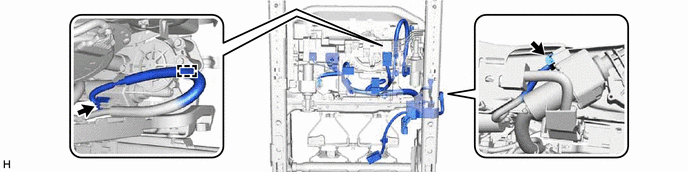

B589024
