RM38N0EC _58 Vehicle Interior _111842 POWER OUTLETS (INT) _0500731 POWER OUTLET SOCKET(for Instrument Panel) A

POWER OUTLETS (INT) POWER OUTLET SOCKET(for Instrument Panel) REMOVAL

PROCEDURE

Hide Display 55900 1.REMOVE AIR CONDITIONING CONTROL ASSEMBLY

Click hereVehicle Interior>HEATING / AIR CONDITIONING>AIR CONDITIONING PANEL>REMOVAL202111,999999,_58,_111841,_0499807,RM100000001Z0A5,

Hide Display 58925B 2.REMOVE UPPER CONSOLE BOX INSULATOR

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>REMOVAL202203,202303,_58,_111843,_0501135,RM10000000226IL_01_0127,202303,202406,_58,_111843,_0501135,RM100000002AL9I_01_0127,202406,999999,_58,_111843,_0501135,RM100000002MQF5_01_0127,

Hide Display 58813 3.REMOVE UPPER CONSOLE BOX (w/o Wireless Charger)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>REMOVAL202203,202303,_58,_111843,_0501135,RM10000000226IL_01_0135,202303,202406,_58,_111843,_0501135,RM100000002AL9I_01_0135,202406,999999,_58,_111843,_0501135,RM100000002MQF5_01_0135,

Hide Display 4.REMOVE WIRELESS CHARGER ASSEMBLY (w/ Wireless Charger)

Click hereVehicle Interior>POWER OUTLETS (INT)>WIRELESS CHARGER ASSEMBLY>REMOVAL202203,999999,_58,_111842,_0525420,RM10000000226MH_01_0148,

Hide Display 85532 5.REMOVE USB CHARGER SOCKET

a.

E474494C01

0,0 0,0 false

V113147

Remove in this Direction

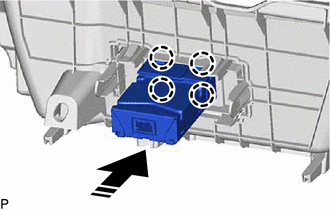

Disengage the 4 claws and remove the USB charger socket as shown in the illustration.
