EXTERIOR PANELS / TRIM  REAR BUMPER  DISASSEMBLY

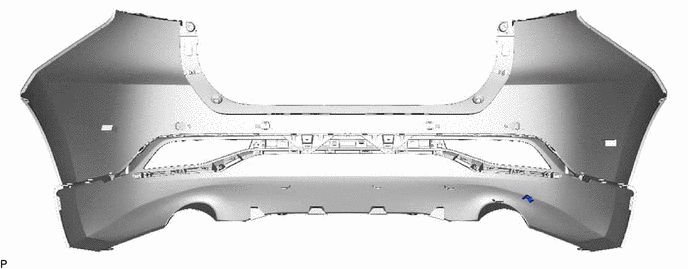

891B0 1.REMOVE KICK DOOR CONTROL SENSOR ASSEMBLY

89342A 2.REMOVE REAR CENTER ULTRASONIC SENSOR (w/ TOYOTA Parking Assist-sensor System)

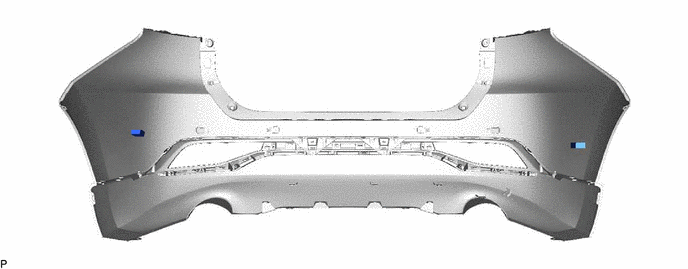

89342 3.REMOVE REAR CORNER ULTRASONIC SENSOR (w/ TOYOTA Parking Assist-sensor System)

89C48B 4.REMOVE REAR CENTER ULTRASONIC SENSOR RETAINER (w/ TOYOTA Parking Assist-sensor System)

89C48A 5.REMOVE REAR CORNER ULTRASONIC SENSOR RETAINER (w/ TOYOTA Parking Assist-sensor System)

6.REMOVE REAR TURN SIGNAL LIGHT ASSEMBLY LH

7.REMOVE REAR TURN SIGNAL LIGHT ASSEMBLY RH

82182 8.REMOVE NO. 2 LUGGAGE ROOM WIRE

a.

for SFTM Made:

i.

Disengage each clamp to remove the No. 2 luggage room wire.

b.

for GTMC Made:

i.

Disengage each clamp to remove the No. 2 luggage room wire.

9.REMOVE ULTRASONIC SENSOR CLIP

a.

Remove the ultrasonic sensor clip.

52462B 10.REMOVE REAR BUMPER PAD

a.

Remove the 2 rear bumper pads.

52169C 11.REMOVE REAR BUMPER LOWER COVER

a.

for SFTM Made:

i.

Remove the 6 clips.

ii.

Remove the 2 screws.

iii.

Disengage the 12 claws and 2 guides to remove the rear bumper lower cover from the rear bumper cover.

b.

for GTMC Made:

i.

Remove the 6 clips.

ii.

Remove the 2 screws.

iii.

Disengage the 12 claws and 2 guides to remove the rear bumper lower cover from the rear bumper cover.

52751 12.REMOVE REAR BUMPER MOULDING

a.

for SFTM Made:

i.

Remove the 5 screws.

ii.

Disengage the 9 claws to remove the rear bumper moulding.

b.

for GTMC Made:

i.

Remove the 5 screws.

ii.

Disengage the 9 claws to remove the rear bumper moulding.

52151G 13.REMOVE REAR BUMPER EXTENSION (for GTMC Made)

a.

Remove the 2 clips and screws.

b.

Disengage the 5 claws and 2 guides to rear bumper extension.

52592 14.REMOVE REAR BUMPER SIDE SEAL LH

HINT:

Perform this procedure only when replacement of the rear bumper side seal LH is necessary.

a.

Remove the 2 clips.

b.

Disengage the claw to remove the rear bumper side seal LH.

52591 15.REMOVE REAR BUMPER SIDE SEAL RH

HINT:

Perform this procedure only when replacement of the rear bumper side seal RH is necessary.

a.

Remove the 3 clips.

b.

Disengage the claw to remove the rear bumper side seal RH.

16.REMOVE REAR COMBINATION LIGHT ASSEMBLY WITH RETAINER LH

17.REMOVE REAR COMBINATION LIGHT ASSEMBLY WITH RETAINER RH

52563D 18.REMOVE REAR BUMPER UPPER RETAINER LH

HINT:

Perform this procedure only when replacement of the rear bumper upper retainer LH is necessary.

a.

Disengage the 2 guides to remove the rear bumper upper retainer LH from the rear combination light assembly LH.

52562E 19.REMOVE REAR BUMPER UPPER RETAINER RH

52156A 20.REMOVE REAR BUMPER SIDE SUPPORT LH

HINT:

Perform this procedure only when replacement of the rear bumper side support LH is necessary.

a.

for SFTM Made:

i.

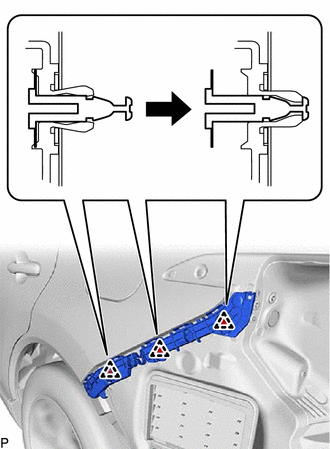

Disengage the 3 screws.

ii.

Disengage the 2 claws and 3 guides as shown in the illustration to remove the rear bumper side support LH.

b.

for GTMC Made:

i.

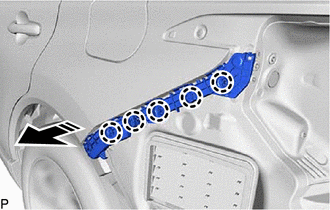

Disengage the 3 clips as shown in the illustration.

ii.

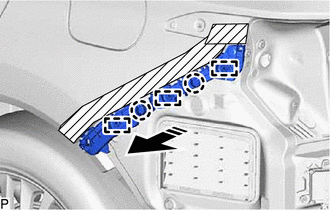

0,0 0,0 false

Remove in this Direction

Disengage the 5 claws as shown in the illustration to remove the rear bumper side support LH.

52155A 21.REMOVE REAR BUMPER SIDE SUPPORT RH

52188A 22.REMOVE REAR BUMPER ARM REINFORCEMENT LH

HINT:

Perform this procedure only when replacement of the rear bumper arm reinforcement LH is necessary.

a.

0,0 0,0 false

Remove in this Direction

Disengage the 3 claws as shown in the illustration to remove the rear bumper arm reinforcement LH.

52187A 23.REMOVE REAR BUMPER ARM REINFORCEMENT RH

52171C 24.REMOVE REAR BUMPER REINFORCEMENT

HINT:

Perform this procedure only when replacement of the rear bumper reinforcement is necessary.

a.

Remove the 6 bolts to remove the rear bumper reinforcement.
