METER / GAUGE / DISPLAY  HEADUP DISPLAY  INSTALLATION


PROCEDURE

Hide 83108 1.INSTALL METER MIRROR SUB-ASSEMBLY

a.

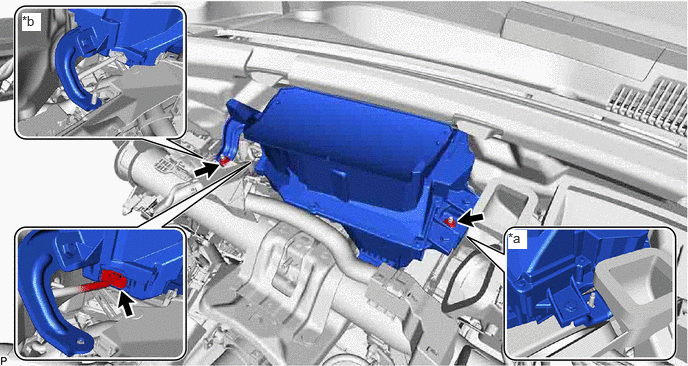

Pass the right side installation hole through the stud bolt.

E447047C01
5.292,2.396 5.49,2.594 0.198,0.198 10 true *a 0.229,0.135 0.427,0.323 0.198,0.188 10 true *b
*a Right Side *b Left Side



b.

Connect the connector.


c.

Pass the left side installation hole through the stud bolt to temporarily set the meter mirror sub-assembly.


d.

Install the meter mirror sub-assembly with the 2 nuts.

Torque:
10 N*m (102 kgf*cm, 7 ft.*lbf)
