WIPER / WASHER  WIPER AND WASHER SYSTEM  Washer Motor Circuit


DESCRIPTION

When the windshield washer motor and pump assembly receives signals from the windshield wiper relay assembly, it operates to spray washer fluid from the washer nozzle sub-assemblies.

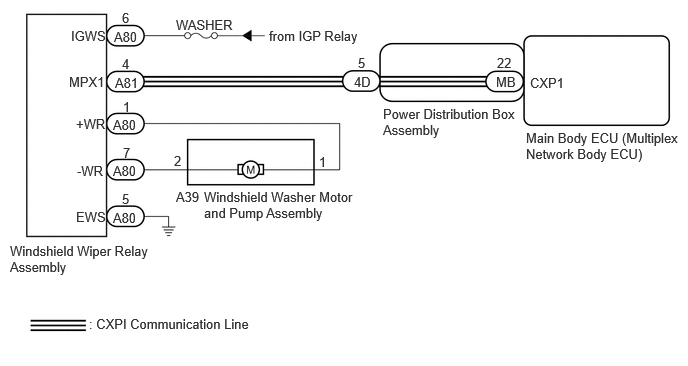

WIRING DIAGRAM

E445704E06
0.74,0.292 1.354,0.49 0.615,0.198 10 false IGWS 0.719,0.771 1.333,0.969 0.615,0.198 10 false MPX1 0.792,1.208 1.25,1.406 0.458,0.198 10 false +WR 0.802,1.698 1.26,1.896 0.458,0.198 10 false -WR 0.792,2.177 1.25,2.375 0.458,0.198 10 false EWS 1.177,2.188 1.49,2.385 0.313,0.198 10 false A80 1.198,0.781 1.51,0.979 0.313,0.198 10 false A81 1.271,0.104 1.427,0.302 0.156,0.198 10 false 6 1.271,0.583 1.427,0.781 0.156,0.198 10 false 4 1.281,1.031 1.438,1.229 0.156,0.198 10 false 1 1.281,1.51 1.438,1.708 0.156,0.198 10 false 7 1.271,1.99 1.427,2.188 0.156,0.198 10 false 5 0.104,2.531 1.615,3.125 1.51,0.594 10 false Windshield Wiper Relay Assembly 1.813,1.594 1.969,1.792 0.156,0.198 10 false 2 3.323,1.604 3.479,1.802 0.156,0.198 10 false 1 1.833,1.969 2.146,2.167 0.313,0.198 10 false A39 2.125,1.969 3.74,2.948 1.615,0.979 10 false Windshield Washer Motor and Pump Assembly 3.688,0.771 4,0.969 0.313,0.198 10 false 4D 5.479,1.354 7.115,2.219 1.635,0.865 10 false Main Body ECU (Multiplex Network Body ECU) 5.521,0.781 6.135,0.979 0.615,0.198 10 false CXP1 3.729,0.573 3.885,0.781 0.156,0.208 10 false 5 2.802,0.292 4.188,0.573 1.385,0.281 10 false from IGP Relay 1.833,0.177 2.75,0.375 0.917,0.198 10 false WASHER 0.927,3.292 4.75,3.49 3.823,0.198 10 false : CXPI Communication Line 1.177,1.698 1.49,1.896 0.313,0.198 10 false A80 1.177,1.219 1.49,1.417 0.313,0.198 10 false A80 1.188,0.302 1.5,0.5 0.313,0.198 10 false A80 5.167,0.771 5.479,0.969 0.313,0.198 10 false MB 5.177,0.573 5.49,0.771 0.313,0.198 10 false 22 3.99,1.104 5.427,1.938 1.438,0.833 10 false Power Distribution Box Assembly

CAUTION / NOTICE / HINT

NOTICE:

Inspect the fuses of circuits related to this system before performing the following procedure.


PROCEDURE

1.PERFORM ACTIVE TEST USING GTS
a.

Perform the Active Test according to the display on the GTS.

Body Electrical > Main Body > Active Test
Tester Display Measurement Item Control Range Diagnostic Note
Front Washer Relay Function to operate the windshield washer motor and pump assembly (Front) OFF or ON -
Rear Washer Relay Function to operate the windshield washer motor and pump assembly (Rear) OFF or ON -
Body Electrical > Main Body > Active Test
Tester Display
Front Washer Relay
50004 449 71
Body Electrical > Main Body > Active Test
Tester Display
Rear Washer Relay
50004 449 76
OK:

Windshield washer motor and pump assembly operates normally.



Result:
Proceed to
OK
NG



OK

NG

2.INSPECT WINDSHIELD WASHER MOTOR AND PUMP ASSEMBLY
2.INSPECT WINDSHIELD WASHER MOTOR AND PUMP ASSEMBLY
a.


Result:
Proceed to
OK
NG



OK

3.CHECK HARNESS AND CONNECTOR (POWER SOURCE - WINDSHIELD WIPER RELAY ASSEMBLY)

NG

3.CHECK HARNESS AND CONNECTOR (POWER SOURCE - WINDSHIELD WIPER RELAY ASSEMBLY)
a.

Disconnect the A80 windshield wiper relay assembly connector.


b.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Condition Specified Condition

Click Location & Routing(A80)Location & Routing

Click Connector(A80)Instrument Panel>Engine Room Main Wire>Windshield Wiper Relay Assembly

A80-6 (IGWS) - Body ground Ignition switch ON 11 to 14 V



Result:
Proceed to
OK
NG



OK

4.CHECK HARNESS AND CONNECTOR (WINDSHIELD WIPER RELAY ASSEMBLY - BODY GROUND)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

4.CHECK HARNESS AND CONNECTOR (WINDSHIELD WIPER RELAY ASSEMBLY - BODY GROUND)
a.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition

Click Location & Routing(A80)Location & Routing

Click Connector(A80)Instrument Panel>Engine Room Main Wire>Windshield Wiper Relay Assembly

A80-5 (EWS) - Body ground Always Below 1 Ω



Result:
Proceed to
OK
NG



OK

5.CHECK HARNESS AND CONNECTOR (WINDSHIELD WIPER RELAY ASSEMBLY - WINDSHIELD WASHER MOTOR AND PUMP ASSEMBLY)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

5.CHECK HARNESS AND CONNECTOR (WINDSHIELD WIPER RELAY ASSEMBLY - WINDSHIELD WASHER MOTOR AND PUMP ASSEMBLY)
a.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition

Click Location & Routing(A80,A39)Location & Routing

Click Connector(A80)Instrument Panel>Engine Room Main Wire>Windshield Wiper Relay Assembly

Click Connector(A39)Engine Compartment>Engine Room Main Wire / Transmission Wire>Windshield Washer Motor and Pump Assembly

A80-1 (+WR) - A39-1 Always Below 1 Ω
A80-7 (-WR) - A39-2 Always Below 1 Ω
A80-1 (+WR) or A39-1 - Body ground Always 10 kΩ or higher
A80-7 (-WR) or A39-2 - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
