WIPER / WASHER WASHER MOTOR REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during windshield washer motor and pump assembly removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
1: Also necessary after performing a tire rotation. 2: It is not necessary to perform this procedure if the tire pressure warning valve and transmitters are installed to the same location.
Tires	· Initialization12 · Tire Position Identification12	Tire Pressure Warning System	Refer to Procedures Necessary When Replacing Parts (for Tire Pressure Warning System) (202111,202203,_V1,_111780,_0504977,RM100000001ZKRV,202203,202303,_V1,_111780,_0504977,RM1000000022CKZ,202303,202406,_V1,_111780,_0504977,RM100000002AA1Y,202406,202409,_V1,_111780,_0504977,RM100000002MO96,202409,999999,_V1,_111780,_0504977,RM100000002OMBP,)

PROCEDURE

Hide Display 1.REMOVE FRONT WHEEL RH

Click hereGeneral>MAINTENANCE>TIRE AND WHEEL>REMOVAL202111,999999,_V1,_112220,_0502516,RM100000001ZAD2,

Hide Display 53896B 2.REMOVE FRONT FENDER FRONT SPLASH SHIELD RH

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>FRONT FENDER>DISASSEMBLY202111,202203,_59,_111849,_0509433,RM100000002055H_01_0004,202203,202406,_59,_111849,_0509433,RM1000000022L3A_01_0004,202406,202409,_59,_111849,_0509433,RM100000002MPZ9_01_0004,202409,999999,_59,_111849,_0509433,RM100000002OMGF_01_0004,

Hide Display 53875A 3.REMOVE FRONT FENDER LINER RH

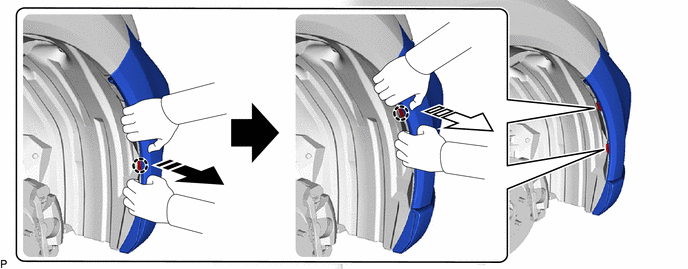

As shown in the illustration, pull the front bumper assembly horizontally to release each claw and disengage the front fender liner retainer.

0,0 0,0 false

Remove in this Direction (1)

Remove in this Direction (2)

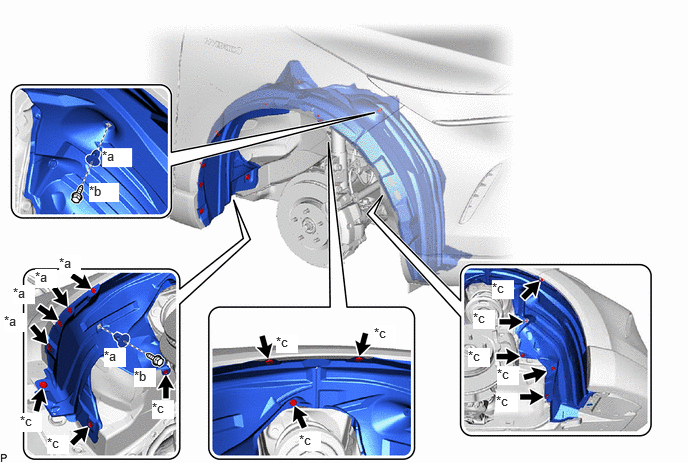

Remove the 2 screws, 6 grommets, 11 clips and front fender liner RH.

0.927,1.906 1.24,2.104 0.313,0.198 10 true *b 1.063,1.542 1.375,1.74 0.313,0.198 10 true *a 0.365,2.802 0.594,3 0.229,0.198 10 true *a 0.615,2.656 0.844,2.854 0.229,0.198 10 true *a 0.135,2.969 0.365,3.167 0.229,0.198 10 true *a 0.208,4.302 0.438,4.5 0.229,0.198 10 true *c 0.042,3.26 0.271,3.458 0.229,0.198 10 true *a 0.49,4.531 0.719,4.729 0.229,0.198 10 true *c 1.583,4.167 1.813,4.365 0.229,0.198 10 true *c 2.875,3.479 3.104,3.677 0.229,0.198 10 true *c 3.896,3.385 4.125,3.583 0.229,0.198 10 true *c 3.115,4.5 3.344,4.698 0.229,0.198 10 true *c 5.125,2.917 5.354,3.115 0.229,0.198 10 true *c 4.927,3.229 5.156,3.427 0.229,0.198 10 true *c 4.875,3.625 5.104,3.823 0.229,0.198 10 true *c 5.177,3.813 5.406,4.01 0.229,0.198 10 true *c 5.167,4.094 5.396,4.292 0.229,0.198 10 true *c 1.083,3.625 1.313,3.823 0.229,0.198 10 true *a 1.396,3.833 1.625,4.031 0.229,0.198 10 true *b

*a	Grommet	*b	Screw
*c	Clip	-	-
	Insert Screwdriver Here		Remove in this Direction

Hide Display 4.DRAIN WASHER FLUID

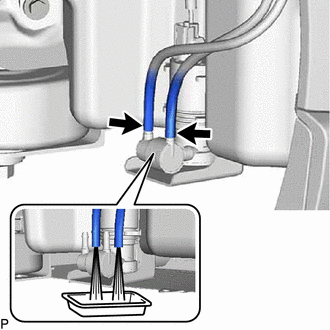

Disconnect the 2 washer hoses from the windshield washer motor and pump assembly, and drain the washer fluid.

HINT:: Use a container to collect the washer fluid.

Hide Display 85310 5.REMOVE WINDSHIELD WASHER MOTOR AND PUMP ASSEMBLY

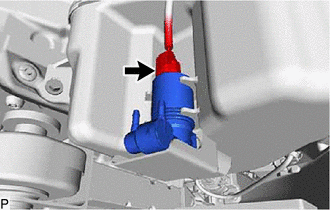

Disconnect the connector and remove the windshield washer motor and pump assembly.
