METER / GAUGE / DISPLAY METER / GAUGE SYSTEM(for Optitron Meter Type) Entire Combination Meter does not Operate

DESCRIPTION

This circuit is the power source circuit for the combination meter assembly. This circuit provides two types of power source; one is a constant power source, and the other is an IG power source.

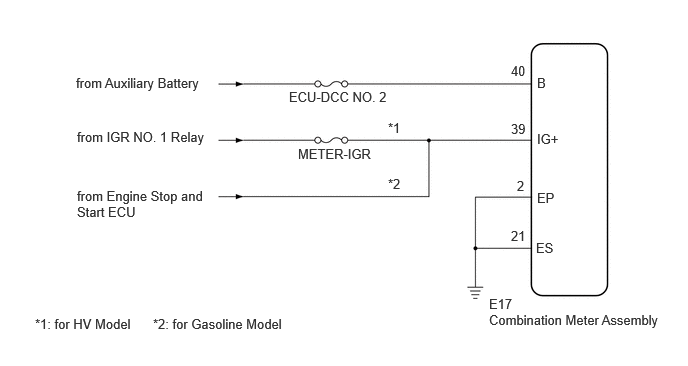

WIRING DIAGRAM

5.323,1.26 5.635,1.458 0.313,0.198 10 false 39 5.323,0.656 5.635,0.854 0.313,0.198 10 false 40 5.385,1.854 5.542,2.052 0.156,0.198 10 false 2 5.323,2.375 5.635,2.563 0.313,0.188 10 false 21 5.594,1.365 6.052,1.563 0.458,0.198 10 false IG+ 5.594,0.781 5.75,0.979 0.156,0.198 10 false B 5.594,1.979 5.906,2.177 0.313,0.198 10 false EP 5.583,2.5 5.896,2.698 0.313,0.198 10 false ES 0.802,1.958 2.135,2.479 1.333,0.521 10 false from Engine Stop and Start ECU 3.01,0.927 5,1.125 1.99,0.198 10 false ECU-DCC NO. 2 3.104,1.521 4.479,1.719 1.375,0.198 10 false METER-IGR 0.802,1.344 3.865,1.542 3.063,0.198 10 false from IGR NO. 1 Relay 0.792,0.781 4.156,0.979 3.365,0.198 10 false from Auxiliary Battery 5.094,3.083 5.552,3.281 0.458,0.198 10 false E17 5.094,3.25 7.073,3.5 1.979,0.25 10 false Combination Meter Assembly 4.042,1.25 4.354,1.448 0.313,0.198 10 false *1 4.042,1.833 4.354,2.031 0.313,0.198 10 false *2 0.365,3.292 4.646,3.49 4.281,0.198 10 false *1: for HV Model 1.594,3.292 5.875,3.49 4.281,0.198 10 false *2: for Gasoline Model

CAUTION / NOTICE / HINT

NOTICE:: ·

When replacing the combination meter assembly, always replace it with a new one. If a combination meter assembly which was installed to another vehicle is used, the information stored in it will not match the information from the vehicle and a DTC may be stored.

·

When replacing the combination meter assembly, update the ECU security key.

Click hereGeneral>SETUP>WHEN REPLACING OR REMOVING/INSTALLING PARTS>UPDATE ECU SECURITY KEY202111,999999,_V1,_111780,_0504977,RM100000001ZKRX,

·

Inspect the fuses of circuits related to this system before performing the following procedure.

PROCEDURE

1.CONFIRM MODEL

Choose the model to be inspected.

Result:

Result	Proceed to
for HV Model	A
for Gasoline Model	B

2.CHECK HARNESS AND CONNECTOR (POWER SOURCE CIRCUIT)

3.CHECK HARNESS AND CONNECTOR (IG POWER SOURCE CIRCUIT)

2.CHECK HARNESS AND CONNECTOR (POWER SOURCE CIRCUIT)

1.5,0.406 1.906,0.656 0.406,0.25 2.698,1.917 2.635,1.51 true 3,1.76 2.781,1.521 true 0.167,0.156 0.479,0.354 0.313,0.198 10 false *a 1.573,0.438 2.031,0.635 0.458,0.198 10 false E17 2.635,1.938 3.094,2.135 0.458,0.198 10 false IG+ 3.031,1.76 3.219,1.979 0.188,0.219 10 false B

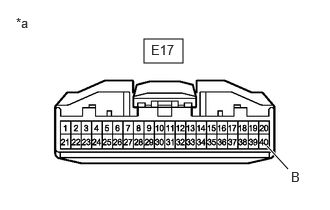

*a	Front view of wire harness connector (to Combination Meter Assembly)

Disconnect the E17 combination meter assembly connector.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection	Condition	Specified Condition
Click Location & Routing(E17)Location & Routingewd_type=routing;type=c;code=E17 Click Connector(E17)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>Combination Meter Assemblyewd_type=component;type=c;code=E17;pinno=39,40
E17-39 (IG+) - Body ground	Ignition switch off	Below 1 V
E17-39 (IG+) - Body ground	Ignition switch ON	11 to 14 V
E17-40 (B) - Body ground	Ignition switch off	11 to 14 V

Result:

Proceed to
OK
NG

5.CHECK HARNESS AND CONNECTOR (COMBINATION METER ASSEMBLY - BODY GROUND)

REPAIR OR REPLACE HARNESS OR CONNECTOR

3.CHECK HARNESS AND CONNECTOR (IG POWER SOURCE CIRCUIT)

1.5,0.406 1.906,0.656 0.406,0.25 2.698,1.917 2.635,1.51 true 0.167,0.156 0.479,0.354 0.313,0.198 10 false *a 1.573,0.438 2.031,0.635 0.458,0.198 10 false E17 2.635,1.938 3.094,2.135 0.458,0.198 10 false IG+

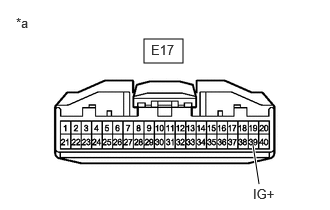

*a	Front view of wire harness connector (to Combination Meter Assembly)

Disconnect the E17 combination meter assembly connector.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection	Condition	Specified Condition
Click Location & Routing(E17)Location & Routingewd_type=routing;type=c;code=E17 Click Connector(E17)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>Combination Meter Assemblyewd_type=component;type=c;code=E17;pinno=39
E17-39 (IG+) - Body ground	Ignition switch off	Below 1 V
Ignition switch ON	10.5 to 16 V

Tester Connection

Condition

Specified Condition

Click Location & Routing(E17)Location & Routingewd_type=routing;type=c;code=E17

Click Connector(E17)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>Combination Meter Assemblyewd_type=component;type=c;code=E17;pinno=39

E17-39 (IG+) - Body ground

Ignition switch off

Below 1 V

Ignition switch ON

10.5 to 16 V

Result:

Proceed to
OK
NG

4.CHECK HARNESS AND CONNECTOR (AUXILIARY BATTERY POWER SOURCE CIRCUIT)

GO TO STOP AND START SYSTEM

Click hereEngine / Hybrid System>STOP AND START>STOP AND START SYSTEM>Backup Boost Converter Circuit202111,202203,_51,_111803,_0509671,RM100000002064W,202203,202303,_51,_111803,_0509671,RM1000000022H01,202303,202406,_51,_111803,_0509671,RM1000000029H6Z,202406,202409,_51,_111803,_0509671,RM100000002KOTS,202409,999999,_51,_111803,_0509671,RM100000002OAHO,

4.CHECK HARNESS AND CONNECTOR (AUXILIARY BATTERY POWER SOURCE CIRCUIT)

1.5,0.406 1.906,0.656 0.406,0.25 3,1.76 2.781,1.521 true 0.167,0.156 0.479,0.354 0.313,0.198 10 false *a 1.573,0.438 2.031,0.635 0.458,0.198 10 false E17 3.031,1.76 3.219,1.979 0.188,0.219 10 false B

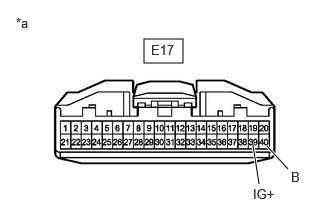

*a	Front view of wire harness connector (to Combination Meter Assembly)

Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection	Condition	Specified Condition
Click Location & Routing(E17)Location & Routingewd_type=routing;type=c;code=E17 Click Connector(E17)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>Combination Meter Assemblyewd_type=component;type=c;code=E17;pinno=40
E17-40 (B) - Body ground	Always	11 to 14 V

Tester Connection

Condition

Specified Condition

Click Location & Routing(E17)Location & Routingewd_type=routing;type=c;code=E17

Click Connector(E17)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>Combination Meter Assemblyewd_type=component;type=c;code=E17;pinno=40

E17-40 (B) - Body ground

Always

11 to 14 V

Result:

Proceed to
OK
NG

5.CHECK HARNESS AND CONNECTOR (COMBINATION METER ASSEMBLY - BODY GROUND)

REPAIR OR REPLACE HARNESS OR CONNECTOR

5.CHECK HARNESS AND CONNECTOR (COMBINATION METER ASSEMBLY - BODY GROUND)

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
Click Location & Routing(E17)Location & Routingewd_type=routing;type=c;code=E17 Click Connector(E17)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>Combination Meter Assemblyewd_type=component;type=c;code=E17;pinno=2,21
E17-2 (EP) - Body ground	Always	Below 1 Ω
E17-21 (ES) - Body ground	Always	Below 1 Ω

Tester Connection

Condition

Specified Condition

Click Location & Routing(E17)Location & Routingewd_type=routing;type=c;code=E17

Click Connector(E17)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>Combination Meter Assemblyewd_type=component;type=c;code=E17;pinno=2,21

E17-2 (EP) - Body ground

Always

Below 1 Ω

E17-21 (ES) - Body ground

Always

Below 1 Ω

Result:

Proceed to
OK
NG

REPLACE COMBINATION METER ASSEMBLY

Click hereVehicle Interior>METER / GAUGE / DISPLAY>COMBINATION METER>REMOVAL202111,202203,_58,_111835,_0501288,RM100000001Z5FJ,202203,202303,_58,_111835,_0501288,RM1000000022EX1,202303,202406,_58,_111835,_0501288,RM100000002AL91,202406,999999,_58,_111835,_0501288,RM100000002MQF3,

REPAIR OR REPLACE HARNESS OR CONNECTOR
