RM38N0EC _51 Engine / Hybrid System _111791 M20C-FKS, M20D-FKS COOLING _0503629 FLOW SHUTTING VALVE(for Heater) A

M20C-FKS, M20D-FKS COOLING  FLOW SHUTTING VALVE(for Heater)  INSTALLATION


PROCEDURE

Hide 16260 1.INSTALL FLOW SHUTTING VALVE (WATER BY-PASS HOSE ASSEMBLY)

a.

Install the flow shutting valve (water by-pass hose assembly) to the No. 1 water by-pass pipe and slide the clip to secure it.

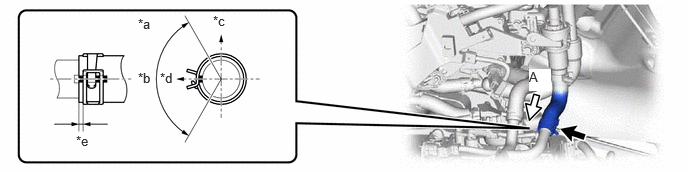

A478256C01
1.438,0.167 1.75,0.323 0.313,0.156 10 false *a 1.438,0.729 1.75,0.885 0.313,0.156 10 false *b 2.219,0.135 2.531,0.292 0.313,0.156 10 false *c 1.667,0.729 1.979,0.885 0.313,0.156 10 false *d 0.792,1.385 1.104,1.542 0.313,0.156 10 false *e 5.51,0.719 5.74,0.948 0.229,0.229 10 true A
*a View A *b 120° (Tabs of Clip Installation Area)
*c Upper Side of Vehicle *d Rear Side of Vehicle
*e 2 to 7 mm (0.0787 to 0.276 in.) - -


NOTICE:
·

Make sure to slide the flow shutting valve (water by-pass hose assembly) until it contacts the hose stopper of the No. 1 water by-pass pipe.

·

Make sure that the tabs of the clip are within the area shown in the illustration.




b.

Connect the flow shutting valve (water by-pass hose assembly) with the bolt.

Torque:
19 N*m (194 kgf*cm, 14 ft.*lbf)


c.

Connect the No. 2 water by-pass pipe sub-assembly with the bolt.

Torque:
19 N*m (194 kgf*cm, 14 ft.*lbf)


d.

Connect the outlet heater water hose connector to the No. 2 water by-pass pipe sub-assembly.

NOTICE:

Check that there is no damage or foreign matter on the connecting parts of the water lines.


i.

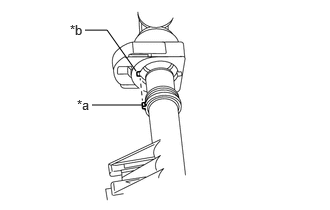

A478259C01
0.958,1.094 1.479,1.094 false 0.885,0.313 1.115,0.313 1.115,0.313 1.417,0.74 false 0.802,1.01 1.115,1.167 0.313,0.156 10 false *a 0.729,0.229 1.042,0.385 0.313,0.156 10 false *b
*a Protrusion
*b Cutout


Align the protrusion of the No. 2 water by-pass pipe sub-assembly with the cutout in the outlet heater water hose connector and securely connect the outlet heater water hose connector.


ii.

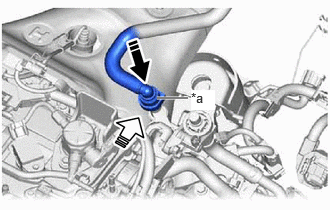

A478260C01
1.635,1.021 1.958,1.021 true 1.99,0.938 2.24,1.146 0.25,0.208 10 true *a
*a Retainer
V113147

Push
V113148

Push in


Push in the retainer.


iii.

Check that the No. 2 water by-pass pipe sub-assembly and outlet heater water hose connector are securely connected by pulling on them.



e.

Connect the inlet heater water hose connector to the flow shutting valve (water by-pass hose assembly).

NOTICE:

Check that there is no damage or foreign matter on the connecting parts of the water lines.


i.

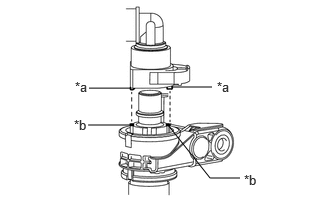

A478261C01
0.927,0.917 1.354,0.917 false 1.781,0.906 2.208,0.906 false 0.917,1.302 1.344,1.302 false 1.75,1.302 2.188,1.854 2.188,1.854 2.5,1.854 false 0.781,0.823 1.094,0.979 0.313,0.156 10 false *a 0.771,1.219 1.083,1.375 0.313,0.156 10 false *b 2.26,0.823 2.573,0.979 0.313,0.156 10 false *a 2.542,1.792 2.854,1.948 0.313,0.156 10 false *b
*a Protrusion
*b Cutout


Align the protrusions of the inlet heater water hose connector with the cutouts in the flow shutting valve (water by-pass hose assembly) and securely connect the inlet heater water hose connector.


ii.

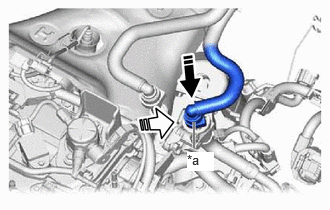

A478262C01
2.021,1.271 2.021,1.542 true 1.948,1.583 2.229,1.781 0.281,0.198 10 true *a
*a Retainer
V113147

Push
V113148

Push in


Push in the retainer.


iii.

Check that the flow shutting valve (water by-pass hose assembly) and inlet heater water hose connector are securely connected by pulling on them.



f.

Connect the flow shutting valve (water by-pass hose assembly) connector.
