RM38N0EC _51 Engine / Hybrid System _111785 M20C-FKS, M20D-FKS ENGINE CONTROL _0503270 ACTIVE CONTROL ENGINE MOUNT(for Rear Side) A

M20C-FKS, M20D-FKS ENGINE CONTROL  ACTIVE CONTROL ENGINE MOUNT(for Rear Side)  INSTALLATION


PROCEDURE

Hide 12371A 1.INSTALL REAR ENGINE MOUNTING INSULATOR

a.

Engage the clamp and install the vacuum hose to the rear engine mounting insulator.


b.

Install the No. 3 wiring harness clamp bracket to the rear engine mounting insulator with the bolt.

Torque:
13 N*m (133 kgf*cm, 10 ft.*lbf)


c.

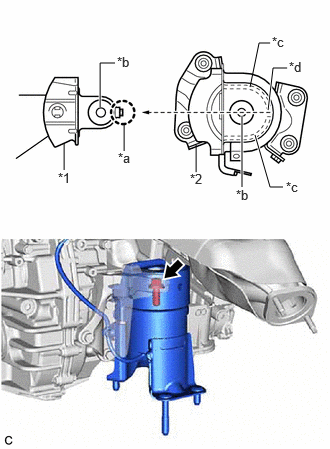

A475941C01
0.667,1.771 0.667,1.49 false 2.042,1.792 2.042,1.51 false 1.042,1.115 1.042,0.656 1.042,0.656 1.198,0.656 true 1.292,1.573 1.292,1.292 false 2.521,1.948 2.521,1.208 true 2.604,0.906 2.698,0.448 2.698,0.448 2.813,0.448 false 2.948,1.948 2.813,1.948 2.813,1.948 2.656,1.406 true 2.99,0.708 2.844,0.708 2.844,0.708 2.792,1.146 true 0.604,1.771 0.917,1.969 0.313,0.198 10 false *1 1.979,1.781 2.292,1.979 0.313,0.198 10 false *2 1.229,1.563 1.542,1.76 0.313,0.198 10 false *a 1.219,0.563 1.531,0.76 0.313,0.198 10 false *b 2.458,1.948 2.771,2.146 0.313,0.198 10 false *b 2.833,0.354 3.146,0.552 0.313,0.198 10 false *c 2.979,1.865 3.292,2.063 0.313,0.198 10 false *c 3.01,0.615 3.323,0.813 0.313,0.198 10 false *d
*1 Rear Engine Mounting Bracket
*2 Rear Engine Mounting Insulator
*a Protrusion
*b Hole
*c Wall
*d Gap


Align and insert the protrusion of the rear engine mounting bracket into the gap between the 2 inner walls of the rear engine mounting insulator to align the hole of the rear engine mounting bracket with the hole of the rear engine mounting insulator, and install the rear engine mounting insulator with the bolt.

Torque:
72 N*m (734 kgf*cm, 53 ft.*lbf)
