CAMSHAFT OIL CONTROL VALVE
G
M20C-FKS, M20D-FKS ENGINE CONTROL CAMSHAFT OIL CONTROL VALVE ON-VEHICLE INSPECTION
PROCEDURE
15370
1.REMOVE CAM TIMING OIL CONTROL SOLENOID ASSEMBLY
135A0B
2.INSPECT CAMSHAFT TIMING VALVE ASSEMBLY
a.
1.646,1.802 1.646,1.26
true
1.698,4.125 1.698,3.583
true
0.052,0.042 0.51,0.396
0.458,0.354
12
false
*A
0.042,2.396 0.396,2.688
0.354,0.292
12
false
*B
1.594,1.813 1.802,2.01
0.208,0.198
10
true
*a
1.646,4.125 1.854,4.323
0.208,0.198
10
true
*a
| *A | Type A |
| *B | Type B |
| *a | Plunger |

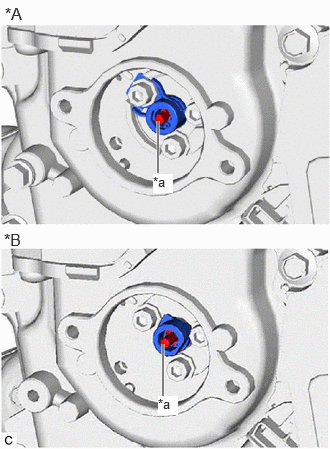

Check the stroke of the plunger in the center of the camshaft timing valve assembly.
- Standard Stroke:
2.2 mm (0.0866 in.) or more
If the result is not as specified, replace the camshaft timing valve assembly.
15370
3.INSTALL CAM TIMING OIL CONTROL SOLENOID ASSEMBLY
