M20C-FKS, M20D-FKS ENGINE CONTROL CAMSHAFT OIL CONTROL SOLENOID REMOVAL

CAUTION / NOTICE / HINT

NOTICE:: This procedure includes the removal of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.; Click hereGeneral>INTRODUCTION>REPAIR INSTRUCTION>PRECAUTION202111,999999,_V1,_111779,_0504973,RM100000001ZKRM,

Hide Display 12601B 1.REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY

Hide Display 15370 2.REMOVE CAM TIMING OIL CONTROL SOLENOID ASSEMBLY

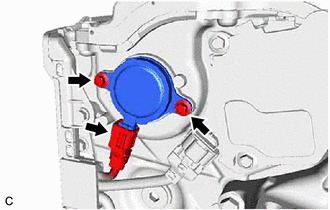

Disconnect the cam timing oil control solenoid assembly connector.

Using an 8 mm socket wrench, remove the 2 bolts and cam timing oil control solenoid assembly from the No. 2 timing chain cover assembly.

NOTICE:: If the cam timing oil control solenoid assembly has been struck or dropped, replace it.

Hide Display 3.REMOVE O-RING

HINT:: Perform this procedure only when replacement of the O-ring is necessary.

Remove the O-ring from the cam timing oil control solenoid assembly.

NOTICE:: ·

When removing the O-ring, be careful not to damage the O-ring groove of the cam timing oil control solenoid assembly.

·

If the O-ring groove of the cam timing oil control solenoid assembly is damaged, replace the cam timing oil control solenoid assembly with a new one.
