MAINTENANCE  FRONT BRAKE FLEXIBLE HOSE  INSTALLATION


CAUTION / NOTICE / HINT

NOTICE:
·

Because the left and right front flexible hoses are not interchangeable, verify the part number when installing the front flexible hoses.

·

When reusing the front flexible hoses, use the identification marks created during removal to install each front flexible hose to its original position.



HINT:
·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.



PROCEDURE

Hide 47313J 1.INSTALL FRONT FLEXIBLE HOSE

NOTICE:

When installing the front flexible hose, minimize twisting of the hose.

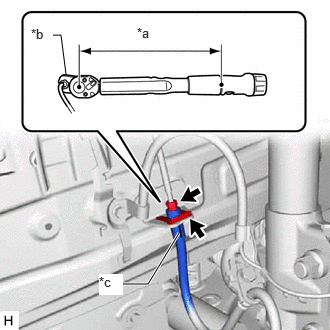

a.
C442192C01
0.552,0.365 0.635,0.365 0.635,0.365 0.688,0.781 false 1.865,2.427 1.542,2.958 1.542,2.958 1.271,2.958 true 1.427,0.26 1.74,0.417 0.313,0.156 10 false *a 0.323,0.271 0.635,0.427 0.313,0.156 10 false *b 1.031,2.854 1.281,3.073 0.25,0.219 10 true *c
*a Torque Wrench Fulcrum Length
*b Union Nut Wrench
*c Identification Mark


Install the front flexible hose with a new clip.

NOTICE:
·

Install the clip as far as it will go.

·

When installing the front flexible hose, face the identification mark to the outside of the vehicle.




b.

Using a union nut wrench, connect the brake line to the front flexible hose while holding the front flexible hose with a wrench.

Torque:
Specified tightening torque : 15.2 N*m (155 kgf*cm, 11 ft.*lbf)

NOTICE:
·

Do not kink or damage the brake line.

·

Do not allow any foreign matter such as dirt or dust to enter the brake line from the connecting parts.



HINT:
·

Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.

Click hereGeneral>INTRODUCTION>REPAIR INSTRUCTION>PRECAUTION

·

When using a union nut wrench (fulcrum length of 22 mm (0.866 in.)) + torque wrench (fulcrum length of 162 mm (6.38 in.)):

13.4 N*m (137 kgf*cm, 10 ft.*lbf)

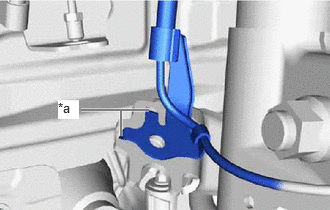

c.
C433921C05
0.844,1.146 1.552,1.146 true 1.26,1.417 1.26,1.156 true 0.604,1.042 0.823,1.24 0.219,0.198 10 true *a
*a Hook


Engage the 2 hooks to install the front speed sensor clamp bracket.

NOTICE:

Do not twist the front speed sensor wire harness when installing it.



d.
C407441

Install the front flexible hose and front speed sensor to the front shock absorber assembly with the bolt.

Torque:
29 N*m (296 kgf*cm, 21 ft.*lbf)

NOTICE:

Do not twist the front flexible hose when installing it.



e.

Connect the front flexible hose to the front disc brake cylinder assembly with a new union bolt and a new gasket.

Torque:
29.4 N*m (300 kgf*cm, 22 ft.*lbf)

NOTICE:
·

Install the front flexible hose lock securely into the lock hole in the front disc brake cylinder assembly.

·

Do not twist the front flexible hose when installing it.




Hide 2.CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL (for HV Model)

a.

Connect the reservoir level switch connector.


b.

Connect the cable to the negative (-) auxiliary battery terminal.

Click hereGeneral>MAINTENANCE>A25D-FXS, A25F-FXS AUXILIARY BATTERY>INSTALLATION


Hide 5. INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>WORK PROCEDURE

HINT:

When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART
