BRAKE (FRONT)  FRONT BRAKE  INSTALLATION


CAUTION / NOTICE / HINT

NOTICE:
·

Immediately after installing the brake pads, the braking performance may be reduced. Always perform a road test in a safe place while paying attention to the surroundings.

·

After replacing the front disc brake pads, the brake pedal may feel soft due to clearance between the front disc brake pads and front disc. Depress the brake pedal several times until the brake pedal feels firm.

·

After replacing the front disc brake pads, always perform a road test to check the braking performance and check for vibrations.

·

When removing or installing the front disc brake cylinder assembly, pushing back the disc brake piston may cause a large clearance between the brake pads and brake disc. When the brake pedal is depressed with a large clearance between the brake pads and the brake disc, DTC C140000 and/or C140A00 related to abnormal brake fluid pressure may be stored. Make sure to clear any DTCs after performing this procedure.

·

While the auxiliary battery is connected, even if the ignition switch is off, the brake control system activates when the brake pedal is depressed or any door courtesy switch turns on. Therefore, when servicing the brake system components, do not operate the brake pedal or open/close the doors while the auxiliary battery is connected.



HINT:
·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.



PROCEDURE

Hide 43512 1.INSTALL FRONT DISC

a.
C397688C04
2.073,1.073 3,1.031 3,1.031 2.01,0.99 true 3.031,0.917 3.344,1.115 0.313,0.198 10 false *a
*a Matchmark

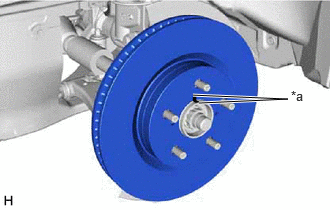

Align the matchmarks of the front disc and front axle hub sub-assembly, and install the front disc.

NOTICE:

When replacing the front disc with a new one, select the installation position where the front disc has minimal runout.



Hide 47722 2.INSTALL FRONT DISC BRAKE CYLINDER MOUNTING

a.

Install the front disc brake cylinder mounting to the steering knuckle with the 2 bolts.

Torque:
150 N*m (1530 kgf*cm, 111 ft.*lbf)


Hide 3.INSTALL FRONT DISC BRAKE BUSHING DUST BOOT

a.
C369848C01
0,0 0,0 false
V100155

Lithium Soap Base Glycol Grease


Apply a light layer of lithium soap base glycol grease to the entire circumference of 2 new front disc brake bushing dust boots.

HINT:

Apply more than 0.3 g (0.01 oz) of lithium soap base glycol grease to each front disc brake bushing dust boot.



b.

Install the 2 front disc brake bushing dust boots to the front disc brake cylinder mounting.


Hide 47715A 4.INSTALL FRONT DISC BRAKE CYLINDER SLIDE PIN

a.
C443730C01
0,0 0,0 false
V100155

Lithium Soap Base Glycol Grease

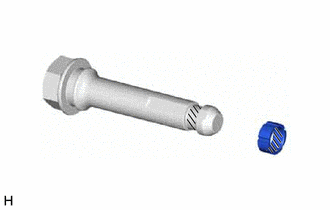

Apply a light layer of lithium soap base glycol grease to the contact surface of the front disc brake cylinder slide pin (lower side) and a new front disc brake cylinder slide bushing.


b.

Install the front disc brake cylinder slide bushing to the front disc brake cylinder slide pin (lower side).


c.
C405077C03
0,0 0,0 false
V100155

Lithium Soap Base Glycol Grease

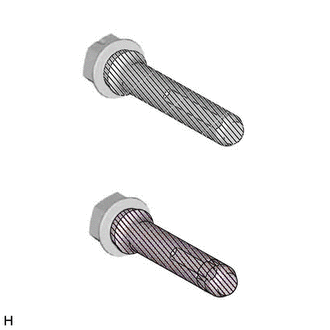

Apply a light layer of lithium soap base glycol grease to the sliding part and the sealing surfaces of the 2 front disc brake cylinder slide pins.


d.

Install the 2 front disc brake cylinder slide pins to the front disc brake cylinder mounting.


e.

Push each front disc brake cylinder slide pin into the front disc brake bushing dust boot to engage the pin to the boot.


Hide 5.INSTALL FRONT DISC BRAKE PAD SUPPORT PLATE

a.
C433499

Install the 4 front disc brake pad support plates to the front disc brake cylinder mounting.

NOTICE:

Be sure to install each front disc brake pad support plate in the correct position and direction.



Hide 7.INSTALL FRONT DISC BRAKE PAD

a.

Install the 2 front disc brake pads to the front disc brake cylinder mounting.

NOTICE:
·

Keep the friction surfaces of the front disc brake pads and front disc free from oil and grease.

·

Install the front disc brake pad so that the front disc brake pad wear indicator plate is mounted on the upper side of the vehicle.




Hide 47750 8.INSTALL FRONT DISC BRAKE CYLINDER ASSEMBLY

a.

Hold each front disc brake cylinder slide pin and install the front disc brake cylinder assembly to the front disc brake cylinder mounting with the 2 bolts.

Torque:
34.3 N*m (350 kgf*cm, 25 ft.*lbf)


Hide 47313J 9.CONNECT FRONT FLEXIBLE HOSE

a.

Connect the front flexible hose to the front disc brake cylinder assembly with a new union bolt and a new gasket.

Torque:
29.4 N*m (300 kgf*cm, 22 ft.*lbf)

NOTICE:

Install the front flexible hose lock securely into the lock hole in the front disc brake cylinder assembly.



Hide 10.CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL (for HV Model)

a.

Connect the reservoir level switch connector.



c.

Perform the following procedure if air bleeding is not necessary:

i.

Turn the ignition switch to ON (READY).


ii.

Depress the brake pedal and release it.




Hide 13. INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL (for HV Model)
