TIRE PRESSURE MONITORING TIRE PRESSURE WARNING VALVE REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during tire pressure warning valve and transmitter removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
1: Also necessary after performing a tire rotation. 2: It is not necessary to perform this procedure if the tire pressure warning valve and transmitters are installed to the same location.
Tires	· Initialization12 · Tire Position Identification12	Tire Pressure Warning System	Refer to Procedures Necessary When Replacing Parts (for Tire Pressure Warning System) (202111,202203,_V1,_111780,_0504977,RM100000001ZKRV,202203,202303,_V1,_111780,_0504977,RM1000000022CKZ,202303,202406,_V1,_111780,_0504977,RM100000002AA1Y,202406,202409,_V1,_111780,_0504977,RM100000002MO96,202409,999999,_V1,_111780,_0504977,RM100000002OMBP,)
Tire pressure warning valve and transmitter	· ID Registration · Initialization · Tire Position Identification	Tire Pressure Warning System	Refer to Procedures Necessary When Replacing Parts (for Tire Pressure Warning System) (202111,202203,_V1,_111780,_0504977,RM100000001ZKRV,202203,202303,_V1,_111780,_0504977,RM1000000022CKZ,202303,202406,_V1,_111780,_0504977,RM100000002AA1Y,202406,202409,_V1,_111780,_0504977,RM100000002MO96,202409,999999,_V1,_111780,_0504977,RM100000002OMBP,)

PROCEDURE

Hide Display 1.REMOVE WHEEL ASSEMBLY

Click hereGeneral>MAINTENANCE>TIRE AND WHEEL>REMOVAL202111,999999,_V1,_112220,_0502516,RM100000001ZAD2,

Hide Display 42607 2.REMOVE TIRE PRESSURE WARNING VALVE AND TRANSMITTER

Remove the tire valve cap.

NOTICE:: Keep the removed tire valve cap.

Remove the valve core to release the air from the tire.

NOTICE:: Make sure that a sufficient amount of air has been released.

Using an 11 mm deep socket wrench, remove the nut and washer.

Drop the tire pressure warning valve and transmitter with grommet into the tire.

HINT:: The grommet may remain attached to the rim.

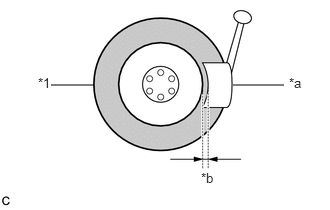

0.531,0.885 0.979,0.885 false 2.427,0.885 2.958,0.885 false 0.396,0.781 0.698,0.969 0.302,0.188 10 false *1 3.01,0.781 3.323,0.938 0.313,0.156 10 false *a 2.094,1.771 2.406,1.927 0.313,0.156 10 false *b

*1	Tire
*a	Shoe
*b	10 to 20 mm (0.394 to 0.787 in.)

Using a tire remover, remove the tire from the disc wheel.

NOTICE:: ·

Be careful not to damage the tire pressure warning valve and transmitter due to interference between the valve and the tire bead.

·

Set the tire remover shoe as shown in the illustration.

Take out the tire pressure warning valve and transmitter with grommet from the tire.

Remove the grommet from the tire pressure warning valve and transmitter.

Using a T10 "TORX" socket wrench, remove the bolt and tire pressure monitor sensor from the tubeless tire valve.
