ADVANCED DRIVER ASSISTANCE SYSTEM CAMERA HEATER REMOVAL

PROCEDURE

Hide Display 8646C 1.REMOVE FORWARD RECOGNITION CAMERA

Click hereADAS / AD>ADVANCED DRIVER ASSISTANCE SYSTEM>FRONT CAMERA>REMOVAL202111,202303,_95,_111850,_0502177,RM100000001Z959,202303,999999,_95,_111850,_0502177,RM10000000292O2,

Hide Display 86401 2.REMOVE FORWARD RECOGNITION WITH HEATER HOOD SUB-ASSEMBLY

NOTICE:

0,0 0,0 false

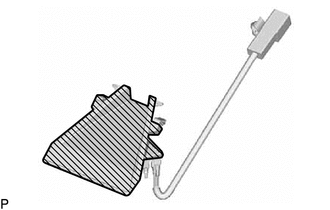

Inner Surface of Forward Recognition with Heater Hood Sub-assembly

Do not touch the inner surface of the forward recognition with heater hood sub-assembly.

Do not apply force to the heating element of the forward recognition with heater hood sub-assembly or an open circuit may result.

0.646,1.052 0.229,0.979 0.229,0.979 1.094,0.75 true 0.24,1.49 0.24,0.969 0.24,0.969 0.448,1.24 true 1.896,0.865 1.896,0.625 true 1.813,0.854 2.042,1.063 0.229,0.208 10 true *a 1.406,0.667 1.563,0.854 0.156,0.188 10 true 1 0.948,1.01 1.104,1.198 0.156,0.188 10 true 2 0.708,1.26 0.865,1.448 0.156,0.188 10 true 3 0.458,1.479 0.615,1.667 0.156,0.188 10 true 4 0.031,0.875 0.219,1.073 0.188,0.198 10 true *b

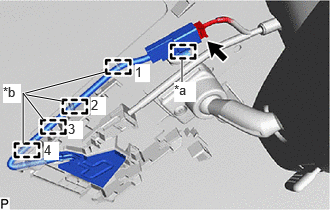

*a	Connector Clamp
*b	Guide

Disconnect the connector.

NOTICE:: Do not pull the harness forcibly when disconnecting the connector.

Disengage the connector clamp.

Disengage the 4 guides in the order shown in the illustration.

0,0 0,0 false

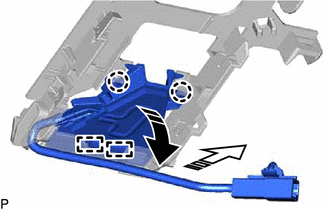

	Remove in this Direction (1)
	Remove in this Direction (2)

Pull the forward recognition with heater hood sub-assembly in the direction indicated by the arrow (1) shown in the illustration to disengage the 2 claws.

Pull the forward recognition with heater hood sub-assembly in the direction indicated by the arrow (2) shown in the illustration to disengage the 2 guides and remove the forward recognition with heater hood sub-assembly.
