RM38N0EC _59 Vehicle Exterior _111831 DOOR / HATCH _0501467 POWER BACK DOOR TOUCH SENSOR A

DOOR / HATCH POWER BACK DOOR TOUCH SENSOR INSTALLATION

CAUTION / NOTICE / HINT

HINT:: ·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.

PROCEDURE

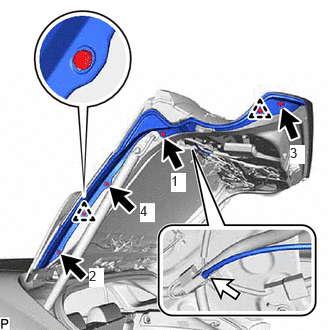

Hide Display 84280D 1.INSTALL POWER BACK DOOR SENSOR ASSEMBLY

1.781,1.802 1.938,2 0.156,0.198 10 true 1 0.927,2.792 1.083,2.99 0.156,0.198 10 true 2 3.021,1.51 3.177,1.708 0.156,0.198 10 true 3 1.458,2.115 1.615,2.313 0.156,0.198 10 true 4

Engage the 2 clips.

Install the power back door sensor assembly with the 4 screws.

HINT:: Install the screws in the order shown in the illustration.

Connect the connector.

Hide Display 67750 2.INSTALL BACK DOOR TRIM BOARD ASSEMBLY

Click hereVehicle Exterior>DOOR / HATCH>BACK DOOR>REASSEMBLY202111,202203,_59,_111831,_0501461,RM100000001Z665_01_0301,202203,202406,_59,_111831,_0501461,RM1000000022E7E_01_0301,202406,202409,_59,_111831,_0501461,RM100000002N2PF_01_0301,202409,999999,_59,_111831,_0501461,RM100000002OUE9_01_0301,

Hide Display 74811D 3.INSTALL DOOR PULL HANDLE

Click hereVehicle Exterior>DOOR / HATCH>BACK DOOR>REASSEMBLY202111,202203,_59,_111831,_0501461,RM100000001Z665_01_0302,202203,202406,_59,_111831,_0501461,RM1000000022E7E_01_0302,202406,202409,_59,_111831,_0501461,RM100000002N2PF_01_0302,202409,999999,_59,_111831,_0501461,RM100000002OUE9_01_0302,

Hide Display 64785A 4.INSTALL BACK DOOR TRIM BASE

Click hereVehicle Exterior>DOOR / HATCH>BACK DOOR>REASSEMBLY202111,202203,_59,_111831,_0501461,RM100000001Z665_01_0289,202203,202406,_59,_111831,_0501461,RM1000000022E7E_01_0289,202406,202409,_59,_111831,_0501461,RM100000002N2PF_01_0289,202409,999999,_59,_111831,_0501461,RM100000002OUE9_01_0289,

Hide Display 67938A 5.INSTALL BACK DOOR SIDE GARNISH LH

Click hereVehicle Exterior>DOOR / HATCH>BACK DOOR>REASSEMBLY202111,202203,_59,_111831,_0501461,RM100000001Z665_01_0286,202203,202406,_59,_111831,_0501461,RM1000000022E7E_01_0286,202406,202409,_59,_111831,_0501461,RM100000002N2PF_01_0286,202409,999999,_59,_111831,_0501461,RM100000002OUE9_01_0286,

Hide Display 67937B 6.INSTALL BACK DOOR SIDE GARNISH RH

HINT:: Use the same procedure as for the LH side.

Hide Display 67939B 7.INSTALL BACK DOOR CENTER GARNISH

Click hereVehicle Exterior>DOOR / HATCH>BACK DOOR>REASSEMBLY202111,202203,_59,_111831,_0501461,RM100000001Z665_01_0287,202203,202406,_59,_111831,_0501461,RM1000000022E7E_01_0287,202406,202409,_59,_111831,_0501461,RM100000002N2PF_01_0287,202409,999999,_59,_111831,_0501461,RM100000002OUE9_01_0287,

Hide Display 8.INITIALIZE POWER BACK DOOR SYSTEM

Click hereVehicle Exterior>DOOR / HATCH>POWER BACK DOOR SYSTEM>INITIALIZATION202111,999999,_59,_111831,_0505274,RM100000001ZMEG,

Hide Display 9.INSPECT POWER BACK DOOR SYSTEM

Click hereVehicle Exterior>DOOR / HATCH>POWER BACK DOOR SYSTEM>OPERATION CHECK202111,202203,_59,_111831,_0505274,RM100000001ZMF0,202203,999999,_59,_111831,_0505274,RM10000000225DM,
