INTERIOR PANELS / TRIM  ROOF SUNSHADE(for Short Type Panoramic Fixed Moon Roof)  INSTALLATION

1.INSTALL REAR SLIDING ROOF HOUSING MOUNTING BRACKET LH

a.

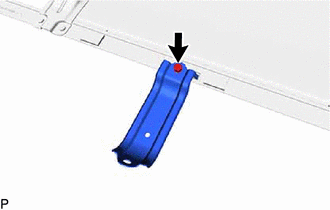

Temporarily install the rear sliding roof housing mounting bracket LH for the sunshade housing assembly with the bolt.

2.INSTALL REAR SLIDING ROOF HOUSING MOUNTING BRACKET RH

3.INSTALL FRONT SLIDING ROOF HOUSING MOUNTING BRACKET LH

a.

Temporarily install the front sliding roof housing mounting bracket LH for the sunshade housing assembly with the bolt.

4.INSTALL FRONT SLIDING ROOF HOUSING MOUNTING BRACKET RH

63250H 5.INSTALL SUNSHADE HOUSING ASSEMBLY

a.

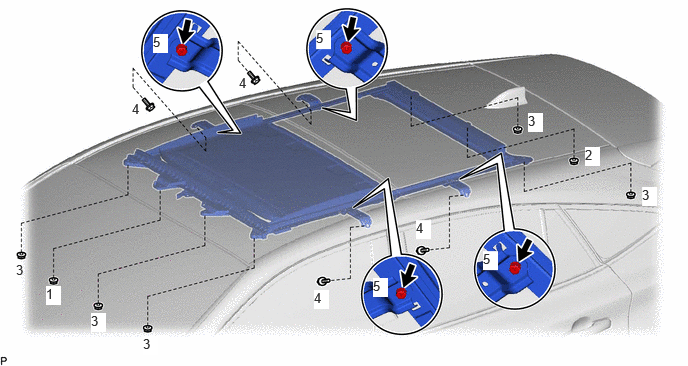

Temporarily install the sunshade housing assembly with the 7 nuts and 4 bolts.

0.479,2.979 0.635,3.177 0.156,0.198 10 true 1 6.094,1.531 6.25,1.729 0.156,0.198 10 true 2 5.5,1.177 5.656,1.375 0.156,0.198 10 true 3 6.688,1.948 6.844,2.146 0.156,0.198 10 true 3 1.49,3.5 1.646,3.698 0.156,0.198 10 true 3 0.948,3.26 1.104,3.458 0.156,0.198 10 true 3 0.167,2.729 0.323,2.927 0.156,0.198 10 false 3 4.333,2.292 4.49,2.49 0.156,0.198 10 true 4 3.271,3.021 3.427,3.219 0.156,0.198 10 true 4 1.375,1.052 1.531,1.25 0.156,0.198 10 false 4 2.49,0.781 2.646,0.979 0.156,0.198 10 false 4 3.292,0.313 3.448,0.51 0.156,0.198 10 true 5 1.594,0.354 1.75,0.552 0.156,0.198 10 true 5 3.885,2.896 4.042,3.094 0.156,0.198 10 true 5 5.031,2.615 5.188,2.813 0.156,0.198 10 true 5

b.

Tighten the 7 nuts and 8 bolts to install the sunshade housing assembly.

HINT:

Tighten the nuts and bolts in the order shown in the illustration.

Torque:

8.0 N*m (82 kgf*cm, 71 in.*lbf)

63231C 6.INSTALL ROOM LIGHT BRACKET

a.

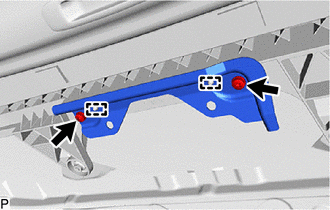

Engage the 2 guides.

b.

Install the room light bracket with the 2 bolts.

Torque:

5.4 N*m (55 kgf*cm, 48 in.*lbf)

62180A 7.INSTALL CURTAIN SHIELD AIRBAG ASSEMBLY LH

62170A 8.INSTALL CURTAIN SHIELD AIRBAG ASSEMBLY RH
