RM38N0EC _58 Vehicle Interior _111835 METER / GAUGE / DISPLAY _0501288 COMBINATION METER A

METER / GAUGE / DISPLAY  COMBINATION METER  INSTALLATION


CAUTION / NOTICE / HINT

NOTICE:
·

After replacing the combination meter assembly, make sure to perform update ECU security key.

·

After performing the update ECU security key procedure, make sure to perform the initialization procedure for when the cable has been disconnected and reconnected to the negative (-) auxiliary battery terminal.



PROCEDURE

Hide 83100 1.INSTALL COMBINATION METER ASSEMBLY

a.

for Optitron Meter Type:

i.

Connect the 2 connectors.



b.

for TFT Meter Type:

i.

Connect the 5 connectors.



c.

Engage the clamp.


d.

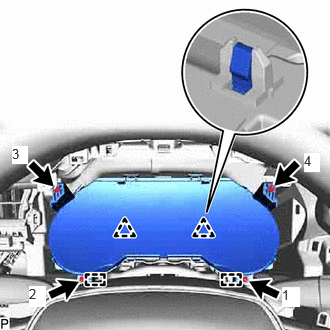

E447038N01
2.938,2.99 3.125,3.198 0.188,0.208 10 true 1 0.302,2.979 0.479,3.198 0.177,0.219 10 true 2 0.125,1.521 0.292,1.708 0.167,0.188 10 true 3 3.167,1.594 3.333,1.792 0.167,0.198 10 true 4

Engage the 2 pins and 2 clips.


e.

Install the combination meter assembly with the 4 screws.

Torque:
7.0 N*m (71 kgf*cm, 62 in.*lbf)

HINT:

Tighten the screws in the order shown in the illustration.



Hide 55410C 2.INSTALL INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY

a.

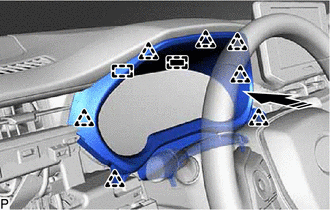

E477443C01
0,0 0,0 false
V113147

Install in this Direction


Engage the 2 guides and 7 clips as shown in the illustration.


b.

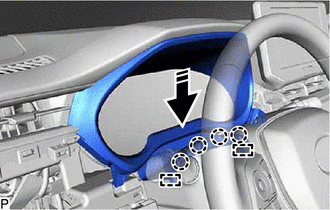

E477441C01
0,0 0,0 false
V113147

Install in this Direction


Engage the 2 guides and 4 claws as shown in the illustration to install the instrument cluster finish panel assembly.
