RM38N0EC _55 Steering _111819 POWER ASSIST SYSTEMS _0501137 POWER STEERING SYSTEM C

POWER ASSIST SYSTEMS  POWER STEERING SYSTEM  C155A16  Power Steering Motor "A" Supply Voltage Circuit Voltage Below Threshold  C155A17  Power Steering Motor "A" Supply Voltage Circuit Voltage Above Threshold  C155B16  Power Steering Motor "B" Supply Voltage Circuit Voltage Below Threshold  C155B17  Power Steering Motor "B" Supply Voltage Circuit Voltage Above Threshold


DESCRIPTION

DTC No. Detection Item DTC Detection Condition Trouble Area Warning Indicate DTC Output from Priority
C155A16 Power Steering Motor "A" Supply Voltage Circuit Voltage Below Threshold PIG voltage of system 1 is lower than the standard value
·

Harness or connector

·

Rack and pinion power steering gear assembly


EPS warning light: Comes on EMPS A
C155A17 Power Steering Motor "A" Supply Voltage Circuit Voltage Above Threshold PIG voltage of system 1 is higher than the standard value
·

Harness or connector

·

Rack and pinion power steering gear assembly


EPS warning light: Comes on EMPS A
C155B16 Power Steering Motor "B" Supply Voltage Circuit Voltage Below Threshold PIG voltage of system 2 is lower than the standard value
·

Harness or connector

·

Rack and pinion power steering gear assembly


EPS warning light: Comes on EMPS A
C155B17 Power Steering Motor "B" Supply Voltage Circuit Voltage Above Threshold PIG voltage of system 2 is higher than the standard value
·

Harness or connector

·

Rack and pinion power steering gear assembly


EPS warning light: Comes on EMPS A

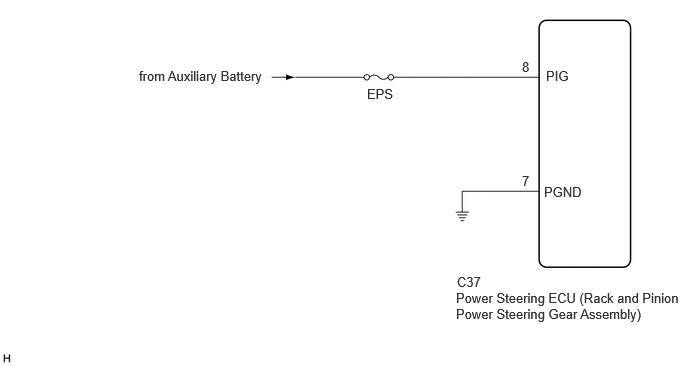

WIRING DIAGRAM

C322363E80
1.448,0.708 2.813,1.021 1.365,0.313 10 false from Auxiliary Battery 3.823,0.896 4.479,1.115 0.656,0.219 10 false EPS 5.438,0.615 6.052,0.833 0.615,0.219 10 false 8 5.688,0.708 6.302,0.927 0.615,0.219 10 false PIG 5.667,1.917 6.281,2.135 0.615,0.219 10 false PGND 5.438,1.802 6.052,2.021 0.615,0.219 10 false 7 4.76,2.854 5.458,3.073 0.698,0.219 10 false C37 4.75,3.021 7.156,3.542 2.406,0.521 10 false Power Steering ECU (Rack and Pinion Power Steering Gear Assembly)

CAUTION / NOTICE / HINT

NOTICE:
·

Inspect the fuses for circuits related to this system before performing the following procedure.



PROCEDURE

1.CHECK HARNESS AND CONNECTOR (PIG POWER SOURCE)

Pre-procedure1

a.

Disconnect the C37 rack and pinion power steering gear assembly connector.


Procedure1

b.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Condition Specified Condition

Click Location & Routing(C37)Location & Routing

Click Connector(C37)Engine Compartment>Engine Wire>Power Steering ECU with Motor Assembly (Rack and Pinion Power Steering Gear Assembly)

C37-8 (PIG) - Body ground Ignition switch off 11 to 14 V



Procedure2

c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition

Click Location & Routing(C37)Location & Routing

Click Connector(C37)Engine Compartment>Engine Wire>Power Steering ECU with Motor Assembly (Rack and Pinion Power Steering Gear Assembly)

C37-7 (PGND) - Body ground Always Below 1 Ω


Result:
Proceed to
OK
NG



Post-procedure1

d.

None



OK

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
