RM38N0EC _59 Vehicle Exterior _111846 WIPER / WASHER _0500796 WASHER NOZZLE(for Rear Side) A

WIPER / WASHER  WASHER NOZZLE(for Rear Side)  REMOVAL


PROCEDURE

Hide 85345R 2.REMOVE REAR WASHER NOZZLE

a.

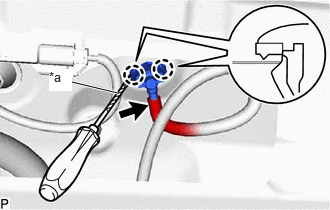

E474556C01
0.75,0.854 1.229,0.969 true 0.51,0.719 0.75,0.948 0.24,0.229 10 true *a
*a Protective Tape


Disconnect the washer hose.


b.

Using a screwdriver with its tip wrapped with protective tape, disengage the 2 claws and remove the rear washer nozzle.
