RM38N0EC _56 Audio / Visual / Telematics _111822 AUDIO / VIDEO _0500658 ROOF ANTENNA A

AUDIO / VIDEO  ROOF ANTENNA  INSTALLATION


PROCEDURE

Hide 86300J 1.INSTALL ROOF ANTENNA ASSEMBLY

a.

When reusing the roof antenna assembly:

i.

Install a new seal.



b.

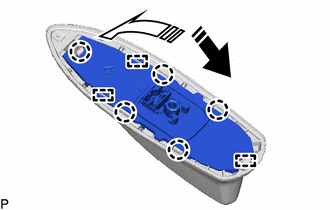

E474816
V113147

Install in this Direction (1)
V113148

Install in this Direction (2)


Engage the 3 guides and 5 claws to install the roof antenna assembly as shown in the illustration.


Hide 2.INSTALL ROOF ANTENNA ASSEMBLY WITH COVER

a.
E474814
V113147

Install in this Direction


Temporarily install the roof antenna assembly with cover as shown in the illustration.


b.
E474812
V113147

Install in this Direction


Install a new washer and holder as shown in the illustration.


c.

Install the roof antenna assembly with cover with the bolt.

Torque:
9.5 N*m (97 kgf*cm, 84 in.*lbf)


d.

Connect the connector.
