PARK ASSIST / MONITORING BLIND SPOT MONITOR SENSOR ADJUSTMENT

PROCEDURE

Hide Display 1. BSM ECU DATA SAVE

NOTICE:: ·

Confirm that communication malfunction with other parts is not detected before changing blind spot monitor sensor.

·

When the ECU data cannot be saved due to an ECU malfunction or a communication malfunction, perform the blind spot monitor beam axis confirmation.

·

In the following situations, perform blind spot monitor beam axis confirmation after the blind spot monitor sensor has been replaced with a new one.

-

When a minor collision is suspected.

-

For a vehicle that has undergone sheet metal repairs.

-

For a vehicle in which the system frequently operates inappropriately or fails to operate.

-

When a DTC for rear side radar sensor (module "B") axis misalignment (horizontal) or rear side radar sensor (module "A") axis misalignment (horizontal) has been stored.

-

When RoB code for rear side radar sensor (module "B") beam axis not adjusted or rear side radar sensor (module "A") beam axis not adjusted has been stored.

-

When RoB code for rear side radar sensor (module "B") Blockage or rear side radar sensor (module "A") Blockage has been stored.

-

When RoB code for rear side radar sensor (module "B") Blockage Level 2 or rear side radar sensor (module "A") Blockage Level 2 has been stored.

HINT:: By performing BSM "A" ECU data save or BSM "B" ECU data save, it becomes possible to save the beam axis adjustment value to the GTS.

Connect the GTS to the DLC3.

Turn the ignition switch to ON.

Enter the following menus: Body Electrical / Blind Spot Monitor "A" or Blind Spot Monitor "B" / Utility.

HINT:: The "B" is on the LH side and the "A" is on the RH side.

Body Electrical > Blind Spot Monitor "B" > Utility

Tester Display
BSM "B" ECU Data Save

50005 460 4652

Body Electrical > Blind Spot Monitor "A" > Utility

Tester Display
BSM "A" ECU Data Save

50005 461 4653

Check the results displayed for the BSM "A" ECU data save or BSM "B" ECU data save.

Hide Display 2. BSM ECU DATA WRITE

NOTICE:: ·

The value saved from the old blind spot monitor sensor RH before replacement should be written to the new blind spot monitor sensor RH.

·

The value saved from the old blind spot monitor sensor LH before replacement should be written to the new blind spot monitor sensor LH.

·

In the following situations, to prevent incorrect or unnecessary operation of the blind spot monitor sensor, do not perform the procedure to write data to the BSM ECU.

-

When the BSM data was copied from a different vehicle than the one to which BSM data will be written.

-

When the BSM ECU data saved from the old blind spot monitor sensor LH before replacement will be written to a new blind spot monitor sensor RH.

-

When the BSM ECU data saved from the old blind spot monitor sensor RH before replacement will be written to a new blind spot monitor sensor LH.

HINT:: By performing BSM "A" ECU data write or BSM "B" ECU data write, the beam axis adjustment value from the old blind spot monitor sensor before replacement can be written to the new blind spot monitor sensor.

Connect the GTS to the DLC3.

Turn the ignition switch to ON.

Enter the following menus: Body Electrical / Blind Spot Monitor "A" or Blind Spot Monitor "B" / Utility.

HINT:: The "B" is on the LH side and the "A" is on the RH side.

Body Electrical > Blind Spot Monitor "B" > Utility

Tester Display
BSM "B" ECU Data Write

50005 460 4654

Body Electrical > Blind Spot Monitor "A" > Utility

Tester Display
BSM "A" ECU Data Write

50005 461 4655

Check the results displayed for the BSM "A" ECU data write or BSM "B" ECU data write.

Hide Display 3.PERFORM BLIND SPOT MONITOR BEAM AXIS CONFIRMATION

HINT:: The blind spot monitor beam axis confirmation is performed to confirm whether the sensor beam axis is correct, and to adjust the beam axis by using a reflector.

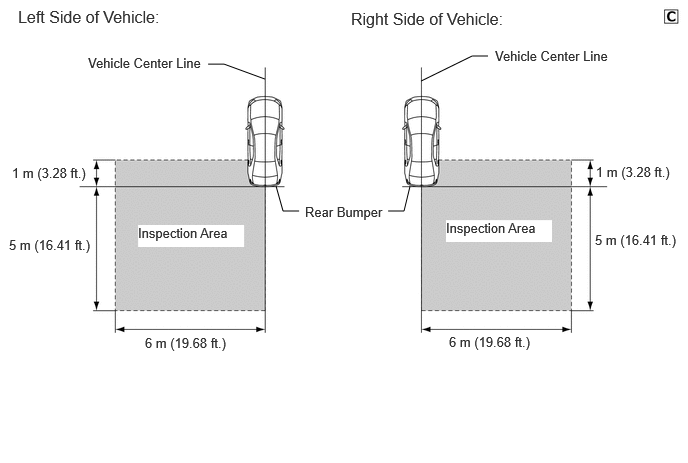

When performing the blind spot monitor beam axis confirmation, move the vehicle to a place where the space shown in the illustration can be secured.

4.385,0.844 4.917,0.583 4.917,0.583 5.083,0.583 false 2.167,0.667 2.333,0.667 2.333,0.667 2.76,0.823 false 2.875,1.938 2.948,2.198 2.948,2.198 3.115,2.198 false 4.042,2.198 4.208,2.198 4.208,2.198 4.271,1.938 false 0.188,0.073 2.094,0.427 1.906,0.354 12 false Left Side of Vehicle: 3.656,0.094 5.49,0.49 1.833,0.396 12 false Right Side of Vehicle: 0.917,0.573 2.354,0.833 1.438,0.26 10 false Vehicle Center Line 1.438,2.344 2.542,2.573 1.104,0.229 10 true Inspection Area 0.094,2.469 1.042,2.74 0.948,0.271 10 false 5 m (16.41 ft.) 3.177,2.125 4.521,2.313 1.344,0.188 10 false Rear Bumper 0.125,1.719 1.073,1.99 0.948,0.271 10 false 1 m (3.28 ft.) 1.51,3.49 2.458,3.76 0.948,0.271 10 false 6 m (19.68 ft.) 5.156,0.5 6.594,0.76 1.438,0.26 10 false Vehicle Center Line 4.646,2.292 5.75,2.521 1.104,0.229 10 true Inspection Area 6.208,1.708 7.156,1.979 0.948,0.271 10 false 1 m (3.28 ft.) 6.198,2.417 7.146,2.688 0.948,0.271 10 false 5 m (16.41 ft.) 4.677,3.479 5.625,3.75 0.948,0.271 10 false 6 m (19.68 ft.)

NOTICE:: ·

Perform this inspection on level ground.

·

Make sure that there are no metal objects around the vehicle or on the ground.

·

Unload the vehicle before beginning the inspection.

·

Confirm that the tire pressure is correct before beginning the inspection.

·

Do not place any objects other than the reflector (such as a large metallic object) in the inspection area or allow people to enter the inspection area (W 6 m [19.68 ft.] x L 6 m [19.68 ft.] x H 3 m [9.84 ft.]) shown in the illustration.

Place the reflector.

Hang a weight with a pointed tip from the center of the rear emblem, and mark the rear center point of the vehicle (point A) on the ground.

5.51,1.792 5.927,1.792 true 6.188,1.125 5.51,1.125 true 2.938,2.438 3.24,2.604 false 2.938,2.354 3.469,2.281 true 3.5,2.177 3.813,2.333 0.313,0.156 10 false *b 6.208,1.031 6.406,1.208 0.198,0.177 10 true *c 5.958,1.698 6.156,1.875 0.198,0.177 10 true *a 3.292,2.552 3.448,2.75 0.156,0.198 10 false A

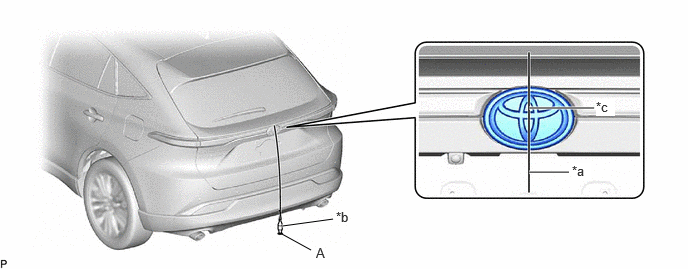

*a	String	*b	Weight
*c	Center	-	-

HINT:: Lightly flick the string with your fingers several times to confirm that the string is aligned with mark A.

ii.

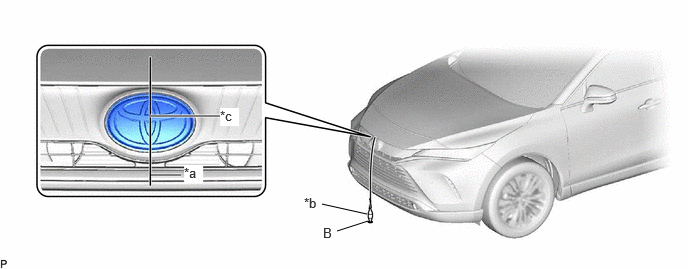

Hang a weight with a pointed tip from the center of the radiator grille (or front panel) emblem, and mark the front center point of the vehicle (point B) on the ground.

1.573,1.823 1.885,1.823 true 3.354,2.125 3.823,2.229 false 3.51,2.406 3.833,2.302 false 1.563,1.208 2.292,1.208 true 3.167,2.031 3.479,2.188 0.313,0.156 10 false *b 2.292,1.125 2.49,1.313 0.198,0.188 10 true *c 1.917,1.719 2.115,1.906 0.198,0.188 10 true *a 3.365,2.344 3.677,2.5 0.313,0.156 10 false B

*a	String	*b	Weight
*c	Center	-	-

HINT:: Lightly flick the string with your fingers several times to confirm that the string is aligned with mark B.

iii.

0.927,1.271 0.677,0.771 0.677,0.771 0.51,0.771 false 1.292,1.302 1.448,1.458 0.156,0.156 10 false A 3.052,1.302 3.208,1.458 0.156,0.156 10 false B 0.344,0.677 0.656,0.875 0.313,0.198 10 false *a

*a	Vehicle Center Line

Draw a vehicle center line so that it passes through mark A and B (front and rear center points).

iv.

Enlarge and print out the poster shown in the illustration.

5.156,3.958 4.99,3.958 4.99,3.958 4.823,4.417 false 3.594,5.396 3.427,5.396 3.427,5.396 3.135,5.75 false 3.531,3.51 3.365,3.51 3.365,3.51 3.063,3.167 false 0.167,0.156 0.479,0.354 0.313,0.198 10 false *a 2.01,4.552 2.323,4.75 0.313,0.198 10 false A 1.177,4.021 1.49,4.219 0.313,0.198 10 false *b 2.813,3.958 3.125,4.156 0.313,0.198 10 false a 2.781,4.688 3.094,4.885 0.313,0.198 10 false a 5.219,3.896 5.531,4.094 0.313,0.198 10 false *d 3.573,3.427 3.885,3.625 0.313,0.198 10 false *c 3.646,5.333 3.958,5.531 0.313,0.198 10 false *c

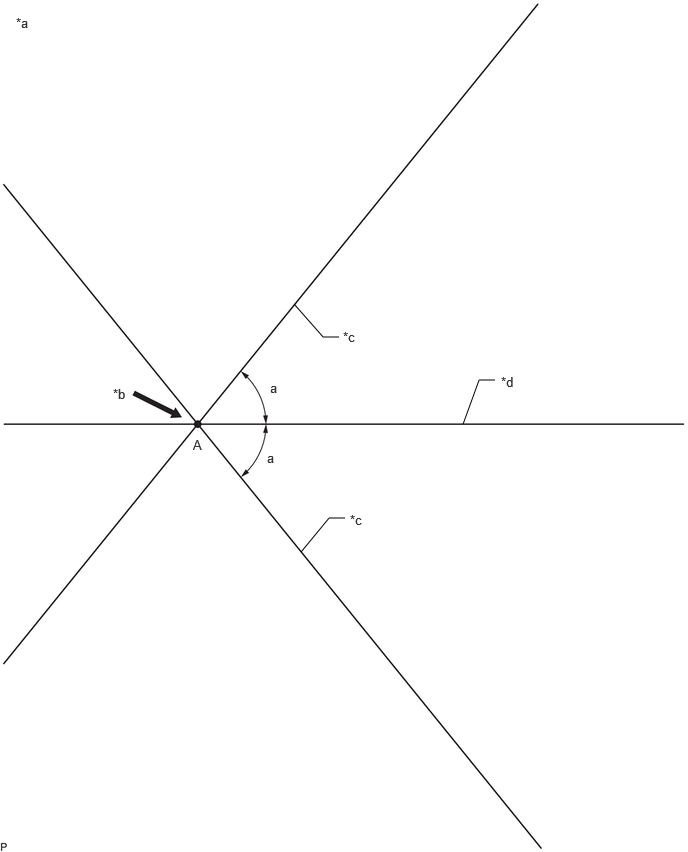

*a	Poster	*b	Edge of Rear Bumper
*c	Line C	*d	Vehicle Center Line

Standard:

Part	Angle
a	51°

0.833,1.542 1.104,1.542 1.104,1.542 1.802,1.948 true 1.833,2.906 2.354,2.906 false 2.479,2.51 2.313,2.51 2.313,2.51 2.01,2.177 false 0.688,1.458 0.844,1.656 0.156,0.198 10 false A 2.385,2.823 2.698,3.021 0.313,0.198 10 false *b 2.51,2.417 2.823,2.615 0.313,0.198 10 false *a

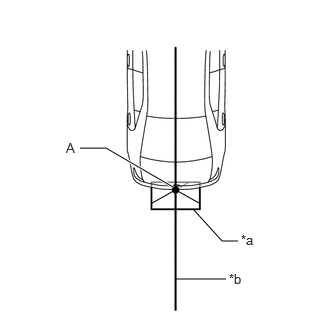

*a	Poster
*b	Vehicle Center Line

Attach the printed poster to the floor with the vehicle center line aligned with point A as shown in the illustration.

vi.

2.146,3.729 1.938,3.729 1.938,3.729 1.813,3.396 false 2.771,3.292 2.469,3.292 2.469,3.292 2.333,3.542 false 2.792,2.448 2.344,2.448 2.344,2.448 1.729,3.167 true 0.583,3.729 0.74,3.927 0.156,0.198 10 false D 2.771,3.708 2.927,3.906 0.156,0.198 10 false D 0.26,0.333 0.573,0.51 0.313,0.177 10 false *a 1.625,4.354 1.938,4.531 0.313,0.177 10 false *b 2.156,3.635 2.469,3.813 0.313,0.177 10 false *d 2.813,3.198 3.125,3.375 0.313,0.177 10 false *c 2.875,2.354 3.031,2.552 0.156,0.198 10 false A

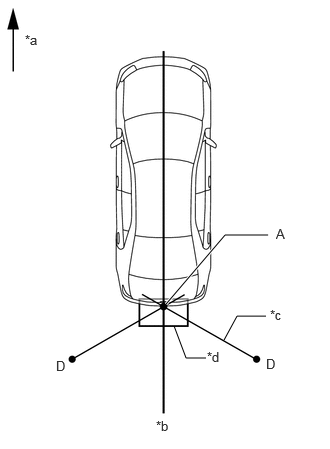

*a	Vehicle Front
*b	Vehicle Center Line
*c	String
*d	Poster

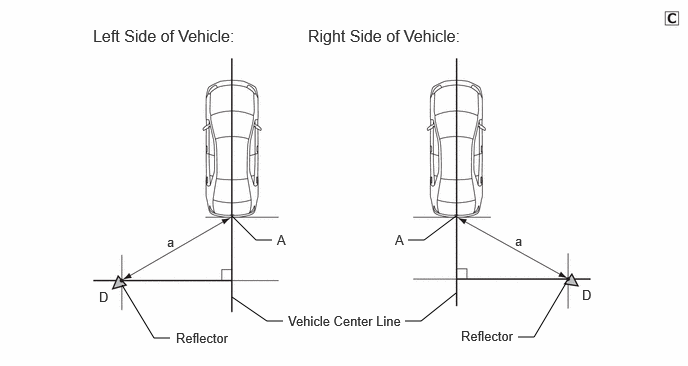

Align a piece of string with line C and mark point D at a distance of 3385 mm (11.10 ft.) from point A.

vii.

Set the reflector at the point D shown in the illustration below.

SST: 09870-60000 (09870-60010)
09870-60040

4.25,2.5 4.417,2.5 4.417,2.5 4.75,2.25 false 2.417,2.25 2.667,2.5 2.667,2.5 2.833,2.5 false 2.417,3.094 2.781,3.344 2.781,3.344 2.948,3.344 false 4.219,3.344 4.385,3.344 4.385,3.344 4.75,3.052 false 1.271,2.969 1.604,3.521 1.604,3.521 1.771,3.521 false 5.396,3.51 5.563,3.51 5.563,3.51 5.896,2.948 false 1.833,3.438 3.365,3.635 1.531,0.198 10 false Reflector 0.969,0.271 2.542,0.604 1.573,0.333 12 false Left Side of Vehicle: 3.208,0.271 4.938,0.604 1.729,0.333 12 false Right Side of Vehicle: 2.885,2.417 3.042,2.615 0.156,0.198 10 false A 4.115,2.417 4.271,2.615 0.156,0.198 10 false A 1.74,2.438 1.896,2.635 0.156,0.198 10 false a 5.365,2.427 5.521,2.625 0.156,0.198 10 false a 3,3.26 4.5,3.51 1.5,0.25 10 false Vehicle Center Line 1.031,3.01 1.188,3.208 0.156,0.198 10 false D 6.063,2.99 6.219,3.188 0.156,0.198 10 false D 4.802,3.417 6.333,3.615 1.531,0.198 10 false Reflector

Standard:

Part	Length
a	3385 mm (11.10 ft.)

NOTICE:

1.469,0.667 1.979,0.667 1.979,0.667 1.625,1.177 false 2.031,0.594 2.344,0.792 0.313,0.198 10 false *a 0.604,1.563 0.917,1.76 0.313,0.198 10 false *b

*a	SST (reflector)
*b	755.5 mm (2.48 ft.)

Set the reflector so that its center is 755.5 mm (2.48 ft.) above the ground.

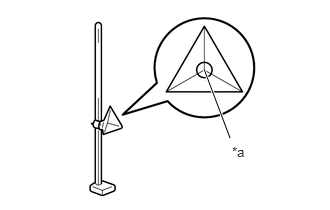

2.125,0.719 2.396,1.438 true 2.417,1.5 2.74,1.729 0.323,0.229 10 false *a

*a	Center of Triangular Pyramid

The center of the triangular pyramid is the reference point for the setting position and angle.

Set the reflector as shown in the illustration so that the center of the triangular pyramid faces the blind spot monitor sensor.

Perform the blind spot monitor beam axis display.

Connect the GTS to the DLC3.

ii.

Turn the ignition switch to ON.

iii.

Turn the blind spot monitor system on.

iv.

Turn the GTS on.

Enter the following menus: Body Electrical / Blind Spot Monitor "B" or Blind Spot Monitor "A" / Utility / BSM "B" Beam Axis Display or BSM "A" Beam Axis Display.

HINT:: The "B" is on the LH side and the "A" is on the RH side.

Body Electrical > Blind Spot Monitor "B" > Utility

Tester Display
BSM "B" Beam Axis Display

50005 460 4608

Body Electrical > Blind Spot Monitor "A" > Utility

Tester Display
BSM "A" Beam Axis Display

50005 461 4609

vi.

Check the results displayed for the BSM beam axis display.

Allowable Range:

Item	Blind Spot Monitor Sensor LH	Blind Spot Monitor Sensor RH
Angle	-3.6 to +3.6°	-3.6 to +3.6°

HINT:

If the displayed results are outside the permissible range, the following are possible causes. Therefore, implement countermeasures, check the blind spot monitor beam axis and perform the procedure again.

Possible Causes	Countermeasure
Incorrect SST (reflector) position	Check the position of SST (reflector) and checking space and perform the procedure again
A metallic object is located in the vicinity of the checking space	Check the position of SST (reflector) and checking space and perform the procedure again
The blind spot monitor sensor installation is abnormal	Check the installation condition of the blind spot monitor sensor

Perform the blind spot monitor beam axis adjustment.

Enter the following menus: Body Electrical / Blind Spot Monitor "B" or Blind Spot Monitor "A" / Utility / BSM "B" Beam Axis Adjustment or BSM "A" Beam Axis Adjustment.

Body Electrical > Blind Spot Monitor "B" > Utility

Tester Display
BSM "B" Beam Axis Adjustment

50005 460 4606

Body Electrical > Blind Spot Monitor "A" > Utility

Tester Display
BSM "A" Beam Axis Adjustment

50005 461 4607

HINT:: When values on the axis display are in the allowable range, performing this adjustment compensates for any deviation from the normal value.

Hide Display 4.PERFORM BLIND SPOT MONITOR SENSOR INSTALLATION CONDITION INSPECTION

NOTICE:: ·

Perform this inspection on level ground.

·

Unload the vehicle before beginning the inspection.

·

Confirm that the tire pressure is correct before beginning the inspection.

HINT:: The blind spot monitor sensor installation condition inspection is performed to confirm whether the sensor is perpendicular to the floor surface (+/- 2.2°) by using a digital angle gauge, and that the sensor is 46 to 54° from the line parallel to the vehicle center line.

Remove the rear bumper assembly.

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>REAR BUMPER>REMOVAL202111,202203,_59,_111849,_0500096,RM100000001Z1C6,202203,202303,_59,_111849,_0500096,RM10000000226G5,202303,202406,_59,_111849,_0500096,RM100000002AYNM,202406,999999,_59,_111849,_0500096,RM100000002MPZ3,

Place the digital angle gauge on a level (gradient within 1%) and perform zero-point adjustment as shown in the illustration.

0.958,1.063 1.125,1.063 1.125,1.063 1.708,1.396 true 0.958,1.781 1.125,1.781 1.125,1.781 1.708,1.531 true 5.75,0.5 5.583,0.5 5.583,0.5 5.292,1.042 true 4.708,0.49 4.875,0.49 4.875,0.49 5.146,1.042 true 1.969,2.396 2.146,2.604 0.177,0.208 10 false *c 5.073,2.135 5.313,2.344 0.24,0.208 10 false *d 0.771,0.958 1.229,1.156 0.458,0.198 10 false *a 0.792,1.688 1.25,1.885 0.458,0.198 10 false *b 4.531,0.396 4.99,0.594 0.458,0.198 10 false *b 5.802,0.406 6.26,0.604 0.458,0.198 10 false *a

*a	(+)	*b	(-)
*c	When Storing Zero Point	*d	After Storing Zero Point, Indicates 90° When Fully Horizontal

2.26,1.667 2.656,1.667 true 0.688,1.76 1.271,1.76 true 2.167,2.667 1.75,2.083 true 2.677,1.563 2.896,1.76 0.219,0.198 10 true *1 0.427,1.635 0.688,1.844 0.26,0.208 10 true *a 2.135,2.688 2.385,2.875 0.25,0.188 10 true *b

*1	Blind Spot Monitor Sensor
*a	Digital Angle Gauge
*b	Outward Facing Surface

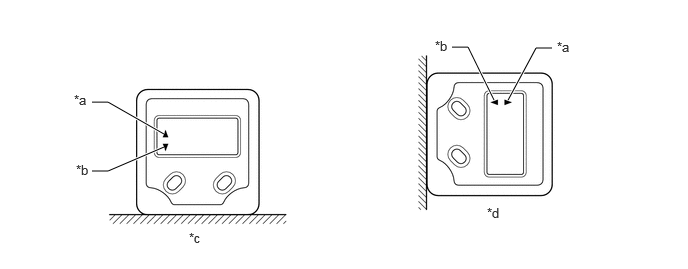

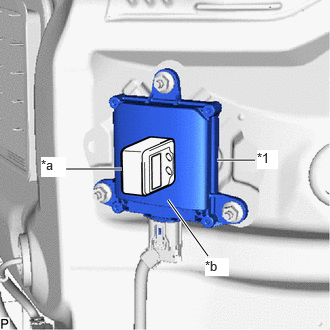

Set the digital angle gauge to the outward facing surface of the blind spot monitor sensor as shown in the illustration, and check that the perpendicular angle of the blind spot monitor sensor is within the permissible range.

NOTICE:

2.479,1.229 2.667,1.01 2.667,1.01 2.833,1.01 false 1.313,0.74 1.573,0.333 1.573,0.333 1.729,0.333 false 0.573,1.813 0.698,1.813 0.698,1.813 0.938,1.583 true 2.24,0.771 2.625,0.969 0.385,0.198 10 false *a 2.26,1.531 2.646,1.729 0.385,0.198 10 false *b 2.865,0.927 3.156,1.125 0.292,0.198 10 false *c 1.76,0.25 2.135,0.469 0.375,0.219 10 false *d 0.396,1.729 0.781,1.99 0.385,0.26 10 false *e

*a	(+)
*b	(-)

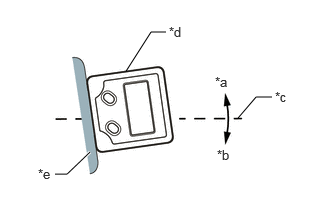

*c	Horizontal Line
*d	Digital Angle Gauge
*e	Outward Facing Surface

The sensor angle is the measured sensor angle subtracted from 90°.

HINT:: ·

The digital angle gauge should indicate 90° when turned on its side.

·

The outward facing surface (installation angle) is positive (+) when it faces higher than horizontal.

Standard:

Item	Allowable Range
Blind Spot Monitor Sensor LH	+2.2 to -2.2°
Blind Spot Monitor Sensor RH	+2.2 to -2.2°

0.208,2.323 0.344,2.323 0.344,2.323 0.5,2.458 false 1.854,3.167 2.063,3.333 2.063,3.333 2.198,3.333 false 1.583,3.375 1.75,3.563 1.75,3.563 1.885,3.563 false 0.76,2.271 0.969,2.438 0.969,2.438 1.104,2.438 false 0.094,0.083 0.406,0.323 0.313,0.24 12 false *A 1.635,2.083 1.823,2.26 0.188,0.177 10 true a 1.802,4.125 2.115,4.281 0.313,0.156 10 false *b 1.125,2.365 1.438,2.521 0.313,0.156 10 false *d 0.052,2.24 0.365,2.396 0.313,0.156 10 false *e 1.104,3.26 1.365,3.49 0.26,0.229 10 false y 0.438,1.365 0.75,1.521 0.313,0.156 10 false A 1.802,0.521 2.073,0.708 0.271,0.188 10 false *a 0.542,0.667 0.854,0.823 0.313,0.156 10 false *f 3.104,0.656 3.354,0.833 0.25,0.177 10 false *c 1.917,3.479 2.208,3.656 0.292,0.177 10 false *e 2.24,3.25 2.552,3.406 0.313,0.156 10 false *d

*A	Vehicle Rear (LH)
*a	Vehicle Front
*b	Vehicle Rear
*c	Vehicle Center Line
*d	Stud Bolt
*e	Stud Bolt Center Line
*f	Line Parallel to Vehicle Center Line

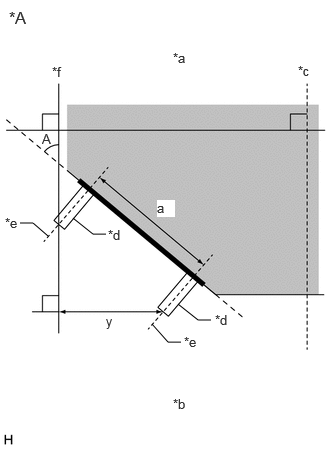

Using the sensor installation stud bolt center lines as a reference, check that the stud bolts are as shown in the illustration.

Standard:

Dimension	Specified Value
a	108 mm (4.25 in.)
y	78 to 87 mm (3.07 to 3.43 in.)

Degree	Specified Value
A	46 to 54°

HINT:: If the results are not as specified, it is possible that the blind spot monitor sensor installation area (frame, stud bolt) is deformed, so make corrections as necessary.
