RM38N0EC _56 Audio / Visual / Telematics _111823 NAVIGATION / MULTI INFO DISPLAY _0500516 NAVIGATION ANTENNA A

NAVIGATION / MULTI INFO DISPLAY NAVIGATION ANTENNA INSTALLATION

PROCEDURE

Hide Display 86862 1.INSTALL NAVIGATION ANTENNA BRACKET

Hide Display 86860 2.INSTALL NAVIGATION ANTENNA ASSEMBLY

a.

E474857C01

0,0 0,0 false

V113147

Install in this Direction

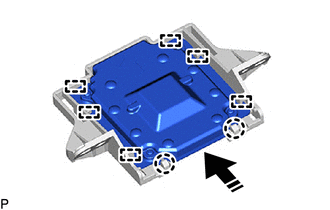

Engage the 6 guides and 2 claws to install the navigation antenna assembly as shown in the illustration.

Hide Display 3.INSTALL NAVIGATION ANTENNA ASSEMBLY WITH BRACKET

a.

Engage the 2 guides.

b.

Install the navigation antenna assembly with bracket with the 2 screws.

c.

Engage the 2 claws.

d.

Connect the connector.

Hide Display 55950G 4.INSTALL DEFROSTER NOZZLE ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>REASSEMBLY202111,202203,_58,_111843,_0501135,RM100000001Z52Y_01_0033,202203,999999,_58,_111843,_0501135,RM10000000226IQ_01_0033,

Hide Display 5.INSTALL INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION202111,202203,_58,_111843,_0501135,RM100000001Z52Z,202203,202303,_58,_111843,_0501135,RM10000000226IU,202303,999999,_58,_111843,_0501135,RM100000002BEWI,
