WIPER / WASHER  REAR WIPER MOTOR  INSTALLATION

1.438,0.906 1.708,1.229 1.708,1.229 2.021,0.927 true 1.646,1.25 1.958,1.448 0.313,0.198 10 false *a

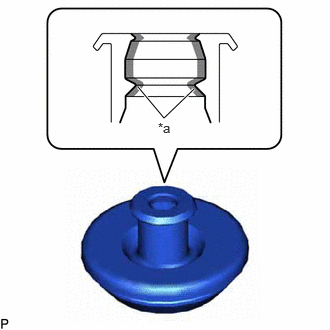

*a	Rear Wiper Motor Grommet Lip

Apply MP grease to the entire surface of the rear wiper motor grommet lip.

HINT:

Make sure that the hole does not get clogged with grease and the grooves on the lip are filled with grease.

1.729,0.677 2.115,0.417 true 2.156,0.313 2.469,0.51 0.313,0.198 10 true *a

*a	Alignment Mark

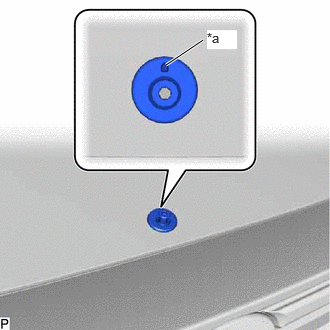

Install the rear wiper motor grommet as shown in the illustration.

HINT:

Install the rear wiper motor grommet with its alignment mark facing up.

When reusing the rear wiper arm and blade assembly:

i.

0.896,0.771 1.563,1.198 true 0.729,0.677 1.042,0.833 0.313,0.156 10 false *a

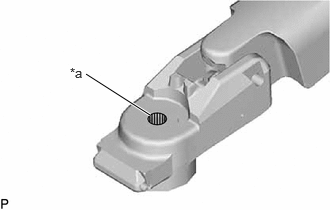

*a

Serration

Clean the wiper arm serrations to remove any burrs, dirt, etc.

NOTICE:

Do not grind down the wiper arm serrations.

When reusing the rear wiper motor assembly:

i.

1.792,0.708 2.281,0.979 true 2.313,0.917 2.625,1.073 0.313,0.156 10 false *a

*a

Serration

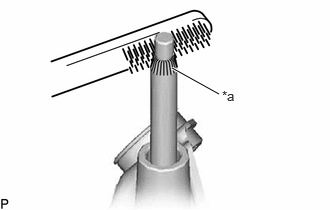

Clean the wiper pivot serrations with a wire brush.

NOTICE:

Do not grind down the wiper pivot serrations.

1.406,2.781 1.656,3.031 true 0.927,2.417 1.042,2.594 0.115,0.177 10 true A 1.771,2.99 1.969,3.167 0.198,0.177 10 true *a 0.896,2.833 1.021,3 0.125,0.167 10 true A

*a	Alignment Mark

Install the rear wiper arm and blade assembly with the nut to the position shown in the illustration.

Torque:

5.5 N*m (56 kgf*cm, 49 in.*lbf)

HINT:

Hold the wiper arm by hand while tightening the nut.

Reference Measurement:

Area	Measurement
A	10 mm (0.394 in.)

0,0 0,0 false

Install in this Direction

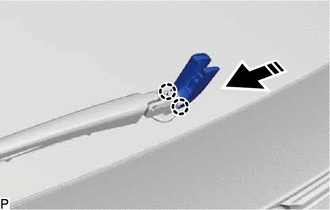

Engage the 2 claws to temporarily install the rear wiper arm head cap as shown in the illustration.

0,0 0,0 false

Install in this Direction

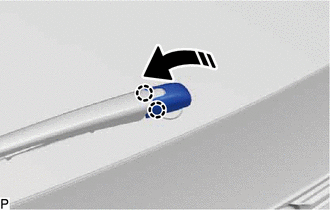

Close the rear wiper arm head cap to engage the 2 claws to install it.
