RM38N0EC _59 Vehicle Exterior _111846 WIPER / WASHER _0500790 REAR WIPER MOTOR A

WIPER / WASHER REAR WIPER MOTOR REMOVAL

PROCEDURE

Hide Display 67939B 1.REMOVE BACK DOOR CENTER GARNISH

Click hereVehicle Exterior>DOOR / HATCH>BACK DOOR>DISASSEMBLY202111,202203,_59,_111831,_0501461,RM100000001Z664_01_0224,202203,202406,_59,_111831,_0501461,RM1000000022E7D_01_0224,202406,202409,_59,_111831,_0501461,RM100000002MT8U_01_0224,202409,999999,_59,_111831,_0501461,RM100000002OO33_01_0224,

Hide Display 67938A 2.REMOVE BACK DOOR SIDE GARNISH LH

Click hereVehicle Exterior>DOOR / HATCH>BACK DOOR>DISASSEMBLY202111,202203,_59,_111831,_0501461,RM100000001Z664_01_0227,202203,202406,_59,_111831,_0501461,RM1000000022E7D_01_0227,202406,202409,_59,_111831,_0501461,RM100000002MT8U_01_0227,202409,999999,_59,_111831,_0501461,RM100000002OO33_01_0227,

Hide Display 67937B 3.REMOVE BACK DOOR SIDE GARNISH RH

HINT:: Use the same procedure as for the LH side.

Hide Display 74811D 4.REMOVE DOOR PULL HANDLE LH (w/o Power Back Door)

Click hereVehicle Exterior>DOOR / HATCH>BACK DOOR>DISASSEMBLY202111,202203,_59,_111831,_0501461,RM100000001Z664_01_0257,202203,202406,_59,_111831,_0501461,RM1000000022E7D_01_0257,202406,202409,_59,_111831,_0501461,RM100000002MT8U_01_0257,202409,999999,_59,_111831,_0501461,RM100000002OO33_01_0257,

Hide Display 74811D 5.REMOVE DOOR PULL HANDLE RH (w/o Power Back Door)

Click hereVehicle Exterior>DOOR / HATCH>BACK DOOR>DISASSEMBLY202111,202203,_59,_111831,_0501461,RM100000001Z664_01_0256,202203,202406,_59,_111831,_0501461,RM1000000022E7D_01_0256,202406,202409,_59,_111831,_0501461,RM100000002MT8U_01_0256,202409,999999,_59,_111831,_0501461,RM100000002OO33_01_0257,

Hide Display 64785A 6.REMOVE BACK DOOR TRIM BASE (w/ Power Back Door)

Click hereVehicle Exterior>DOOR / HATCH>BACK DOOR>DISASSEMBLY202111,202203,_59,_111831,_0501461,RM100000001Z664_01_0215,202203,202406,_59,_111831,_0501461,RM1000000022E7D_01_0215,202406,202409,_59,_111831,_0501461,RM100000002MT8U_01_0215,202409,999999,_59,_111831,_0501461,RM100000002OO33_01_0215,

Hide Display 74811D 7.REMOVE DOOR PULL HANDLE (w/ Power Back Door)

Click hereVehicle Exterior>DOOR / HATCH>BACK DOOR>DISASSEMBLY202111,202203,_59,_111831,_0501461,RM100000001Z664_01_0216,202203,202406,_59,_111831,_0501461,RM1000000022E7D_01_0216,202406,202409,_59,_111831,_0501461,RM100000002MT8U_01_0216,202409,999999,_59,_111831,_0501461,RM100000002OO33_01_0216,

Hide Display 67750 8.REMOVE BACK DOOR TRIM BOARD ASSEMBLY

Click hereVehicle Exterior>DOOR / HATCH>BACK DOOR>DISASSEMBLY202111,202203,_59,_111831,_0501461,RM100000001Z664_01_0222,202203,202406,_59,_111831,_0501461,RM1000000022E7D_01_0222,202406,202409,_59,_111831,_0501461,RM100000002MT8U_01_0222,202409,999999,_59,_111831,_0501461,RM100000002OO33_01_0222,

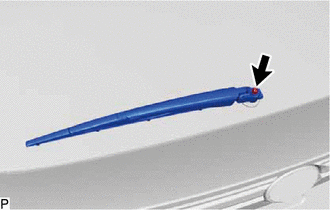

Hide Display 85292A 9.REMOVE REAR WIPER ARM HEAD CAP

0,0 0,0 false

Remove in this Direction

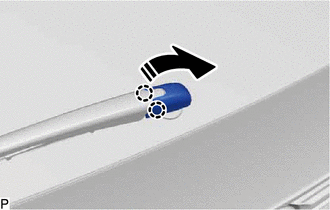

Disengage the 2 claws and open the rear wiper arm head cap as shown in the illustration.

0,0 0,0 false

Remove in this Direction

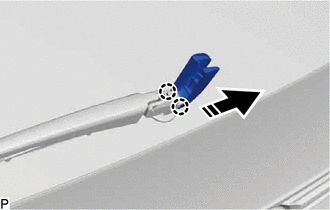

Disengage the 2 claws to remove the rear wiper arm head cap as shown in the illustration.

Hide Display 10.REMOVE REAR WIPER ARM AND BLADE ASSEMBLY

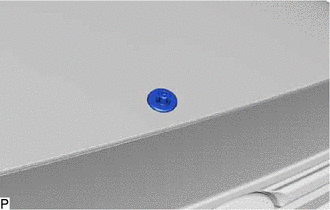

Remove the nut and rear wiper arm and blade assembly.

Hide Display 85110R 11.REMOVE REAR WIPER MOTOR ASSEMBLY

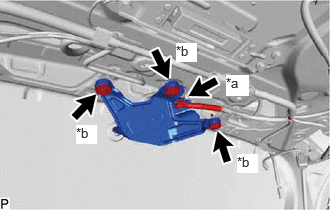

2.354,0.781 2.594,1 0.24,0.219 10 true *a 0.792,1.302 1.01,1.5 0.219,0.198 10 true *b 1.833,0.448 2.052,0.646 0.219,0.198 10 true *b 2.469,1.604 2.688,1.802 0.219,0.198 10 true *b

*a	Connector
*b	Bolt

Disconnect the connector.

Remove the 3 bolts and rear wiper motor assembly.

NOTICE:: Be careful not to scratch the back door glass.

Hide Display 85143R 12.REMOVE REAR WIPER MOTOR GROMMET

Remove the rear wiper motor grommet.
