POWER DISTRIBUTION  MAIN BODY ECU  INSTALLATION

1.802,1.229 2.427,0.688 true 0.188,1.958 0.5,2.115 0.313,0.156 10 false *a 2.469,0.604 2.781,0.76 0.313,0.156 10 false *b

*a	20°or more
*b	Housing Sidewall
	Set in this Direction

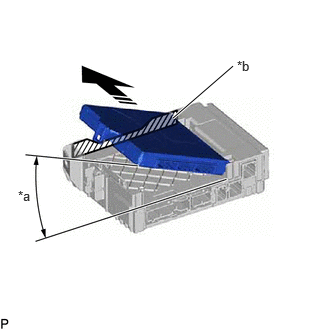

Set the main body ECU (multiplex network body ECU) to the position where the guide of the main body ECU (multiplex network body ECU) contacts the housing sidewall of the power distribution box assembly as shown in the illustration.

HINT:

Make sure to keep the angle at 20° or more as shown in the illustration.

1.344,1.427 1.688,0.76 true 1.74,0.688 2.052,0.844 0.313,0.156 10 false *a

*a	Housing Sidewall
	Slide in this Direction

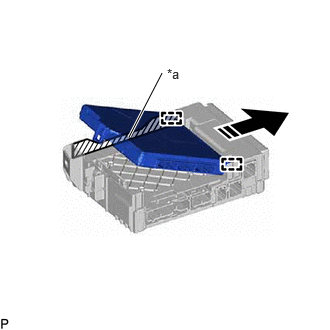

Slide the main body ECU (multiplex network body ECU) along the housing sidewall as shown in the illustration and engage the 2 guides.

2.083,0.854 2.521,0.385 true 2.542,0.271 2.854,0.427 0.313,0.156 10 false *a

*a	Side A
	Install in this Direction

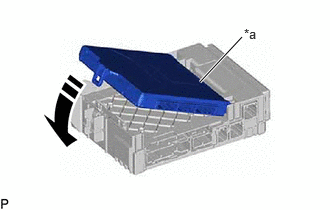

While keeping the main body ECU (multiplex network body ECU) in contact with side A of the power distribution box assembly (axis of rotation), lower it as shown in the illustration.

0.76,2.542 1.5,2.542 true 0.313,2.5 0.646,2.5 true 1.542,2.469 1.854,2.625 0.313,0.156 10 false *1 0.156,2.427 0.469,2.583 0.313,0.156 10 false *2

*1	Power Distribution Box Assembly
*2	Main Body ECU (Multiplex Network Body ECU)
	Push Area

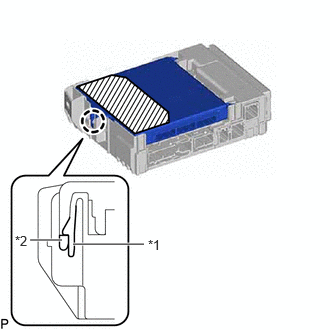

Press the push area until the claw engages to install the main body ECU (multiplex network body ECU).

NOTICE:

·

Make sure to press only the push area.

·

Confirm the engagement of the main body ECU (multiplex network body ECU) and power distribution box assembly by listening for the click sound of the lock engaging.

HINT:

If a click sound cannot be heard, visually check the engagement of the lock. The engagement can also be confirmed if the main body ECU (multiplex network body ECU) and power distribution box assembly are flush.

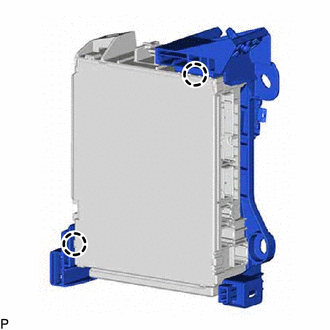

Engage the 2 claws to install the junction block bracket.

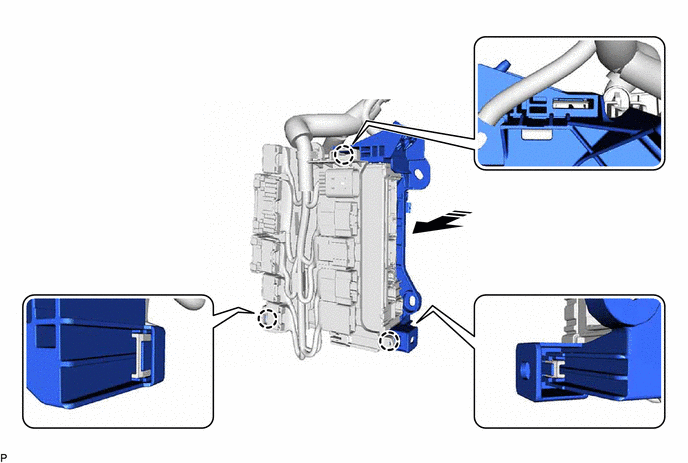

Engage the 3 claws as shown in the illustration to install the power distribution box assembly with main body ECU.

0,0 0,0 false

Install in this Direction

-

-

0,0 0,0 false

Install in this Direction

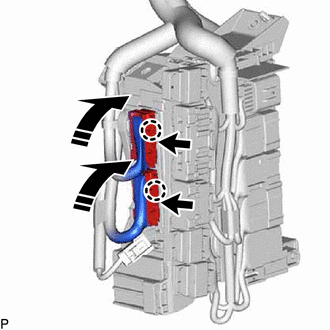

Connect the 2 connectors and push down the 2 lock levers to engage the 2 claws and lock the connector as shown in the illustration.

NOTICE:

Be sure to connect the connector securely.

0,0 0,0 false

Install in this Direction

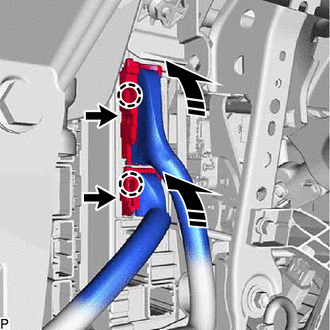

Connect the 2 connectors and raise the 2 lock levers to engage the 2 claws and lock the connector as shown in the illustration.

NOTICE:

Be sure to connect the connector securely.
