RM38N0EC _59 Vehicle Exterior _111834 LIGHTING (EXT) _0499904 HIGH MOUNTED STOP LIGHT ASSEMBLY A

LIGHTING (EXT)  HIGH MOUNTED STOP LIGHT ASSEMBLY  REMOVAL


PROCEDURE

Hide 81570 2.REMOVE CENTER STOP LIGHT ASSEMBLY (for Short Type)

a.

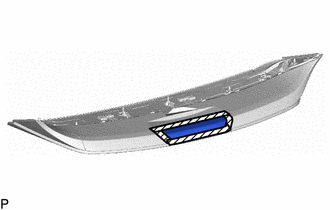

E475195C01
0,0 0,0 false
V100155

Protective Tape


Apply protective tape around the center stop light assembly as shown in the illustration.


b.

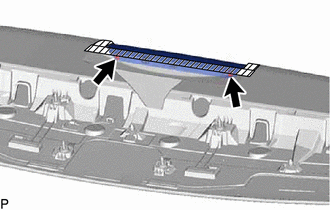

E475196

Remove the 2 screws.


c.

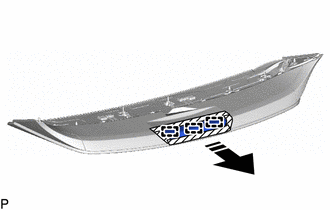

E475197C01
0,0 0,0 false
V113147

Separate in this Direction


Disengage the 3 guides to separate the center stop light assembly as shown in the illustration.


d.

Disconnect the connector to remove the center stop light assembly.


Hide 81570 3.REMOVE CENTER STOP LIGHT ASSEMBLY (for Long Type)

a.

Apply protective tape around the center stop light assembly as shown in the illustration.

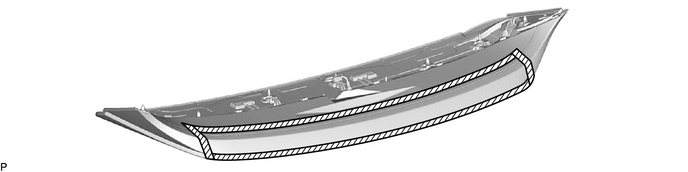

E447474C01
0,0 0,0 false
V100155

Protective Tape - -



b.

Remove the 4 screws.

E442261


c.

Disengage the 2 claws and guide to separate the center stop light assembly as shown in the illustration.

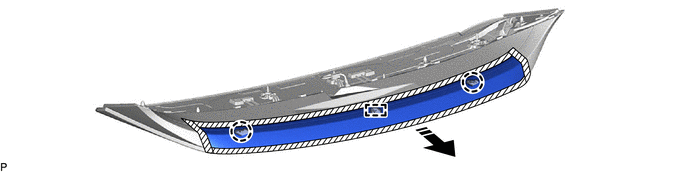

E447476C01
0,0 0,0 false
V113147

Separate in this Direction - -



d.

Disconnect the connector to remove the center stop light assembly.
