RM38N0EC _59 Vehicle Exterior _111834 LIGHTING (EXT) _0499898 SWITCH HOUSING A

LIGHTING (EXT)  SWITCH HOUSING  INSTALLATION


PROCEDURE

Hide 84319 1.INSTALL STEERING WHEEL SWITCH HOUSING

a.

When reusing the steering wheel switch housing:

i.
E447482

Using pliers, expand the clamp and temporarily install the steering wheel switch housing as shown in the illustration.

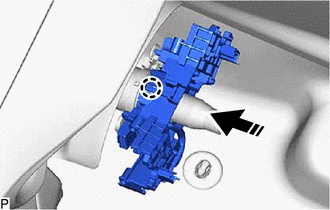

ii.
E447485C01
0,0 0,0 false
V113147

Install in this Direction


While holding the clamp expanded, engage the claw as shown in the illustration.

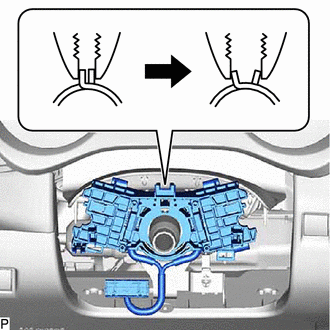

iii.
E447486

Release the clamp to install the steering wheel switch housing as shown in the illustration.



b.

When installing a new steering wheel switch housing:

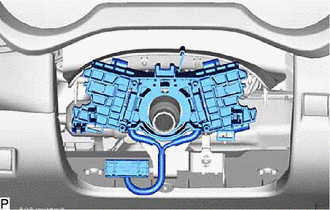

i.
E447487

Temporarily install the steering wheel switch housing.

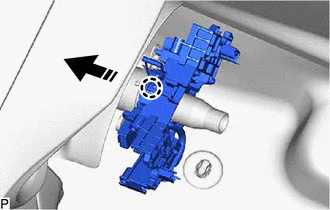

ii.
E447488C01
0,0 0,0 false
V113147

Install in this Direction


Engage the claw as shown in the illustration.

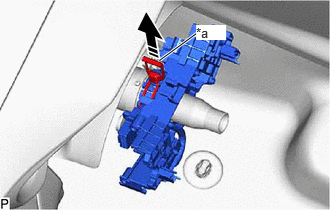

iii.
E447489C01
1.667,0.625 2.052,0.344 true 2.042,0.26 2.354,0.417 0.313,0.156 10 true *a
*a Pin
V113147

Remove in this Direction


Remove the pin to install the steering wheel switch housing as shown in the illustration.
