LIGHTING (EXT) REAR LIGHT ASSEMBLY REMOVAL

CAUTION / NOTICE / HINT

HINT:: ·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.

Hide Display 1.REMOVE BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY WITH LIGHT

Hide Display 75741E 2.REMOVE SYMBOL EMBLEM

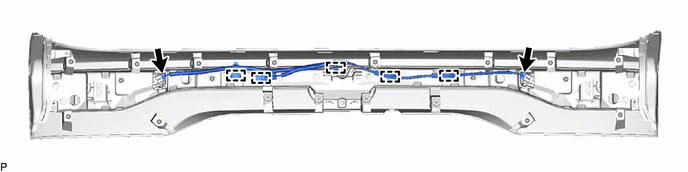

Hide Display 82225A 3.REMOVE NO. 2 LIGHT WIRE

Disconnect the 2 connectors.

Disengage the 5 clamps to remove the No. 2 rear light wire.

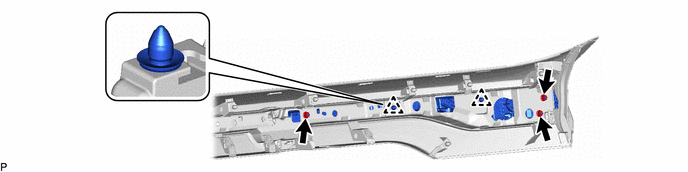

Hide Display 81590A 4.REMOVE REAR LIGHT ASSEMBLY

Remove the 3 nuts.

0,0 0,0 false

Disengage the 2 clips to remove the rear light assembly.
